Description

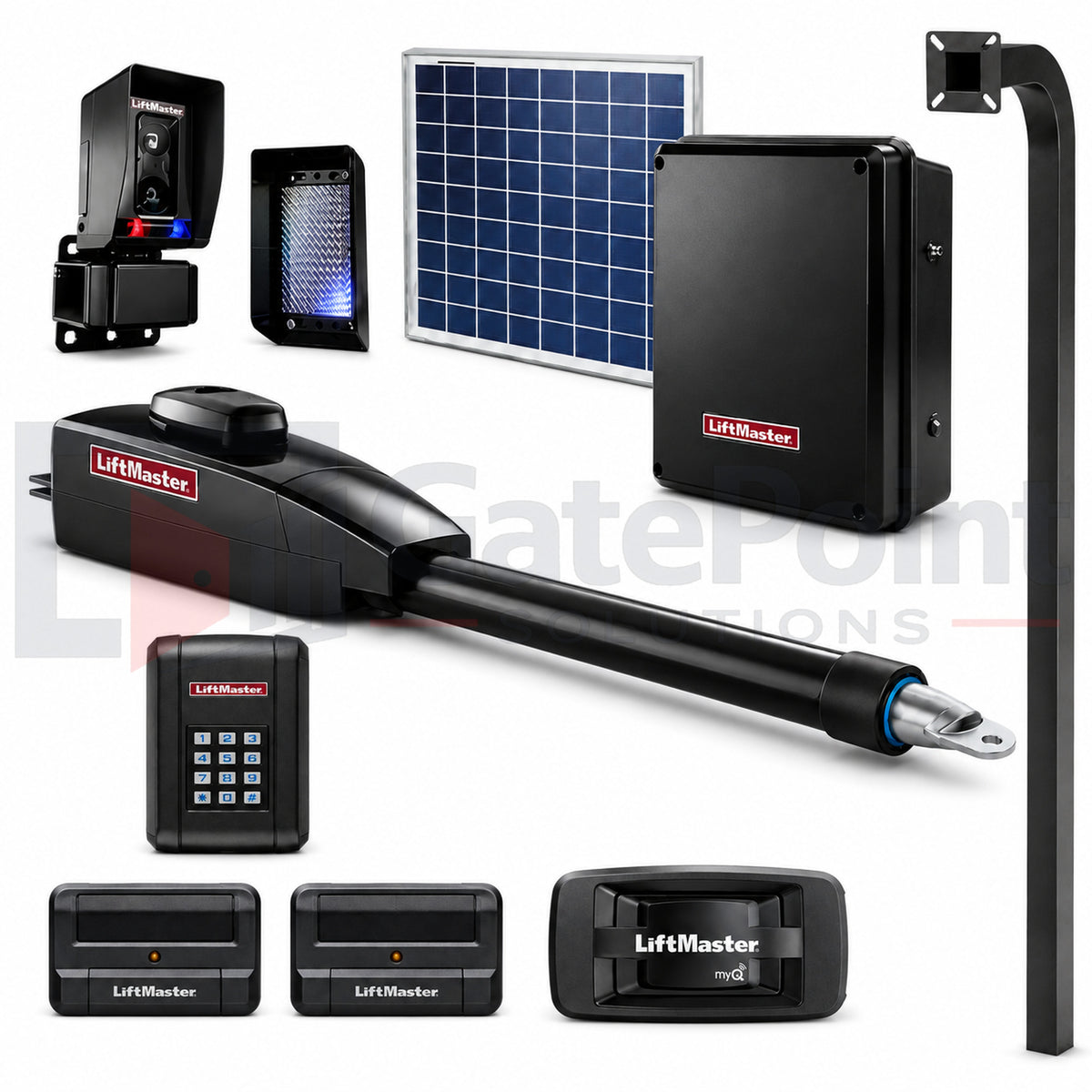

LiftMaster LA412PKGUL Single Solar Swing Gate Operator Kit with KPW5, (2) 811LMX, 828LM & 72" Pedestal
The LiftMaster LA412PKGUL Single Solar Swing Gate Operator Kit is a complete residential solar gate automation and access-control package designed for single swing gate entrances. This GatePoint Solutions kit combines the LiftMaster LA412PKGUL 12VDC solar residential linear actuator system with a LiftMaster KPW5 wireless keypad, (2) 811LMX remote controls, 828LM Internet Gateway, and GatePoint Solutions 72" in-ground gooseneck pedestal.
Built around LiftMaster's solar-focused LA412 platform, this package is an excellent solution for residential driveways, private estates, ranch entrances, rural properties, long driveways, and remote gate locations where extending conventional AC power to the entrance may be difficult or expensive.
The LA412 platform is designed for compatible residential swing gates up to 16 ft. long or 850 lbs. Its 12VDC linear actuator provides smooth, controlled gate movement, while smooth start/stop operation helps reduce abrupt movement and unnecessary stress on the gate, hinges, operator, and related hardware.
The included LiftMaster KPW5 wireless keypad provides convenient PIN-based gate access without requiring traditional control wiring between the keypad and compatible gate operator. This gives homeowners an easy way to provide gate access for family members, visitors, service providers, and other authorized users.
Two included LiftMaster 811LMX single-button remotes provide convenient wireless vehicle access, while the included 828LM Internet Gateway provides compatible network connectivity for supported LiftMaster/myQ® applications.
A GatePoint Solutions 72" in-ground gooseneck pedestal completes the access-control package by providing a professional driveway-side mounting location for the KPW5 keypad.
Together, these components create a comprehensive residential solar swing gate operator kit combining gate automation, wireless keypad entry, vehicle remotes, connectivity equipment, and a professional pedestal mounting solution in one convenient package.
What's Included
- (1) LiftMaster LA412PKGUL 12VDC Residential Solar Single Swing Gate Operator Package
- (1) LiftMaster KPW5 Wireless Keypad
- (2) LiftMaster 811LMX Single-Button Remote Controls
- (1) LiftMaster 828LM Internet Gateway
- (1) GatePoint Solutions 72" In-Ground Gooseneck Pedestal
- Battery and control components supplied with the LA412PKGUL package
- Manufacturer-supplied operator mounting hardware and components
- Manufacturer-supplied safety equipment included with the LA412PKGUL package
Important: Solar-system requirements can vary by location, available sunlight, gate usage, accessory loads, battery condition, and installation conditions. Always properly size and configure the solar charging system for the specific installation.
LiftMaster LA412PKGUL Kit Specifications
- Operator Model: LA412PKGUL
- Configuration: Single Swing Gate
- Operator Type: Residential Solar Linear Actuator
- System Voltage: 12VDC
- Application: Residential vehicular swing gates
- Power Application: Solar
- Maximum Gate Length: Up to 16 ft.
- Maximum Gate Weight: Up to 850 lbs.
- Wireless Keypad: KPW5 included
- Remote Controls: (2) 811LMX included
- Internet Gateway: 828LM included
- Pedestal: 72" in-ground gooseneck pedestal included
- Radio Technology: Security+ 2.0®
- Gate Operation: Smooth start/stop
- Obstruction Protection: Inherent reversing system
- Safety Device Support: Compatible monitored entrapment protection devices
- Manufacturer: LiftMaster
Proper gate construction, hinge condition, installation geometry, wind loading, hardware, solar exposure, expected daily cycles, accessory power consumption, and other site conditions should be evaluated when designing a solar gate operator system.
Why Choose This LiftMaster LA412PKGUL Solar Gate Operator Kit?
This GatePoint Solutions package is designed for customers who want more than just a basic solar gate operator.
Instead of purchasing the operator, wireless keypad, remotes, connectivity equipment, and pedestal separately, this kit combines the major gate automation and access-control components into a single package centered around the LiftMaster LA412PKGUL residential solar swing gate operator.
The LA412's 12VDC solar-focused platform makes it particularly useful for entrances located far from conventional electrical service. For properties with long driveways, rural entrances, ranch gates, or other remote gate locations, solar power can eliminate or reduce the need to trench and extend AC electrical service to the gate.
Convenient PIN Access with the KPW5
The included LiftMaster KPW5 wireless keypad provides PIN-based gate access for authorized users.
Its wireless communication capability helps simplify compatible installations by reducing the need for control wiring between the keypad location and gate operator.
Mounted on the included 72" in-ground gooseneck pedestal, the KPW5 can be positioned alongside the driveway for convenient access from a vehicle.
Two 811LMX Remotes Included
The kit also includes two LiftMaster 811LMX single-button remote controls, providing convenient wireless gate access for regular vehicle users.
Additional compatible transmitters can be added separately when more users require remote access.
828LM Internet Gateway Included
The included LiftMaster 828LM Internet Gateway provides compatible network connectivity for supported LiftMaster and myQ applications.
This adds another layer of connectivity to the package while keeping the primary gate operator installation centered around the LA412 solar platform.
LiftMaster LA412PKGUL Kit Highlights
- Complete residential solar swing gate operator and access-control kit
- LiftMaster LA412PKGUL 12VDC solar operator
- Designed for single swing gate entrances
- Supports compatible gates up to 16 ft. or 850 lbs.
- Ideal for rural, remote, estate, ranch, and long-driveway applications
- KPW5 wireless keypad included
- (2) 811LMX remotes included
- 828LM Internet Gateway included
- 72" in-ground gooseneck pedestal included
- Security+ 2.0® encrypted radio technology
- Smooth start/stop gate operation
- Inherent obstruction sensing
- Compatible with monitored entrapment protection equipment
- Expandable with compatible LiftMaster access-control equipment
- Professional solar gate solution for residential properties
LiftMaster LA412PKGUL Kit Frequently Asked Questions
What comes with this LA412PKGUL solar gate operator kit?
This GatePoint Solutions kit includes the LiftMaster LA412PKGUL single solar swing gate operator package, KPW5 wireless keypad, two 811LMX remote controls, 828LM Internet Gateway, and GatePoint Solutions 72" in-ground pedestal.
It combines the primary gate automation and access-control components into one residential solar gate package.
Is this kit for a single or dual swing gate?
This particular kit is designed for a single swing gate with one gate leaf.
For an entrance with two swing gate leaves, choose the LiftMaster LA412PKGUL Dual Solar Swing Gate Operator Kit with KPW5, (2) 811LMX, 828LM & 72" Pedestal.
What size gate can the LiftMaster LA412PKGUL operate?
The LA412 platform is designed for compatible residential swing gates up to 16 ft. long or 850 lbs.
Gate construction, hinges, installation geometry, wind loading, hardware, and site conditions must also be evaluated when determining whether the LA412 is appropriate for an installation.
Is the LA412 designed specifically for solar gate applications?
Yes. The LA412 is LiftMaster's 12VDC residential solar linear actuator platform, making it particularly attractive for residential entrances being designed around solar power.
It is well suited for gates located where extending conventional electrical service may be difficult, costly, or impractical.
Does this kit include the KPW5 wireless keypad?
Yes. One LiftMaster KPW5 wireless keypad is included.
The KPW5 provides PIN-based wireless gate access for compatible LiftMaster systems and can be mounted on the included 72" pedestal.
What is the difference between the KPW5 and KPW250?
The KPW5 is intended for residential applications requiring a smaller number of keypad users.
The KPW250 provides substantially greater PIN capacity and is better suited for properties requiring access for a larger number of authorized users.
GatePoint Solutions also offers this LA412 solar gate operator kit in a KPW250 configuration.
Why are two 811LMX remotes included?
The included (2) LiftMaster 811LMX remotes provide convenient wireless gate access for regular vehicle users.
Additional compatible remotes can be purchased separately if more users require transmitter access.
What does the 828LM Internet Gateway do?
The included LiftMaster 828LM Internet Gateway provides network connectivity for supported LiftMaster equipment and compatible myQ applications.
Available functionality depends on the connected equipment, network configuration, Internet availability, and currently supported LiftMaster services.
Why include an Internet Gateway with a solar gate operator?
Solar power and Internet connectivity address two different parts of the gate system.
The LA412 solar platform provides the gate's power architecture, while the 828LM provides compatible network connectivity for supported LiftMaster applications. A property can therefore use a solar-powered gate operator while still having network connectivity available at or near the property.
What is the 72" in-ground pedestal used for?
The included GatePoint Solutions 72" in-ground gooseneck pedestal provides a dedicated mounting location for the KPW5 wireless keypad near the driveway entrance.
Its in-ground design allows the lower portion of the pedestal to be secured below grade while positioning the keypad where it can be conveniently reached from a vehicle.
Is the LA412 good for ranch and rural entrances?
Yes. The LA412 is particularly attractive for ranch entrances, rural properties, private estates, long driveways, and remote residential gates because its solar-focused architecture can reduce the need to extend conventional electrical service to the gate location.
Proper solar exposure and system sizing are still required.
How much solar capacity does an LA412 installation need?
Solar requirements vary by installation.
Important factors include geographic location, available sunlight, solar-panel orientation, gate size and weight, daily gate cycles, battery capacity, accessory loads, temperature, and shading.
The solar system should be properly sized for the actual installation rather than assuming one configuration is appropriate for every property.
Can this LA412 system be converted to a dual gate later?
A compatible LA412 system can be configured for dual swing gate operation using the appropriate LA412DCS secondary actuator and required system configuration.
Customers who already know they are automating two gate leaves should choose one of GatePoint Solutions' LA412 Dual Solar Swing Gate Operator Packages or Kits.
What's the difference between the LA412 and LA400?
The LA412 is centered around 12VDC residential solar gate applications.
The LA400PKGUL is LiftMaster's 24VDC residential linear actuator platform.
For an entrance specifically being designed around solar power, the LA412 provides the more purpose-focused option.
What's the difference between the LA412 and LA500?
The LA412 is designed primarily for residential solar swing gate applications.
The LA500 is a heavier-duty residential/light-commercial linear actuator platform intended for larger and more demanding gate applications.
Gate dimensions, weight, construction, expected cycles, wind loading, power availability, and site conditions should all be considered when selecting an operator.
Does this kit include all required safety devices?
The kit includes the components specifically listed under What's Included. Additional monitored entrapment protection devices may be required depending on the gate configuration and identified entrapment zones.
Installers should follow current LiftMaster installation instructions, applicable UL 325 requirements, local codes, and other applicable standards when designing and installing the gate system.
LiftMaster LA412 Manuals & Resources
GatePoint Solutions provides applicable LiftMaster LA412 installation manuals, wiring diagrams, product documentation, specifications, troubleshooting resources, and technical materials in the Resources section below.
Always reference current LiftMaster documentation when designing, installing, programming, servicing, or troubleshooting an automatic gate operator.
LiftMaster LA412 Replacement Parts
Need components for an existing LA412?
Shop our complete selection of LiftMaster LA412PKGU/UL Replacement Parts, including LA412DC primary actuators, LA412DCS secondary actuators, control equipment, batteries, harnesses, brackets, electrical components, enclosure components, hardware, and other service parts.
Shop LiftMaster LA412 Replacement Parts →
Related Solar Swing Gate Operators & Kits
Need a different LA412 configuration?
For an entrance with two gate leaves, choose the LiftMaster LA412PKGUL Dual Solar Swing Gate Operator Kit.
For residential properties requiring greater keypad-user capacity, choose an LA412PKGUL kit with the KPW250 wireless keypad.
For conventional 24VDC residential applications, consider the LiftMaster LA400PKGUL. For larger and more demanding residential/light-commercial gates, consider the LiftMaster LA500PKGUL.
