Description

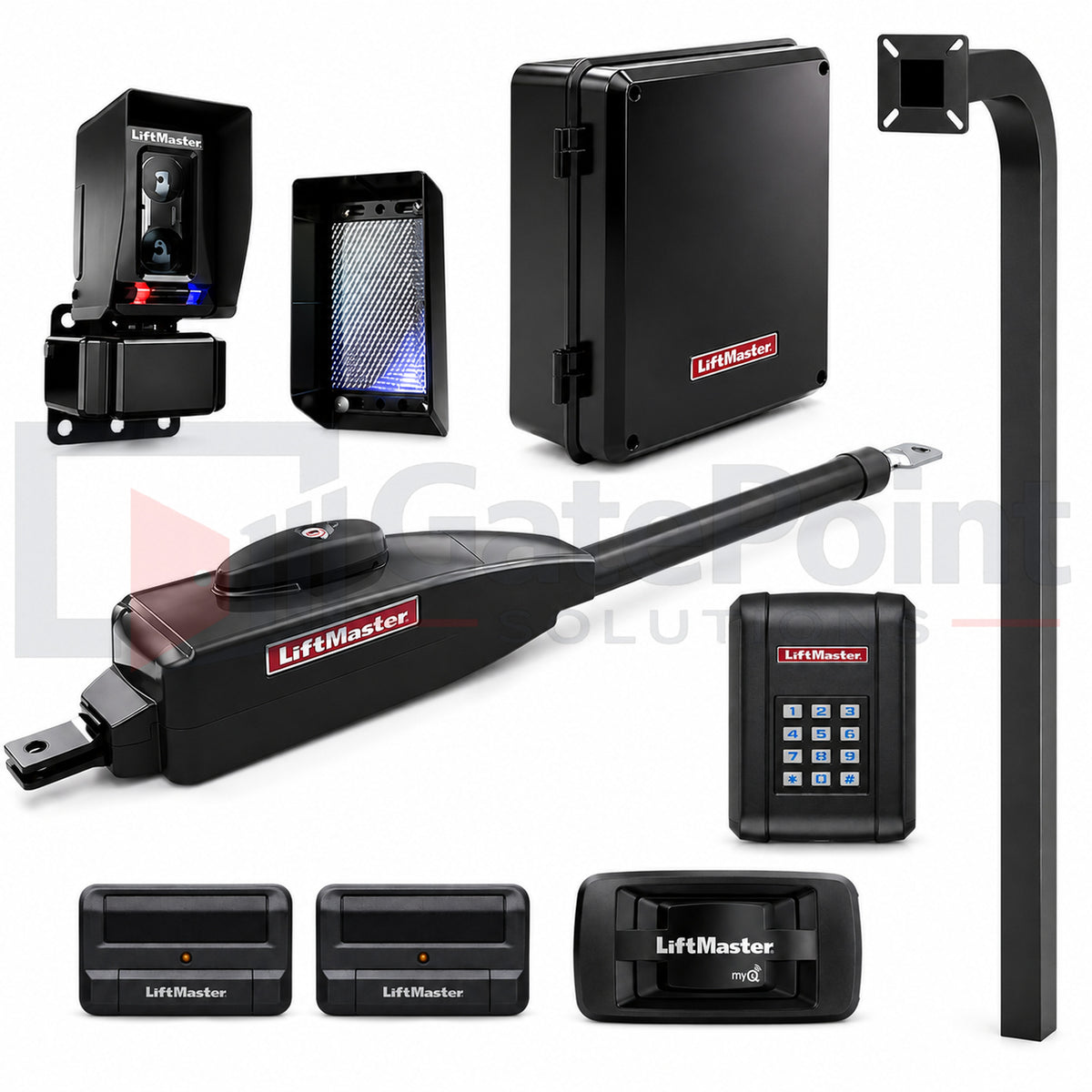

LiftMaster LA400PKGUL Single Swing Gate Operator Kit with KPW5, (2) 811LMX, 828LM & 72" Pedestal
The LiftMaster LA400PKGUL Single Swing Gate Operator Kit is a complete residential gate automation and access-control package designed for single swing gate entrances. Built around LiftMaster’s proven LA400PKGUL 24VDC linear actuator system, this GatePoint Solutions kit combines the gate operator with a LiftMaster KPW5 wireless keypad, (2) 811LMX remote controls, 828LM Internet Gateway, and GatePoint Solutions 72" in-ground gooseneck pedestal to provide a convenient all-in-one solution for residential driveway gate installations.
Designed for compatible residential swing gates up to 16 ft. long or 850 lbs., the LA400 provides smooth, controlled gate movement through its 24VDC linear actuator design. Soft start and soft stop operation helps reduce abrupt movement and unnecessary stress on the gate, hinges, and operator hardware while providing dependable everyday access.
The included LiftMaster KPW5 wireless keypad provides convenient PIN-based access without requiring control wiring between the keypad and gate operator. The included (2) LiftMaster 811LMX remotes provide wireless vehicle access, while the 828LM Internet Gateway adds compatible LiftMaster connectivity for supported myQ® applications.
For a professional entrance installation, this package also includes a GatePoint Solutions 72" in-ground gooseneck pedestal, providing a dedicated mounting location for the KPW5 keypad at the gate entrance.
Combined with the LA400's battery backup, myQ® technology, Security+ 2.0® encrypted radio technology, solar capability, monitored safety-device support, and UL 325 compliant design, this package provides a comprehensive residential swing gate automation solution for private homes, estates, ranch entrances, gated driveways, and other residential controlled-access properties.
What's Included
- (1) LiftMaster LA400PKGUL 24VDC Residential Single Swing Gate Operator Package
- (1) LiftMaster KPW5 Wireless Keypad
- (2) LiftMaster 811LMX Single-Button Remote Controls
- (1) LiftMaster 828LM Internet Gateway
- (1) GatePoint Solutions 72" In-Ground Gooseneck Pedestal
- Battery backup components supplied with the LA400PKGUL
- Manufacturer-supplied operator mounting hardware and components
LiftMaster LA400PKGUL Kit Specifications
- Operator Model: LA400PKGUL
- Configuration: Single Swing Gate
- Operator Type: Residential Linear Actuator
- Power System: 24VDC
- Application: Residential vehicular swing gates
- Maximum Gate Length: Up to 16 ft.
- Maximum Gate Weight: Up to 850 lbs.
- Battery Backup: Included
- Smart Connectivity: myQ® technology
- Radio Technology: Security+ 2.0®
- Wireless Keypad: KPW5 included
- Remote Controls: (2) 811LMX included
- Internet Gateway: 828LM included
- Pedestal: 72" in-ground gooseneck pedestal included
- Smooth Start/Stop: Yes
- Solar Capability: Yes, with compatible solar equipment
- Safety Device Support: Compatible monitored entrapment protection devices
- Manufacturer: LiftMaster
Proper gate construction, installation geometry, hinges, hardware, wind loading, and site conditions should be considered when selecting and installing an automatic swing gate operator.
Why Choose This LiftMaster LA400PKGUL Gate Operator Kit?
This GatePoint Solutions package takes the proven LiftMaster LA400PKGUL residential swing gate operator and combines it with several of the most commonly needed access-control components for a complete driveway gate solution.
Rather than purchasing the operator, keypad, remotes, Internet Gateway, and pedestal separately, this package provides the major gate automation and user-access components together in one convenient kit.
The KPW5 wireless keypad gives residents and authorized visitors PIN-based gate access, while the two included 811LMX remotes provide convenient vehicle access for regular users. The 828LM Internet Gateway expands the system's supported connectivity options, and the 72" in-ground pedestal provides a professional mounting solution for positioning the keypad near the driveway entrance.
At the center of the system is the LA400PKGUL, a 24VDC residential linear actuator platform designed for compatible swing gates up to 16 ft. or 850 lbs. Battery backup, smooth start/stop operation, myQ technology, Security+ 2.0, solar capability, and monitored safety-device support make the LA400 a strong choice for professionally installed residential gate systems.
LiftMaster LA400PKGUL Kit Highlights
- Complete single swing gate operator and access-control kit
- LiftMaster LA400PKGUL 24VDC linear actuator system
- Supports compatible residential gates up to 16 ft. or 850 lbs.
- KPW5 wireless keypad for PIN-based entry
- (2) 811LMX remotes for vehicle access
- 828LM Internet Gateway for supported connectivity
- 72" in-ground gooseneck pedestal for professional keypad mounting
- Integrated battery backup
- myQ® technology
- Security+ 2.0® encrypted radio technology
- Smooth start and soft stop operation
- Solar capable with compatible equipment
- Supports monitored entrapment protection devices
- Designed for professionally installed residential swing gate applications
LiftMaster LA400PKGUL Kit Frequently Asked Questions
What comes with this LA400PKGUL kit?
This kit includes the LiftMaster LA400PKGUL single swing gate operator package, KPW5 wireless keypad, two 811LMX remote controls, 828LM Internet Gateway, and GatePoint Solutions 72" in-ground gooseneck pedestal.
This provides the primary operator and several commonly required access-control components in one package.
Is this kit for a single or dual swing gate?
This particular kit is designed for a single swing gate with one gate leaf.
For an entrance with two swing gate leaves, choose one of GatePoint Solutions' LA400 dual swing gate operator packages or complete dual-gate kits.
What size gate can the LA400PKGUL operate?
The LiftMaster LA400 platform is designed for compatible residential swing gates up to 16 ft. long or 850 lbs.
Gate construction, installation geometry, hinge condition, wind loading, hardware, and other site conditions must also be considered when selecting an operator.
What is the KPW5 used for?
The LiftMaster KPW5 is a wireless keypad that allows authorized users to operate the gate using a programmed PIN.
Its wireless design can simplify access-control installation because communication wiring does not need to be run between the keypad and compatible gate operator.
Why does this kit include two 811LMX remotes?
The included (2) LiftMaster 811LMX single-button remotes provide convenient wireless gate access for vehicles or regular users of the property.
Additional compatible transmitters can be purchased separately when more users require remote access.
What is the 828LM Internet Gateway?
The LiftMaster 828LM Internet Gateway provides connectivity between supported LiftMaster equipment and compatible network/myQ applications.
Available functionality depends on the connected LiftMaster equipment, network configuration, and supported services.
What is the 72" in-ground pedestal for?
The included GatePoint Solutions 72" in-ground gooseneck pedestal provides a mounting location for the KPW5 wireless keypad near a driveway entrance.
Its in-ground design allows part of the pedestal to be secured below grade while positioning the keypad at an accessible height for drivers.
Does the LiftMaster LA400PKGUL have battery backup?
Yes. The LA400PKGUL uses a battery-backed 24VDC system designed to provide continued gate operation during many AC power interruptions.
Actual battery performance depends on gate size and weight, battery condition, accessory loads, temperature, usage, and other installation factors.
Can the LA400PKGUL be solar powered?
Yes. The LA400 platform supports properly configured solar-powered installations with compatible solar equipment.
For installations intended specifically around solar power, GatePoint Solutions also carries the LiftMaster LA412PKGUL residential solar swing gate operator platform.
Does this kit include required gate safety devices?
The components listed under What's Included are the components supplied with this GatePoint Solutions kit. Additional monitored entrapment protection devices may be required depending on the gate and installation.
Installers should identify all entrapment zones and follow the current LiftMaster installation manual, UL 325 requirements, and applicable codes when selecting and installing safety devices.
LiftMaster LA400 Manuals & Resources
Need installation or technical information?
GatePoint Solutions provides applicable LiftMaster LA400 installation manuals, wiring information, product documentation, troubleshooting resources, and technical materials in the Resources section below.
Always reference the current LiftMaster documentation when installing, programming, servicing, or troubleshooting an automatic gate operator.
