Description

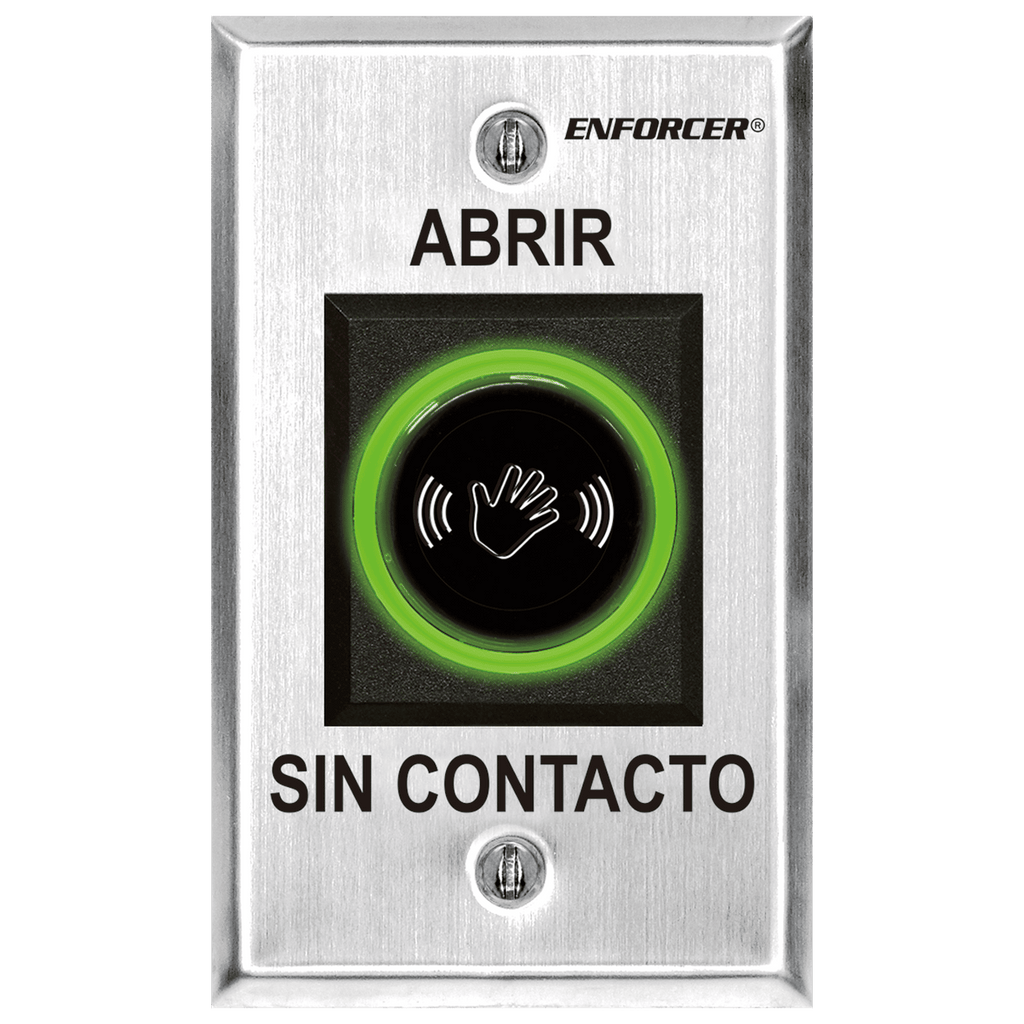

Wave-to-Open Sensor – Spanish delivers hygienic, hands-free door control for busy entrances. Designed for high-traffic spaces, it offers reliable wave activation, easy installation, and clear visual feedback to users.
- Voltage & power: Dual voltage 12–24 VAC/VDC for flexible integration with various door operators and access control systems.
- Detection range: Adjustable sensing distance from 2-3/8" to 8" (6–20 cm) to fit doorway width and user proximity needs.
- Mounting & finish: Stainless steel single-gang plate for a professional, durable install in commercial environments.
- Relay output: 3A relay suitable to drive door operators, strikes, or access control devices.
- Timing & sensing mode: Activation time adjustable from 0.5 to 30 seconds, toggle mode, or continuous while a hand remains near the sensor.
- Installation: Quick-connect screw-less terminal block for fast, secure wiring and simplified servicing.
- Indicator: LED-illuminated sensor area to help users locate the device in low light.
- LED color options: Selectable LED colors (red to green or green to red) when activated to provide immediate, intuitive feedback.
- Certifications: ETL-listed and compliant with UL 294 for safe, reliable door control in security-critical environments.
This Wave-to-Open Sensor is ideal for offices, hospitals, retail entrances, and any facility prioritizing touchless access and hygiene. With easy wiring, a sturdy stainless steel face, and customizable LED feedback, it clearly signals when the door is ready to operate. The dual-voltage design ensures compatibility with a wide range of door operators, while the adjustable range and hold-time tailor the experience to your doorway and foot traffic. Use cases span ADA-compliant entrances, clean-room access points, and areas where reducing contact with door surfaces is a priority.
