Description

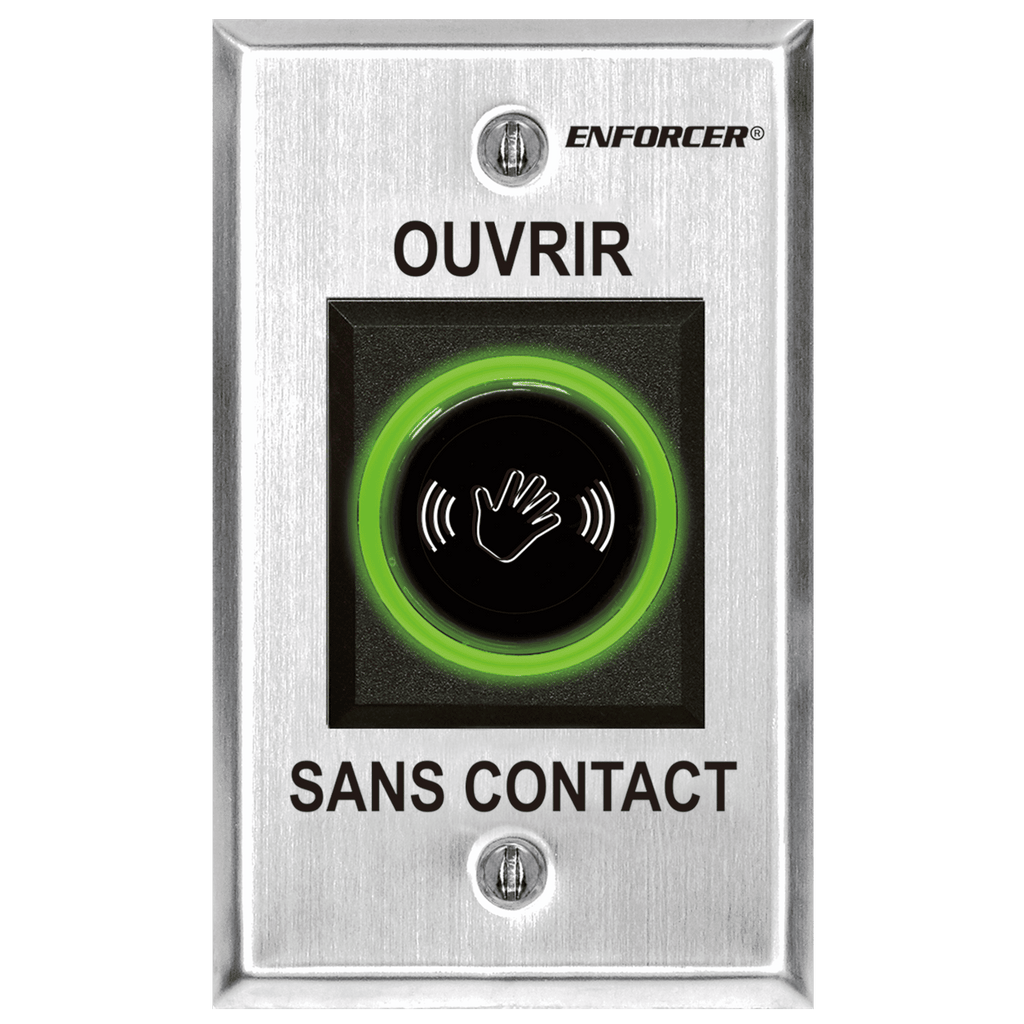

The Wave-To-Open Sensor – French is a hands-free access sensor built for secure, touchless entry in commercial environments. This device activates a door release or related action with a simple wave, reducing contact and improving traffic flow for high-traffic entrances.
- Unit specs: 12-24 VAC/VDC dual voltage; sensing range adjustable from 2-3/8" to 8" (6–20 cm); stainless steel single-gang plate; 3A relay; adjustable timing from 0.5 to 30 seconds; proximity activation with hand presence; LED color-selectable; quick-connect screw-less terminal block; ETL-listed and UL 294 compliant.
- Voltage range: Dual voltage operation supports 12-24 VAC or VDC systems for flexible installations.
- Sensing range: Adjustable detection distance from 2-3/8" up to 8" to fit door widths and foot traffic.
- Material & finish: Durable stainless steel single-gang plate delivers a clean, professional look in commercial spaces.
- Relay & timing: 3A relay with adjustable activation duration from 0.5 to 30 seconds, or continuous activation while a hand is detected.
- Activation method: Non-contact wave sensing provides hygienic, hands-free operation.
- LED indicators: Illuminated sensor area with selectable LED colors that switch from red to green (or green to red) when activated for clear status feedback.
- Wiring: Quick-connect screw-less terminal block simplifies installation and reduces wiring time.
- Compliance: ETL-listed and UL 294 compliant for secure, reliable access control installations.
With the Wave-To-Open Sensor, facilities gain a hygienic, efficient method to manage entry without touching surfaces. The adjustable sensing range and timing accommodate various door types and traffic patterns, making it suitable for lobbies, offices, healthcare settings, retail entrances, and other high-traffic areas. The stainless steel faceplate ensures durability in demanding environments, while the quick-connect terminals speed up wiring and reduce installation complexity. LED color indicators provide immediate visual feedback during setup and operation, and UL 294 along with ETL listing offer added assurance for security-focused installations.
