Description

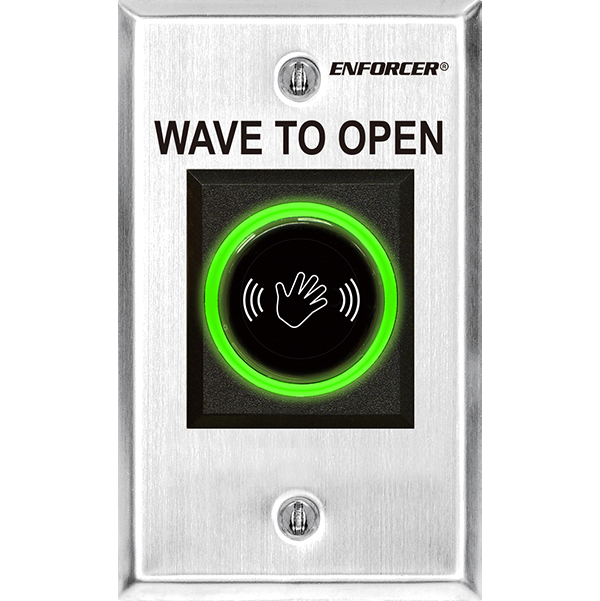

The ENFORCER Wave-To-Open Sensor delivers hands-free egress for secure spaces, ideal for environments where hygiene and quick access matter. Use IR sensing to request entry or trigger a device with a simple wave of the hand—no touch required.
- Technology & Sensing: IR-based Wave-To-Open operation that requires no physical contact, ideal for cleanrooms, hospitals, clinics, and offices.
- Range & Adaptability: Sensing range adjustable from 2-3/8" to 8" (6–20 cm) to fit door frames and high-traffic areas.
- Activation & Timing: 3A relay with adjustable timing options from 0.5 to 30 seconds, toggle, or continuous until hand is removed from the sensor area.
- Design & Compliance: Stainless steel single-gang plate; ETL listed; conforms to UL Std. 294 for secure, standards-based installation.
- Indicators & Customization: LED-illuminated sensing area with selectable LED colors (red↔green or green↔red) to convey status at a glance; quick-connect screw-less terminal block for fast wiring.
- Override & Language Options: SD-927PKC-NEVQ variant adds a manual override button for enhanced control; available faceplates in English by default, with Spanish (NSQ/NSVQ) and French (NFQ/NFVQ) options.
- Unit Specs: Dual voltage operation 12–24 VAC/VDC; power-friendly, compact stainless steel plate; 3A relay; range 2-3/8"–8"; timing 0.5–30 s or continuous while hand is near; LED indicator; quick-connect screw-less terminals; multilingual faceplates available.
The Wave-To-Open Sensor helps facilities reduce contamination risk by eliminating touchpoints at doors and access points, while preserving quick, reliable egress. It’s particularly well-suited for environments with strict hygiene and safety requirements, such as hospitals, clinics, and cleanrooms, but also benefits schools, factories, and office buildings where hands-free operation is advantageous. The adjustable range and timing let you tailor the device to your doors and traffic patterns, and the built-in LED indicators provide immediate status feedback for users and maintenance teams. A manual override option and multilingual faceplates further enhance practicality in diverse environments.
