Description

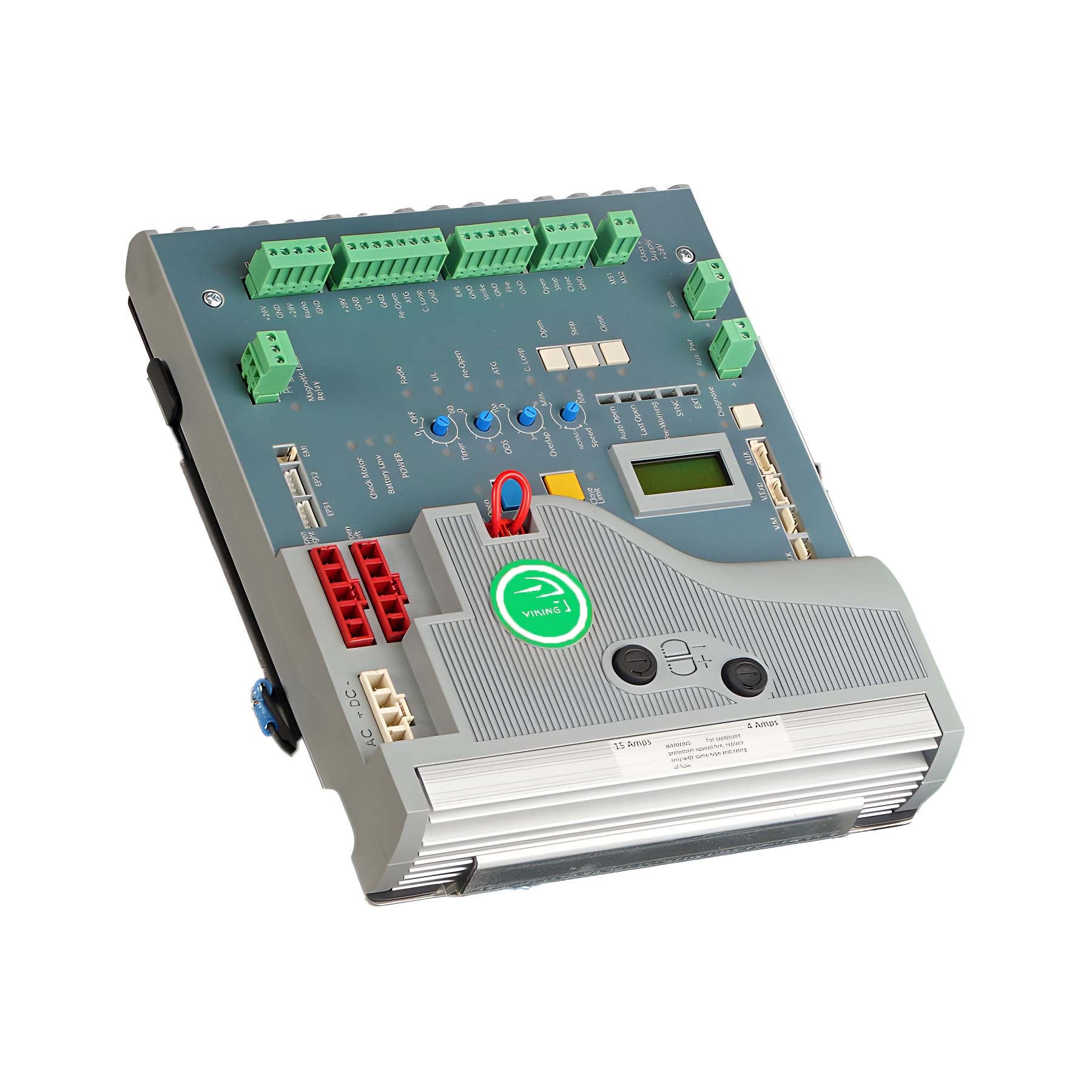

The Viking VFLEXPCBU16-H10 is a purpose-built replacement control board for Viking H10 Slide Gate Operators, engineered to deliver durable, safe, and reliable performance in demanding access-control environments.
In practical terms, this board serves as the control backbone for the H10 system, enabling adaptive torque and speed management to keep gates operating smoothly under varying loads. It provides real-time diagnostics via an LCD display, including error codes and motor current readings to speed troubleshooting. The board also includes enhanced surge protection (20,000 volts / 10,000 amps), a 24VDC operating supply with 120/240VAC single-phase input, and a 20A motor fuse specific to the H10 operator. For uptime during outages, it offers true battery backup rated for up to 400 complete cycles on a 600 lb gate, and supports obstruction detection and monitored entrapment as part of UL325 compliance. The thermostat-controlled heater enables all-weather operation down to -20°F, reducing service calls in harsh climates.
Variant reference and compatibility: Green label, 2016 UL325 mid-generation with enhanced safety logic and refined diagnostics—match by sticker color and UL year for correct replacement. This unit is designed exclusively for the Viking H10 Slide Gate Operator.
| Board Model | Logo Color | UL Compliance Year | Common Usage |
|---|---|---|---|
| VFLEXPCBU18-H10 | Orange | Post-2018 UL325 | Current production model featuring improved diagnostics, upgraded surge protection, and requires a monitored photoeye. |
| VFLEXPCBU16-H10 | Green | 2016 UL325 | Mid-generation version meeting 2016 UL guidelines with enhanced safety logic and refined diagnostics. |
| VFLEXPCB-H10 | Black | Pre-2016 | Legacy control board with basic diagnostic functions and pre-2016 UL safety behavior, used in early H10 models. |
