Description

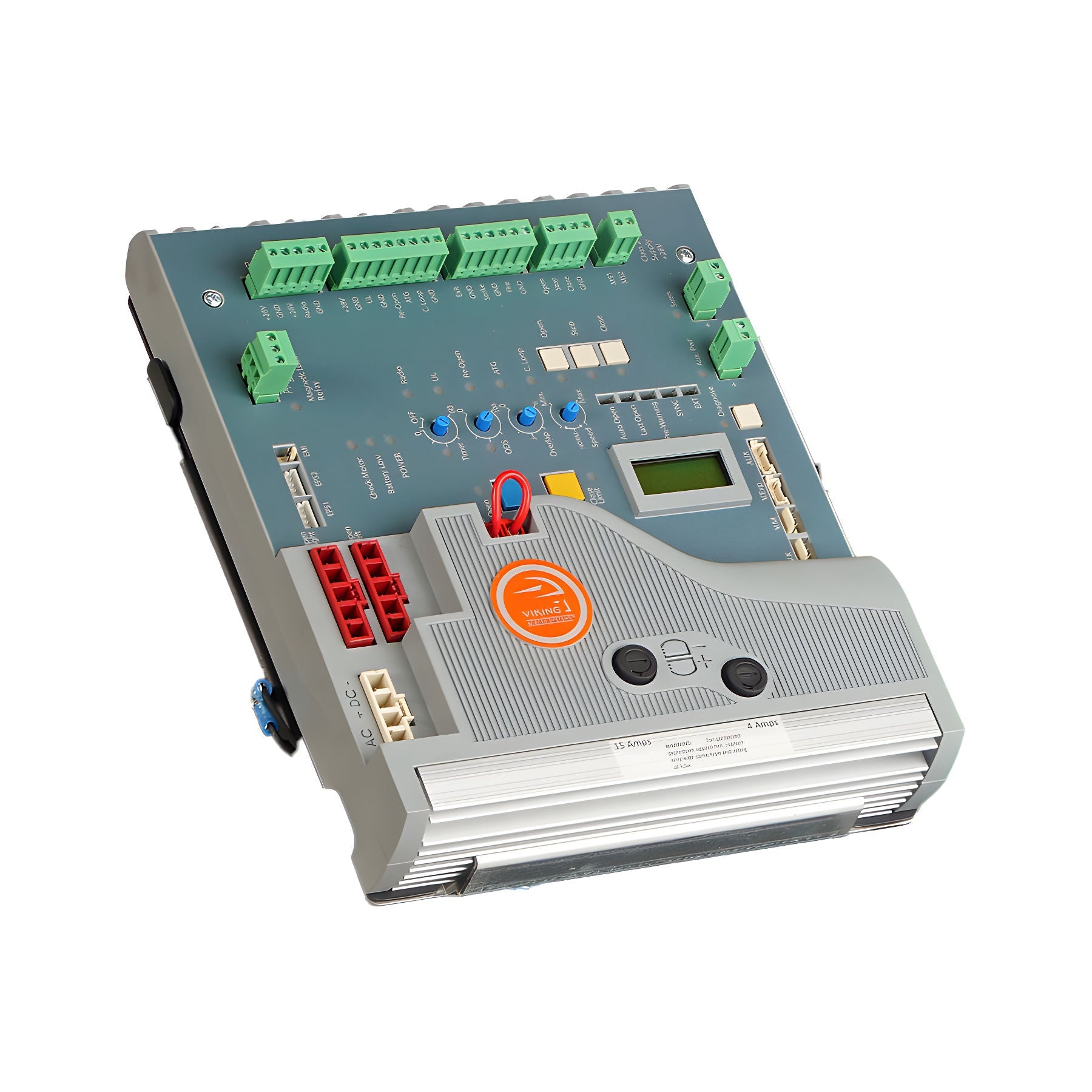

The Viking VFLEXPCBU18-H10 Orange Label control board from GatePoint Solutions is a purpose-built replacement for the Viking H10 Slide Gate Operator, delivering reliable control, diagnostics, and safety features for high-traffic outdoor applications.
In practical use, this board provides adaptive motor control to maintain smooth operation under varying loads and weather conditions, and it includes real-time diagnostics via an LCD display for quick fault codes and motor current readings. The unit operates at 24VDC with 120/240VAC single-phase input and offers surge protection up to 20,000V / 10,000A, a 20A motor fuse, and a thermostat-controlled heater that enables dependable operation down to -20°F. A true battery backup supports up to 400 complete cycles on a 600 lb gate, helping maintain access during power interruptions; the system is UL325 compliant with obstruction detection and monitored entrapment protection for safer operation.
Compatibility: Exclusively designed for the Viking H10 Slide Gate Operator; not intended for use with other Viking models unless explicitly stated by the manufacturer. The orange label indicates post-2018 UL325 compliance, aligning with current safety and diagnostic standards for demanding outdoor installations.
| Board Model | Logo Color | UL Compliance Year | Common Usage |
|---|---|---|---|
| VFLEXPCBU18-H10 | Orange | Post-2018 UL325 | Current production model featuring improved diagnostics, upgraded surge protection, and requires a monitored photoeye. |
| VFLEXPCBU16-H10 | Green | 2016 UL325 | Mid-generation version meeting 2016 UL guidelines with enhanced safety logic and refined diagnostics. |
| VFLEXPCB-H10 | Black | Pre-2016 | Legacy control board with basic diagnostic functions and pre-2016 UL safety behavior, used in early H10 models. |
