Description

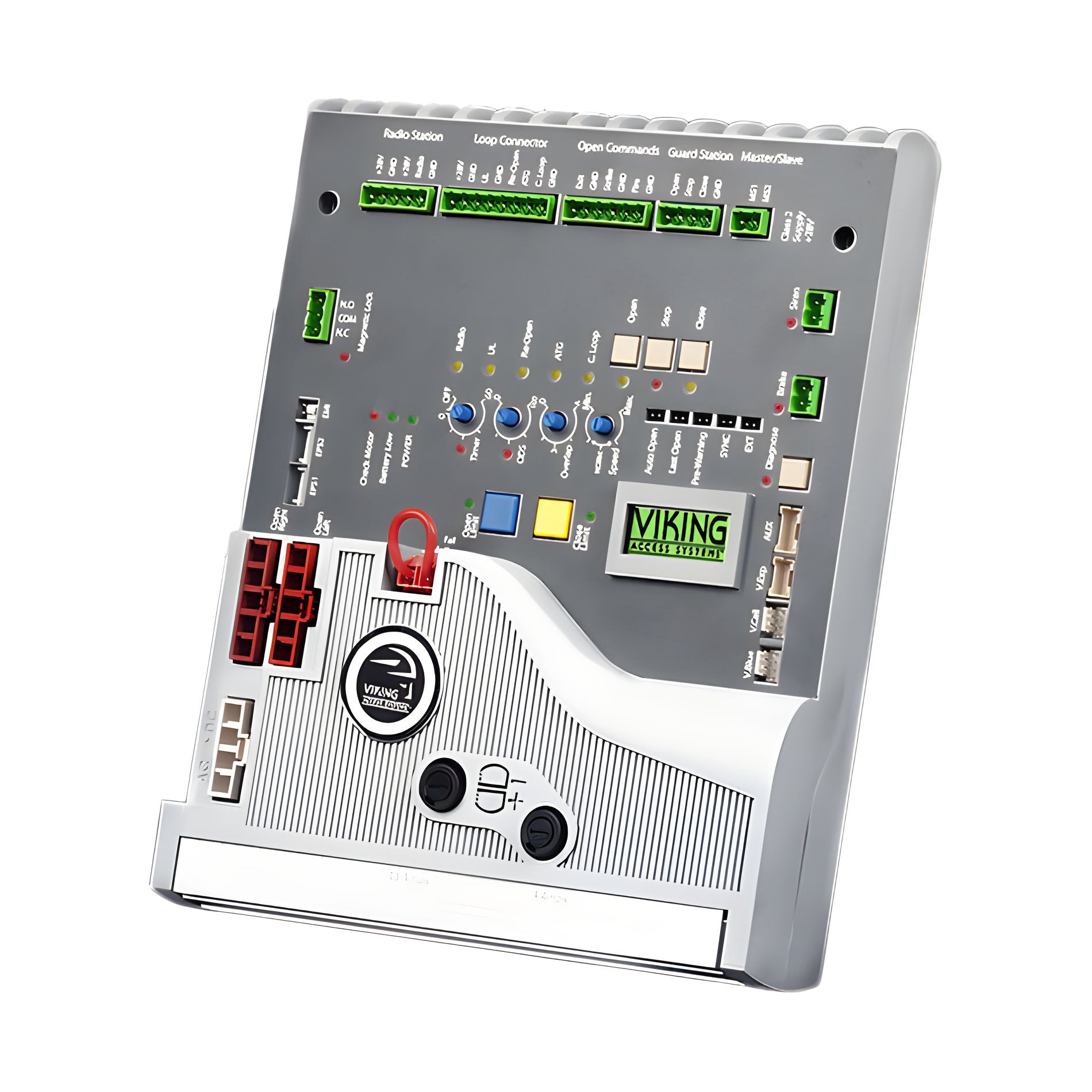

The Viking VFLEXPCB-H10 pre-2016 control board (Black Logo), a precision replacement from GatePoint Solutions, is designed exclusively for Viking H10 slide gate operators and provides a UL325-compliant, plug-and-play control solution to restore reliable outdoor operation.
In practical deployments, it serves as the core control module in aging H10 systems, enabling quick field replacement and continued access control. The board offers real-time diagnostics via an LCD display, adaptive motor control for smoother starts and stops, and enhanced surge protection against power transients. It operates on 24VDC with 120/240VAC single-phase input and includes a 20A motor fuse. The true battery backup supports up to 400 complete cycles during outages for reliable operation, and the unit performs across -20°F to 160°F with an all-weather, thermostat-controlled heater to ensure dependable operation in extreme conditions.
Compatibility: Designed exclusively for Viking H10 slide gate operators; Black Logo pre-2016 UL325-compliant variant is a plug-and-play replacement to simplify installation and minimize downtime.
| Board Model | Logo Color | UL Compliance Year | Common Usage |
|---|---|---|---|
| VFLEXPCBU18-H10 | Orange | Post-2018 UL325 | Current production model featuring improved diagnostics, upgraded surge protection, and requires a monitored photoeye. |
| VFLEXPCBU16-H10 | Green | 2016 UL325 | Mid-generation version meeting 2016 UL guidelines with enhanced safety logic and refined diagnostics. |
| VFLEXPCB-H10 | Black | Pre-2016 | Legacy control board with basic diagnostic functions and pre-2016 UL safety behavior, used in early H10 models. |
