Description

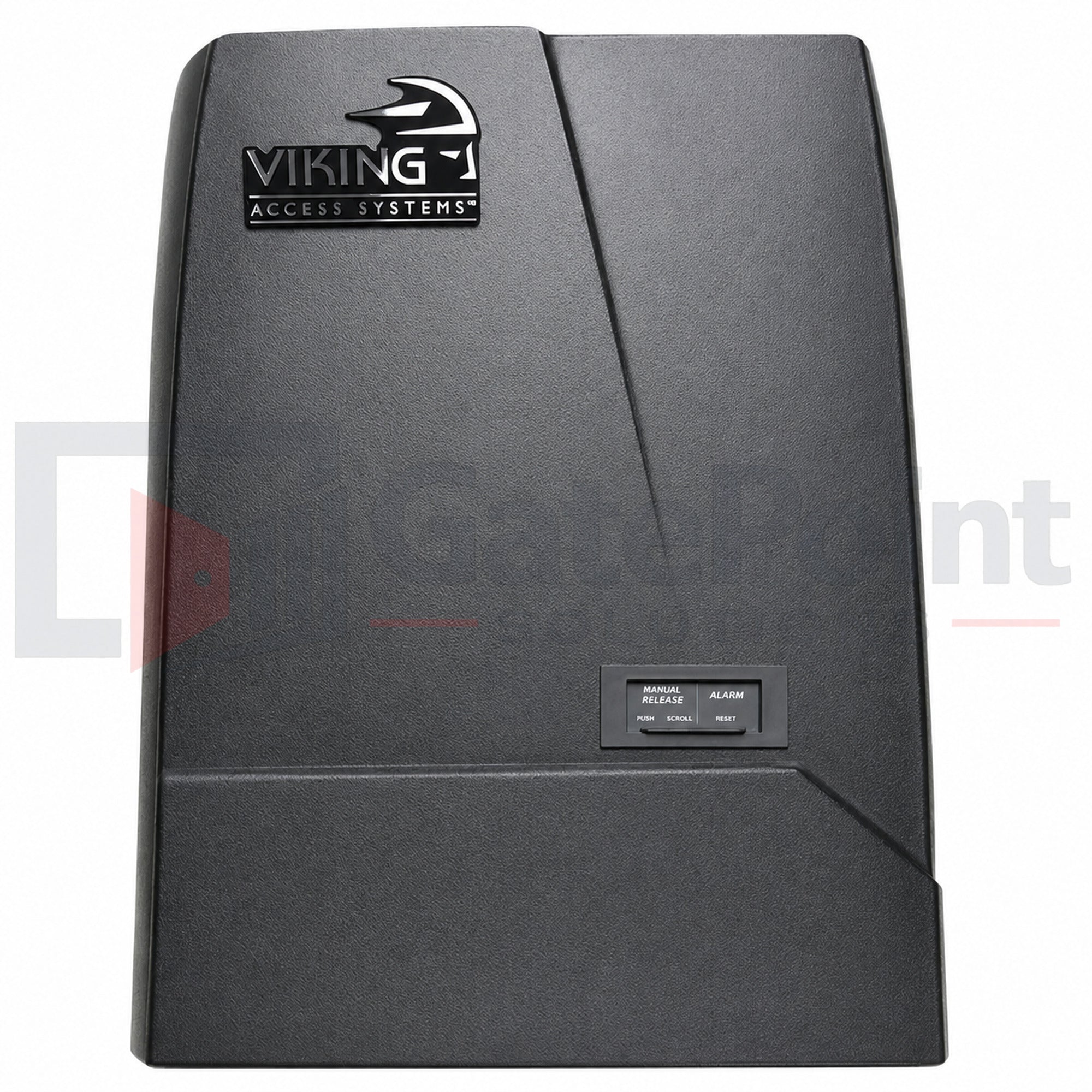

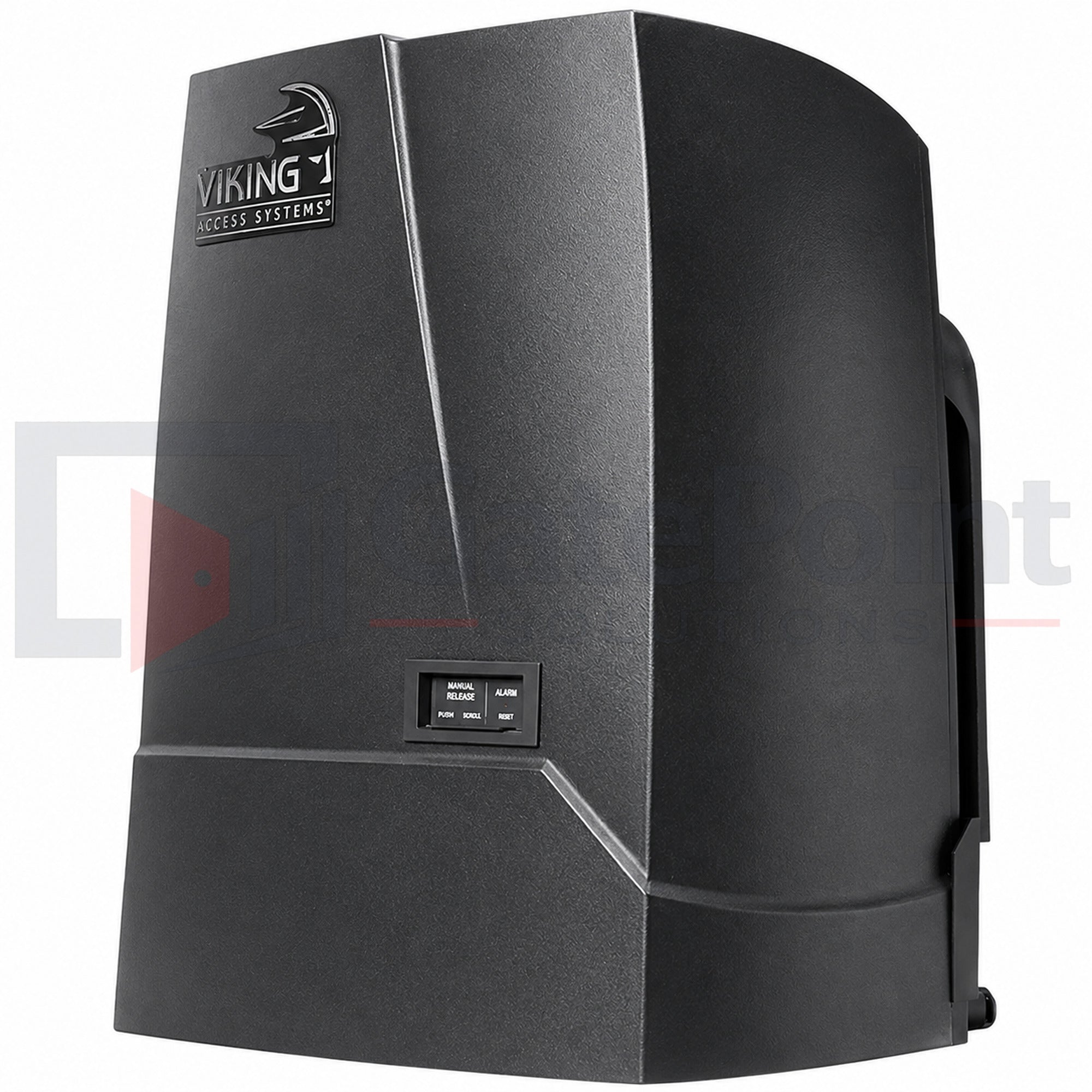

The Viking Access Systems H-10 Slide Gate Operator is a heavy-duty commercial DC slide gate operator engineered for high-cycle residential, commercial, and industrial access control applications requiring increased gate capacity, intelligent diagnostics, and dependable continuous-duty performance. Designed for gated communities, commercial facilities, industrial properties, warehouses, storage facilities, and high-traffic perimeter access systems, the H-10 combines advanced control technology, powerful motor performance, and rugged long-term durability.

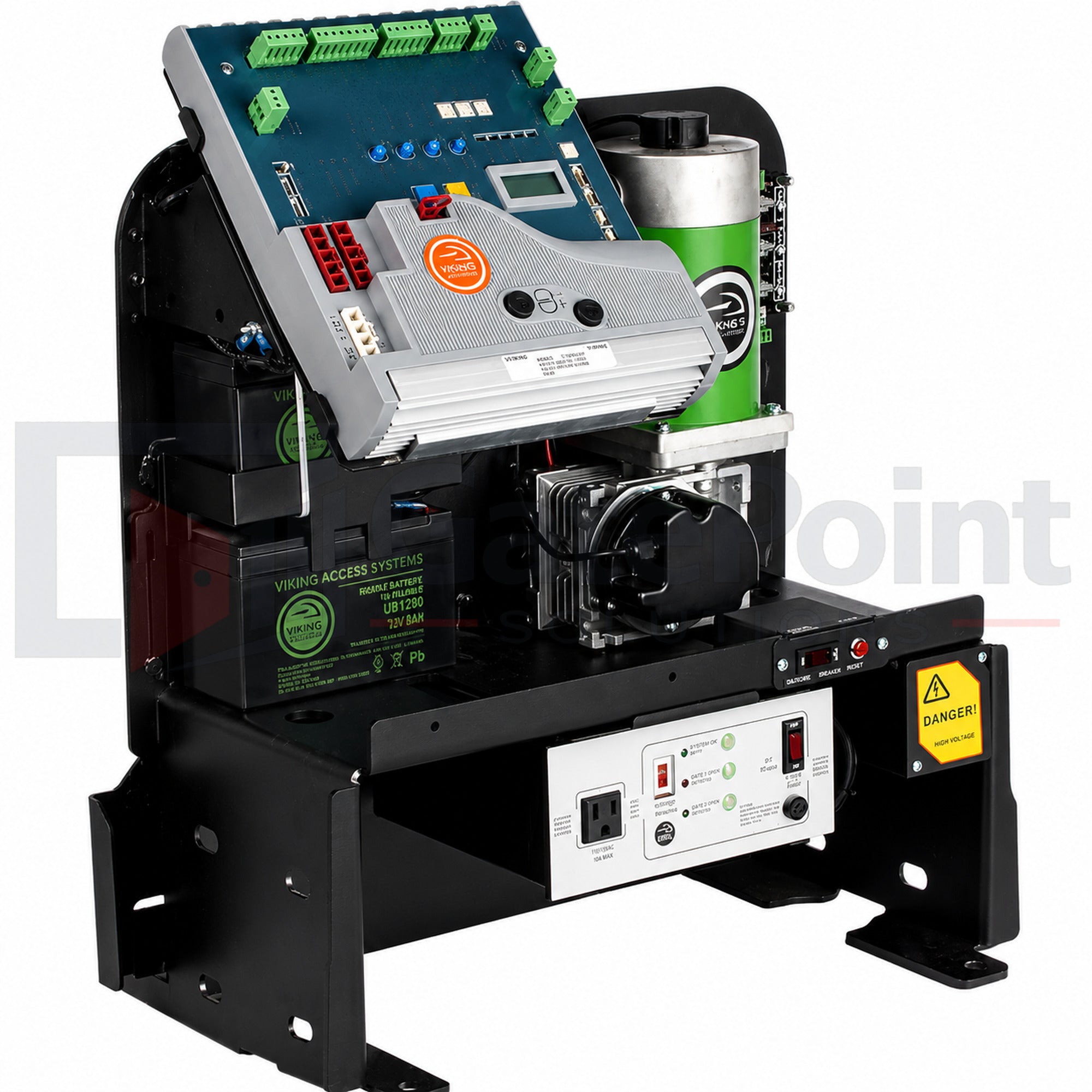

Powered by a true 1 HP 24VDC motor system, the Viking H-10 is capable of operating slide gates weighing up to 2,200 lbs. and up to 75 feet in length while maintaining smooth and quiet 12-inch-per-second gate travel. The operator features Viking’s advanced V-Flex smart control board platform with an integrated LCD diagnostics display, adaptive digital limits, smart positioning technology, and simplified push-button programming for efficient installation and troubleshooting.
The integrated V-Flex control system provides real-time operator diagnostics including voltage, amperage, gate status, and system alerts. Viking’s True Battery Backup System delivers up to 100 continuous backup cycles during power outages while maximizing battery lifespan by preventing battery usage during normal AC-powered operation.
The H-10 also supports Viking wireless accessory integration including Viking Konnect™ wireless communication systems and Viking Monitor™ remote diagnostics and monitoring platforms, allowing installers and property managers to remotely manage operator settings, diagnostics, gate status, and notifications from compatible devices.
Engineered for demanding outdoor environments, the operator includes a built-in heater for cold-weather operation down to -20°F, advanced lightning protection rated up to 20,000 volts / 10,000 amps, integrated surge monitoring, and multiple layers of corrosion protection including G90 galvanized components, zinc plating, UV-rated powder coating, and a heavy-duty 1/4-inch steel chassis.
The Viking H-10 conforms to ANSI/CAN/UL325 safety standards and is designed for dependable long-term operation in high-cycle commercial and residential slide gate applications.
Specifications:
- Model: H-10
- Product Type: Heavy-Duty DC Slide Gate Operator
- Manufacturer: Viking Access Systems
- Application: Residential, Commercial & High-Traffic Applications
- Motor: 24VDC True 1 HP Motor
- Input Voltage: 120/240VAC Single Phase
- Battery Configuration: (2) 7Ah 12VDC Batteries
- Battery Backup Included: Yes
- Battery Backup Capacity: Up to 100 Continuous Cycles at 2,200 lbs.
- Maximum Gate Weight: 2,200 lbs.
- Maximum Gate Length: 75 ft.
- Gate Speed: 12 in. per second
- Duty Cycle: 100% Continuous Duty
- Operating Temperature: -20°F to 160°F
- Safety Standard: ANSI/CAN/UL325 Compliant
- Control Platform: Viking V-Flex Smart Control Board
- Diagnostics Display: Integrated LCD Display
- Heater Included: Yes
- Lightning Protection: Up to 20,000V / 10,000A
- Chassis Construction: 1/4" Steel Chassis
- Corrosion Protection:
- G90 Galvanized Components
- Clear Zinc Plating
- UV-Rated Powder Coating
Key Features:
- Heavy-duty commercial DC slide gate operator
- True 1 HP motor for increased gate capacity
- Handles gates up to 2,200 lbs. and 75 ft. long
- Advanced Viking V-Flex intelligent control platform
- Integrated LCD diagnostics display
- Push-button digital limit programming
- Adaptive digital limits for consistent gate travel
- Smart positioning system retains limits during power outages
- Viking True Battery Backup System included
- Up to 100 continuous backup cycles during outages
- Batteries preserved during normal AC-powered operation
- Integrated heater for cold-weather operation down to -20°F
- Advanced lightning and surge protection built in
- Plug-and-play compatibility with Viking wireless accessories
- Viking Konnect™ wireless dual-gate communication compatibility
- Viking Monitor™ remote diagnostics and monitoring compatibility
- Removable power supply box for low-voltage wiring convenience
- Heavy-duty corrosion-resistant construction
- Smooth and quiet DC motor operation
- Continuous-duty performance capability
- ANSI/CAN/UL325 compliant safety design
Compatible Applications:
Applications include:
- Commercial slide gate systems
- Gated communities
- Apartment complexes
- Storage facilities
- Industrial perimeter access
- Warehouse and logistics facilities
- High-cycle residential gate systems
- Commercial property entrances
- Smart access control systems
