Description

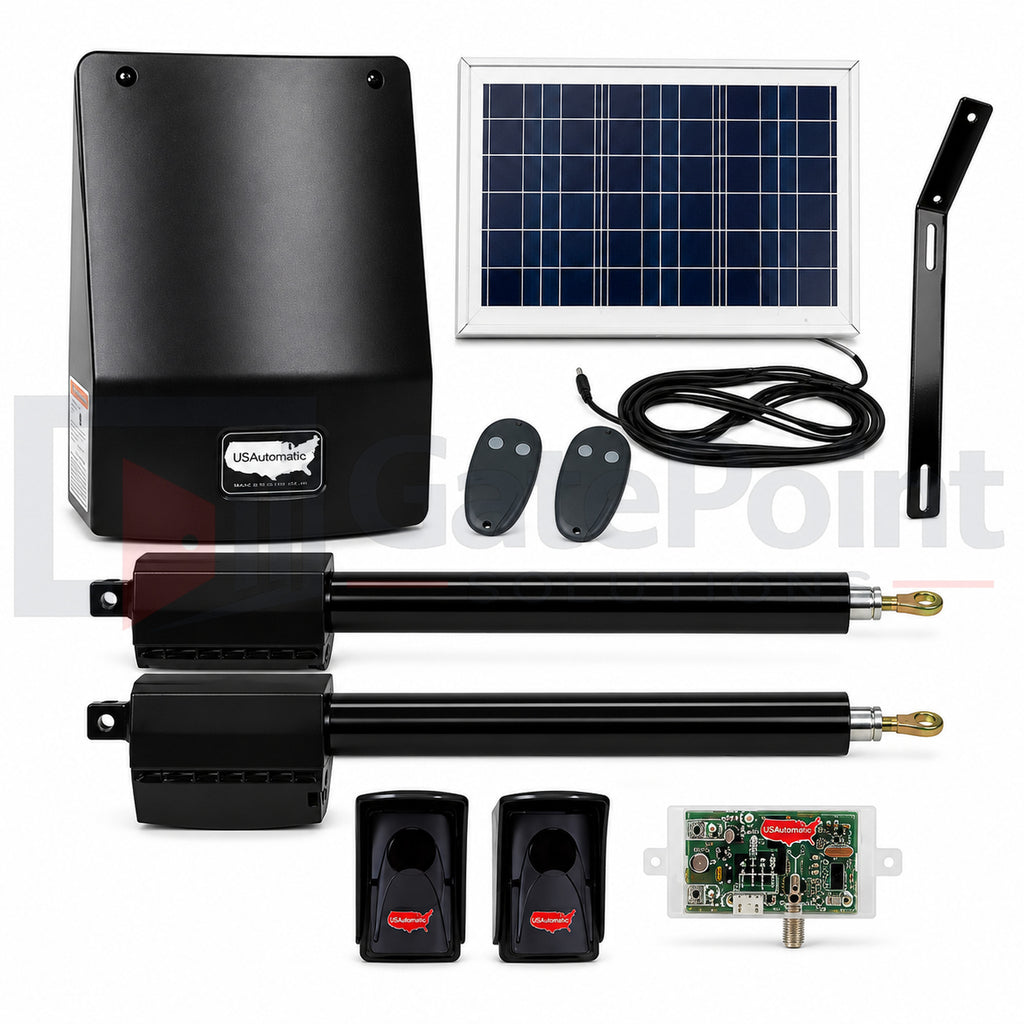

The US Automatic Ranger 500 Solar Dual Swing Gate Opener is a commercial-grade, solar-powered gate automation solution designed for residential driveways, farms, ranches, and small communities. It delivers reliable, multi-cycle operation without relying on utility power, making remote entrances effortless and secure.
- Max Gate Length: Up to 13 ft per leaf for wide driveways and entrances
- Max Gate Weight: Up to 400 lbs per leaf for heavy-duty residential or light commercial gates

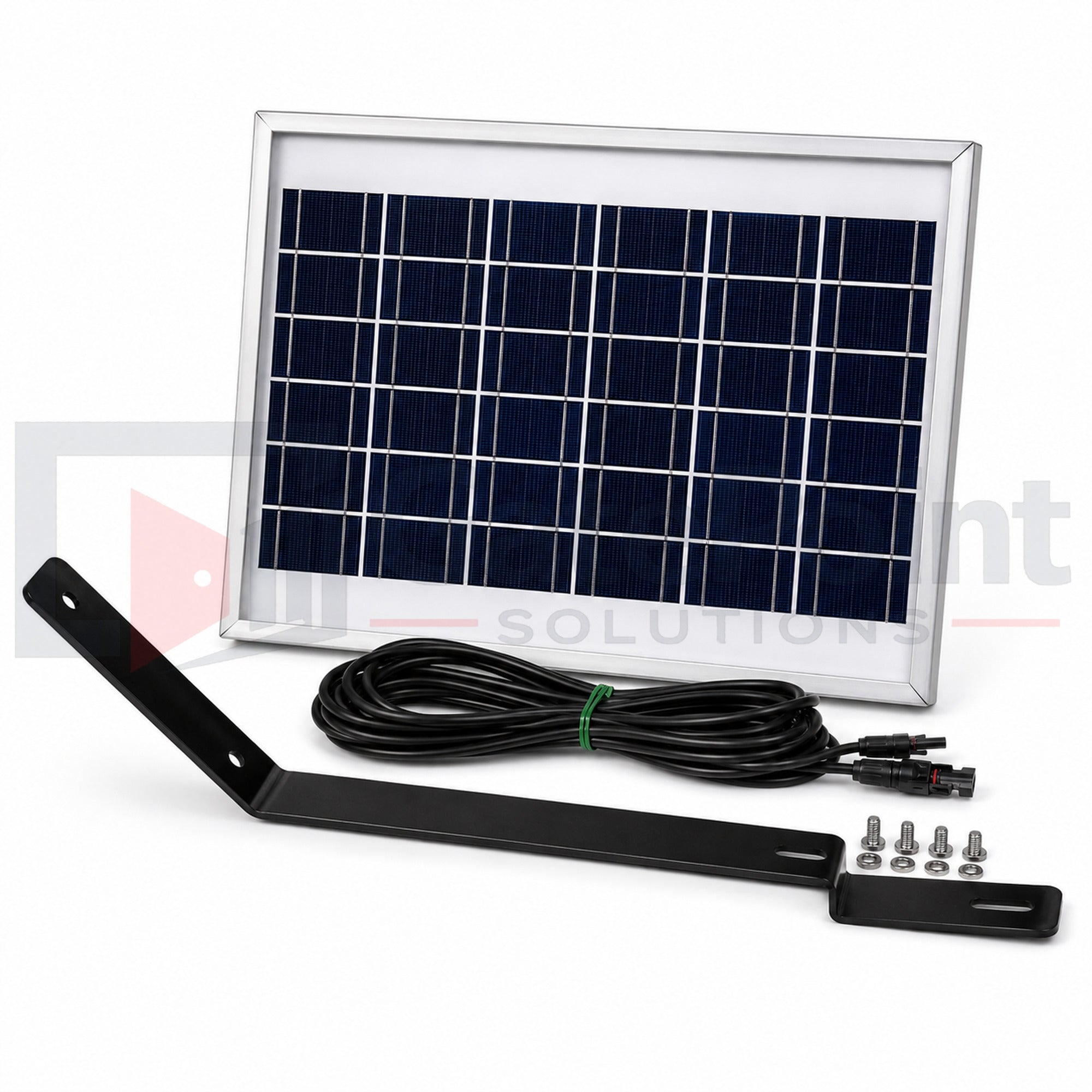

- Power Source: Solar-charged 12 V DC battery system with charging from an included solar panel (or optional panel) for off-grid reliability
- Drive Type: 16" non-corrosive linear actuator delivering smooth, balanced motion
- Speed: Opens to 90° in approximately 18–20 seconds
- Independent Gate Adjustments: Individual sensitivity settings for each leaf to match site geometry and safety needs
- Pre-wired Receiver & Remotes: Solar-friendly, built-in LCR dual-channel receiver plus two ready-to-use 2-button remotes
- Soft Start/Stop: Gentle initiation and termination to reduce wear and enhance safety
- Timer-To-Close: On-board adjustable timer to automatically close gates after a set interval
- UL 325 Safety Compatible: Meets key safety standards when installed with proper entrapment protection
- Battery Backup & Reliability: True multi-cycle operation during outages or cloudy days
- Made in the USA: Built with quality components and backed by a manufacturer warranty for durability
- Warranty: Typically 3 years on components and control board
- Ideal Applications: Residential dual-gate driveways, farms, ranches, off-grid communities, and light commercial access
With Ranger 500, you gain off-grid reliability, secure access, and durable performance tailored to remote locations. The solar-powered system eliminates the need for constant grid power, while the built-in battery ensures access during outages or low sun. Dual leaves accommodate large entrances, enabling smooth, safe operation for vehicles and livestock alike. The two remotes, independent leaf tuning, and programmable timer-to-close simplify everyday use and bolster security. Designed and manufactured in the USA, this gate operator is built to endure challenging environments, backed by a solid warranty for long-term value.
| Feature | Detail |
|---|---|
| Application | Dual swing gate operator |
| Max Gate Length | Up to 13 ft per leaf |
| Max Gate Weight | Up to 400 lbs per leaf |
| Power Source | Solar-charged 12 V DC battery system |
| Drive Type | 16″ non-corrosive linear actuator |
| Speed | ~18–20 sec (90° open) |
| Receiver | Pre-wired solar-friendly LCR dual channel |
| Remotes | Two 2-button remotes included |
| Control Features | Soft start/stop, timer-to-close, independent adjustments |
| Safety | Meets UL 325 with proper safety devices |
| Warranty | Typically 3 years on components/control board |
| Country of Manufacture | United States |
