Description

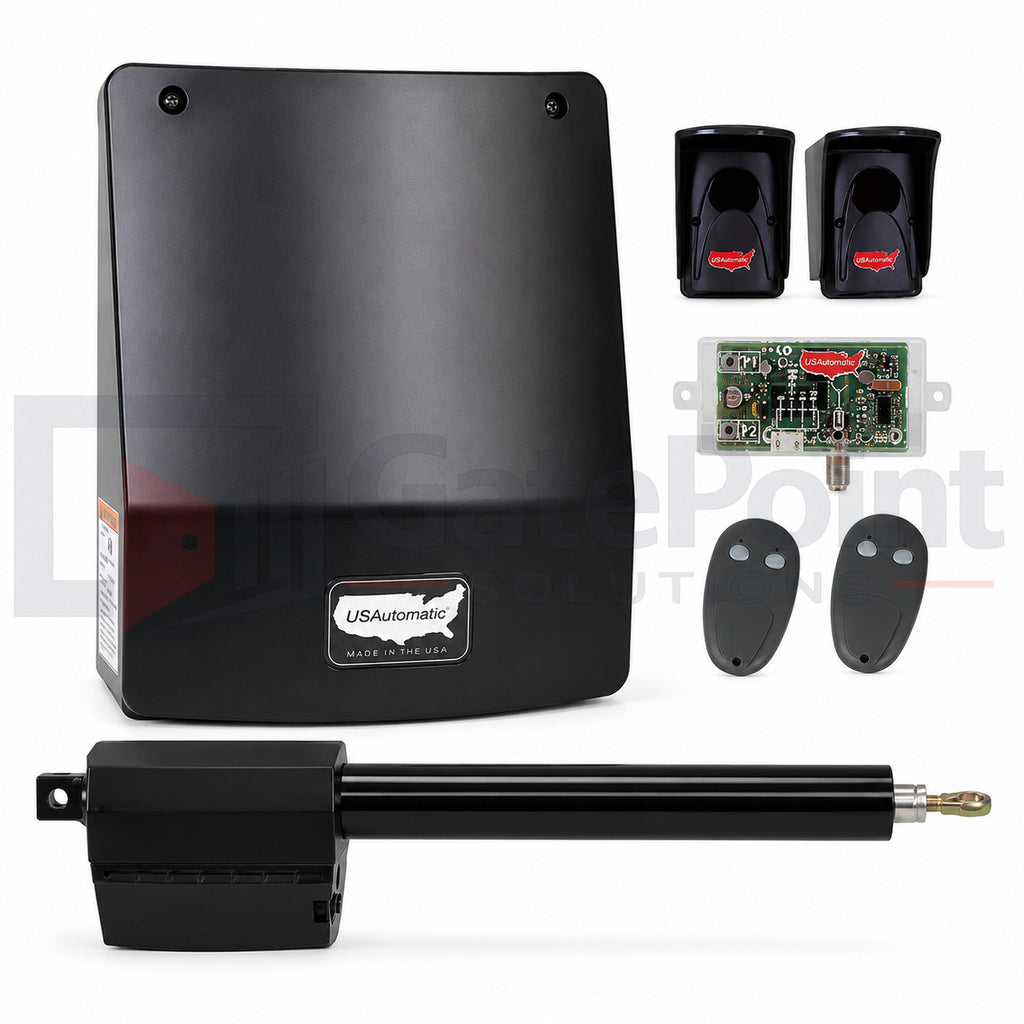

Meet the US Automatic Ranger 500 AC Single Swing Gate Opener—a dependable, American-made gate operator designed for residential driveways, farms, ranches, and light commercial entrances. It powers and controls a swing gate up to 13 ft long and 400 lbs per leaf, delivering reliable performance with straightforward installation.
- Power & charging: AC input with built-in DC battery charging (battery not included) to support continuous operation and easy integration with battery backup and solar accessories.
- Gate capacity: Supports single swing gates up to 13 ft in length and 400 lbs per leaf for durable, everyday use.

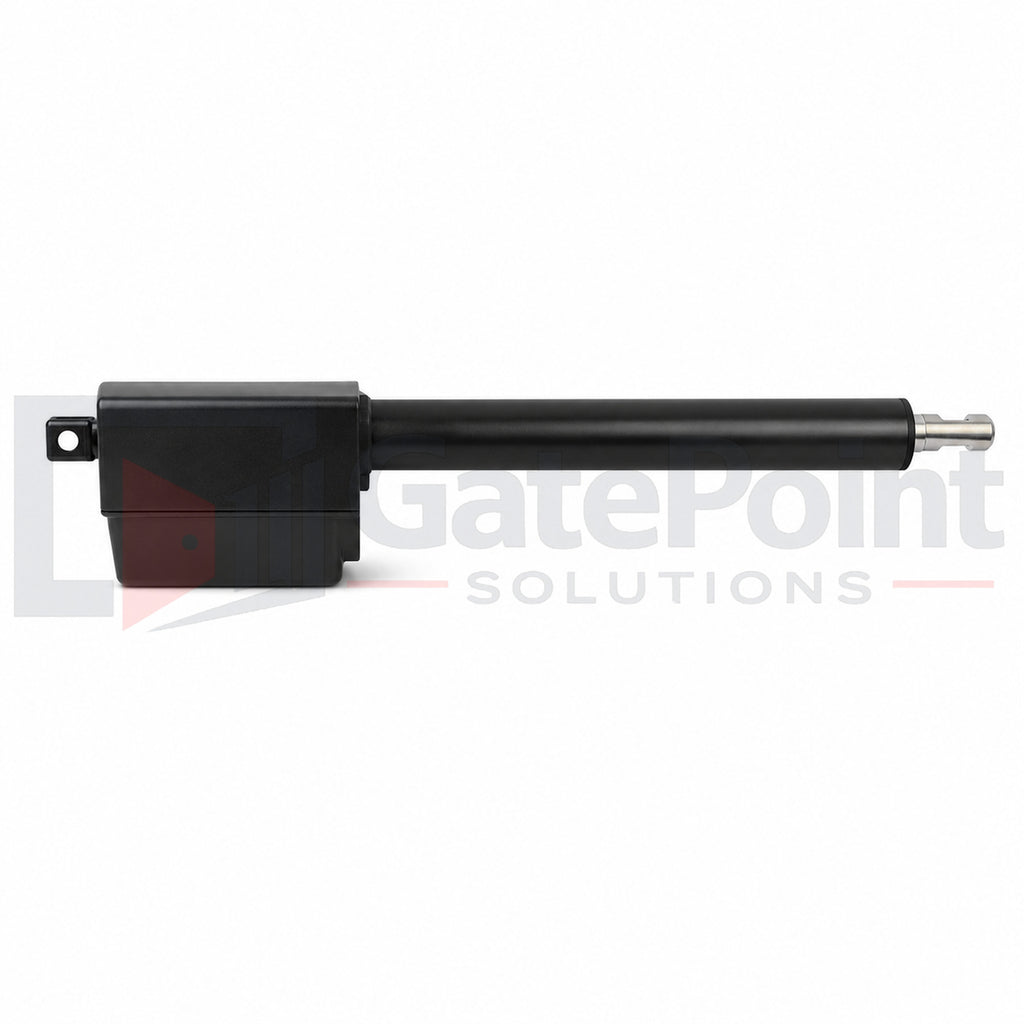

- Drive & control: 16" linear actuator with electronic limit control for precise, dependable movement.
- Opening speed: PWM soft start/stop provides smooth motion; opens to ~90° in 18–20 seconds.

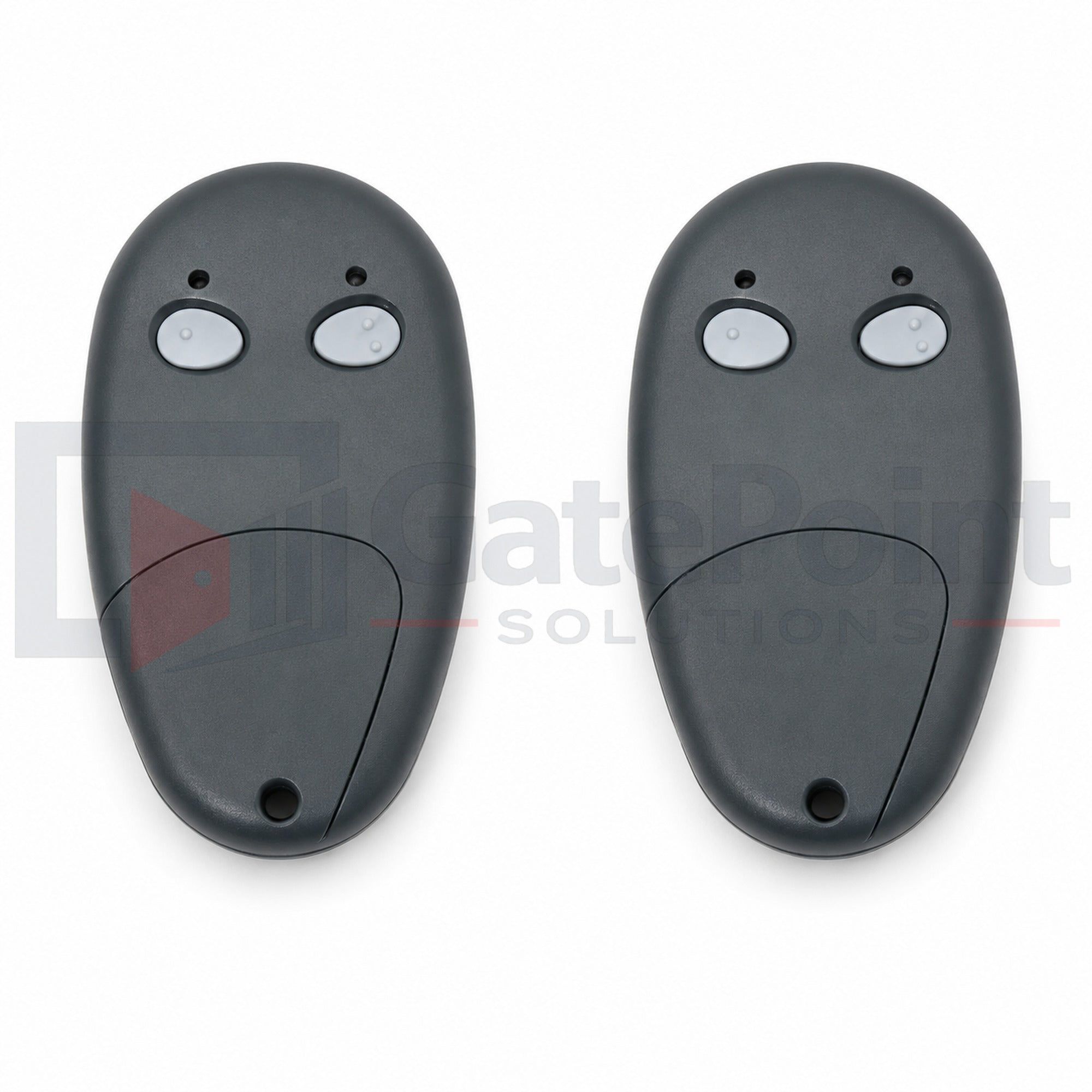

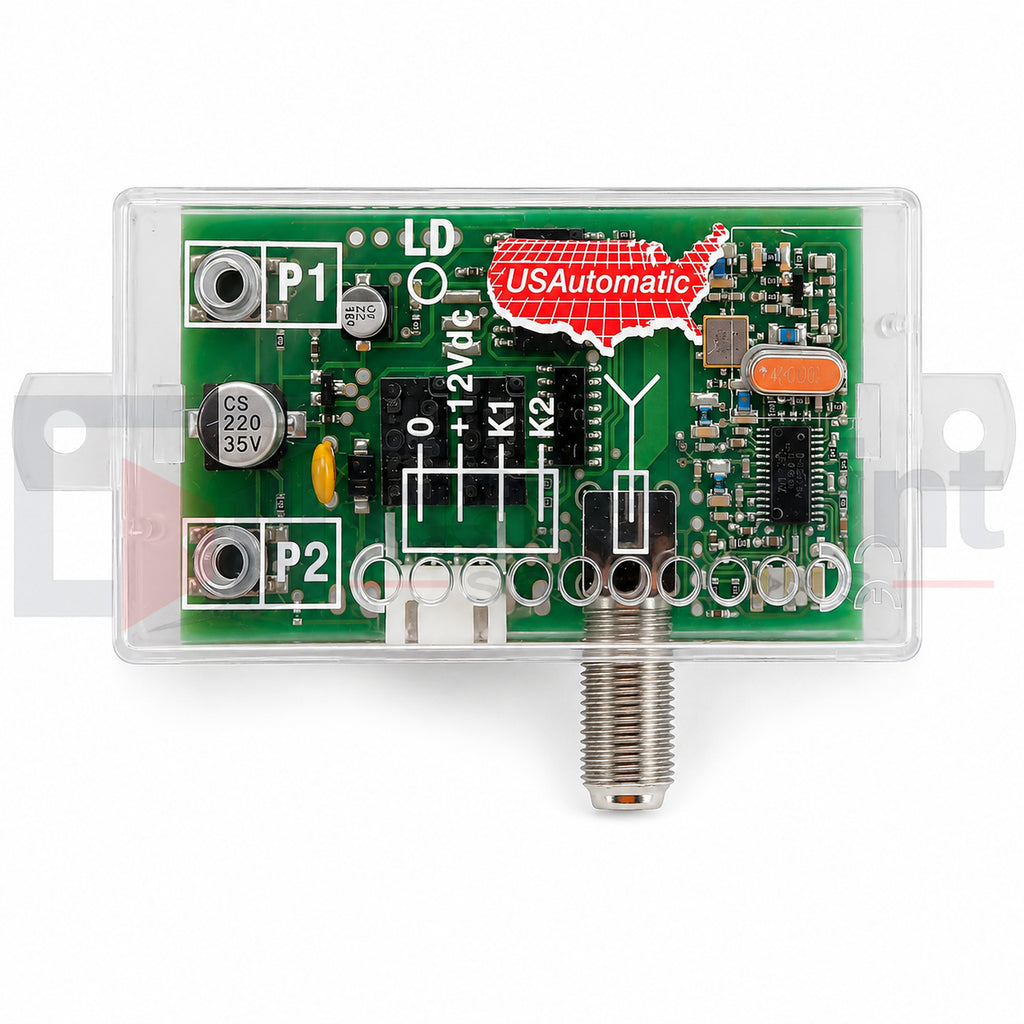

- Smart controls: Pre-wired solar-friendly LCR dual channel receiver included; two 2-button remotes; adjustable timer-to-close (2–120 seconds); independent gate sensitivity adjustments for safe operation.

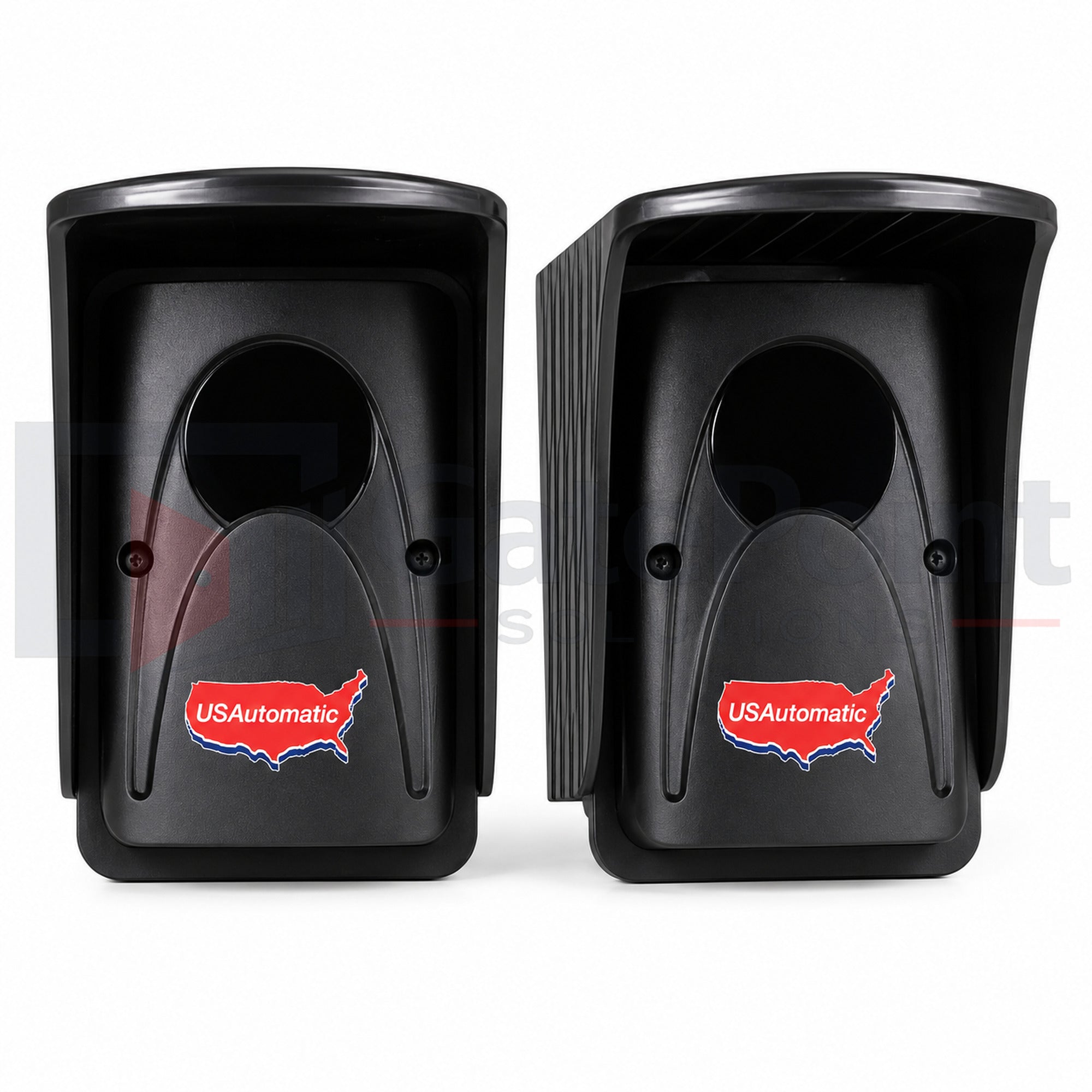

- Safety & compliance: One set of safety photo eyes included; designed for UL 325 compliance when installed with proper safety devices.
- Power options & compatibility: Compatible with solar accessories and third-party control devices; supports battery backup and solar options for hybrid or off-grid setups.
- Warranty & origin: 3-year warranty on components and control board; Proudly Made in the USA.
- Ideal applications: Suited for homeowners, property managers, and installers; ideal for residential driveways, farm and ranch entrances, gated neighborhoods, and light commercial settings requiring dependable control and remote access.
The Ranger 500 AC delivers dependable, low-maintenance gate automation with flexible power options and straightforward installation. Its AC-charged design, combined with battery charging and solar compatibility, ensures operation during power interruptions. With included remote controls, safety devices, and a focus on safe, controlled opening and closing, this gate opener is a robust choice for single-swing gates where reliability matters.
| Specification | Details |
|---|---|
| Application | Single swing gate |
| Max Gate Width | 13 ft per leaf |
| Max Gate Weight | 400 lbs per leaf |
| Power | AC input with DC battery charging (battery not included) |
| Drive | 16″ linear actuator with electronic limit control |
| Speed | ~18–20 sec (90° opening) |
| Thrust | 250 lb dynamic force |
| Control | LCR dual channel receiver included |
| Remotes | Two 2-button remotes included |
| Safety | Photo eyes included; UL 325 compatible |
| Warranty | 3 years components & control board |
| Country | Made in the USA |
