Description

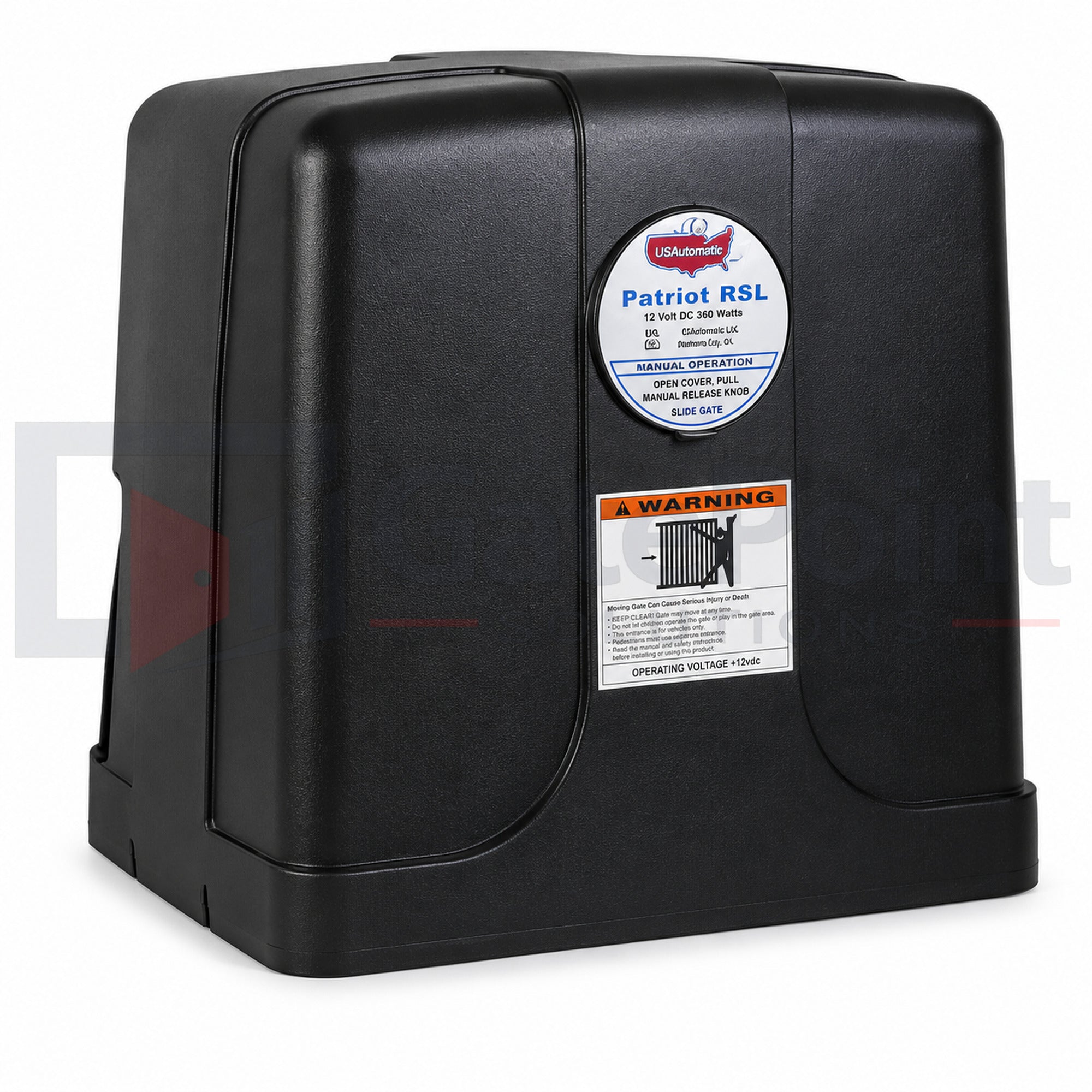

The US Automatic Patriot RSL Solar Slide Gate Operator is a high-efficiency solar-powered slide gate system engineered for residential, ranch, farm, and light-commercial applications requiring dependable off-grid performance and reliable daily operation. Designed specifically for slide-style gates, the Patriot RSL Solar combines fast gate movement, advanced battery backup capability, and low power consumption in a durable American-made platform.
Capable of operating slide gates up to 32 feet in travel distance and weighing up to 1,000 pounds, the Patriot RSL Solar utilizes a high-efficiency inline gear motor with integrated brake assembly to deliver smooth and dependable operation at speeds up to 1 foot per second.
Built for solar and battery-powered environments, the Patriot RSL Solar features multi-cycle battery backup functionality and solar-compatible charging capability for reliable operation during power interruptions or in remote installations without utility power access. Adjustable soft start and soft stop functionality help reduce mechanical wear while extending overall operator life.
The Patriot RSL Solar includes two sets of safety photo eyes and two remote controls while offering built-in timer-to-close functionality, mechanical rotary limit controls, and mobile app compatibility for convenient system management.
Features
- Solar-powered slide gate operator
- Designed for residential and light-commercial applications
- Fast gate speed up to 1 foot per second
- Supports gates up to 32 ft. and 1,000 lbs.
- Multi-cycle battery backup operation
- High-efficiency low-power platform
- Solar charging compatible
- Adjustable soft start and soft stop operation
- Mobile app compatible
- Includes two safety photo eye sets
- Includes two 2-button remote controls
- Mechanical rotary limit controls
- Built-in adjustable timer-to-close
- Made in the USA
Specifications
Model: Patriot RSL Solar
Operator Type: Solar Slide Gate Operator
Gate Configuration: Single Slide Gate
Applications: Residential, Light Commercial, Farm & Ranch
Maximum Gate Length: 32 Ft.
Maximum Gate Weight: 1,000 lbs.
Power Input: 12VDC Battery / Solar Charged
Drive System: Inline Gear Motor with Built-In Brake Assembly
Gate Speed: 1 Ft. Per Second
Limit Controls: Mechanical Adjustable Rotary Limits
Soft Start/Stop: Adjustable via Pulse Width Modulation Software
Timer to Close: Adjustable from 2–120 Seconds
Safety Photo Eyes: Two Sets Included
Remote Controls: Two 2-Button Remotes Included
Receiver: Pre-Wired Solar-Friendly LCR Dual Channel Receiver
Control Box Construction: Painted Galvanized Steel Frame with ABS Molded Cover
Mounting Options: Concrete Pad or 4" Square Post Mount
Manual Release: Pull-Knob Release
Warranty: 3-Year Component / 5-Year Control Board
Certifications: UL 325 Compliant – Class I, II, III & IV
Country of Manufacture: United States
Key Features
- High-efficiency solar slide gate opener platform
- Ideal for off-grid and remote property installations
- Continuous operation during outages with battery backup
- Fast gate travel speed improves property access flow
- Adjustable soft start/stop extends operator life
- Durable galvanized steel and ABS enclosure construction
- Padlock-compatible enclosure for added security
- Mobile app compatibility for convenient access management
- ETL tested and UL 325 certified
- Designed for residential, ranch, and light-commercial use

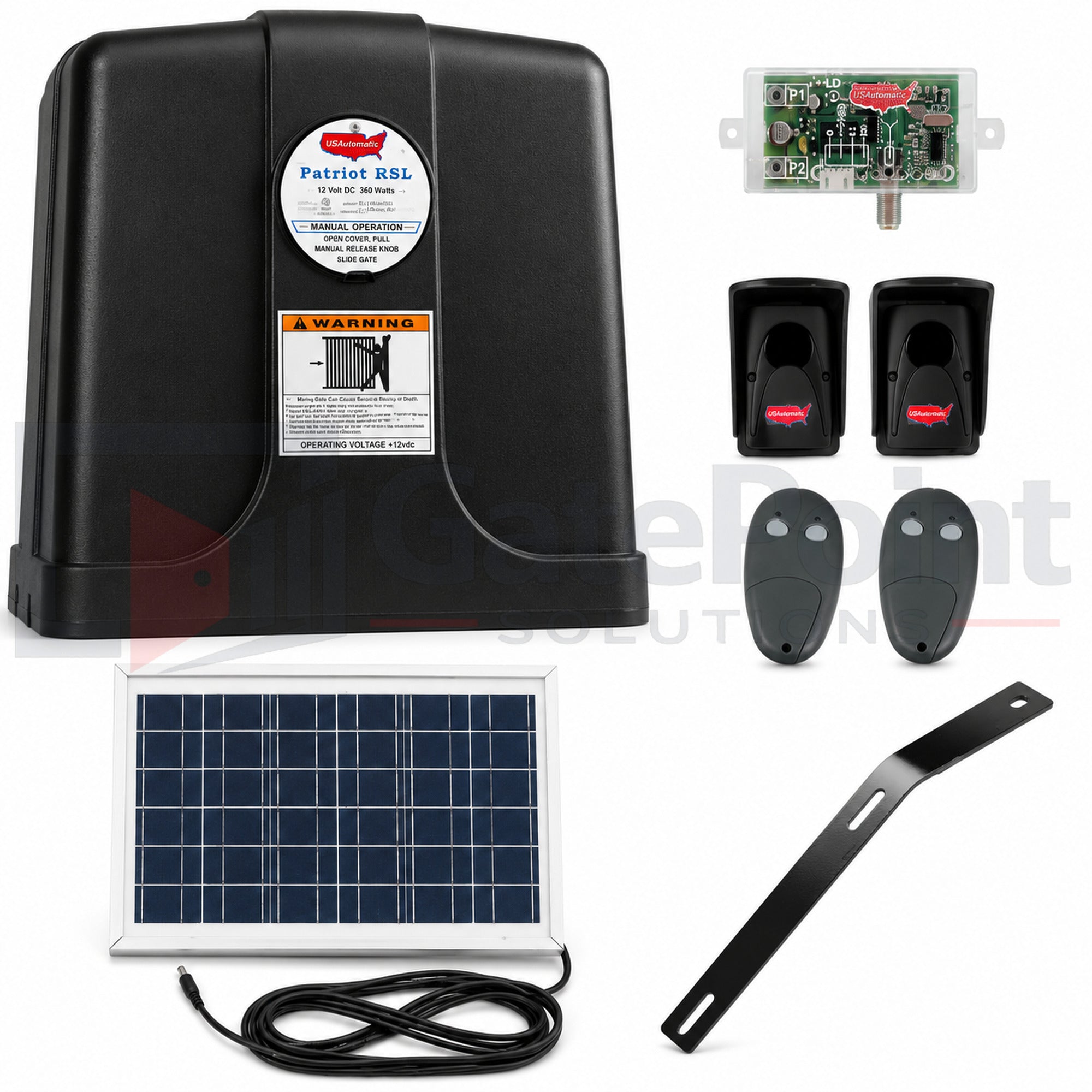

Included Accessories
- Two Safety Photo Eye Sets
- Two 2-Button Remote Controls
Ideal Applications
- Residential Driveways
- Farms & Ranches
- Rural Properties
- Solar Gate Systems
- Light Commercial Properties
- Off-Grid Access Control
Note: Batteries, and additional access control accessories may be sold separately unless otherwise specified.
