Description

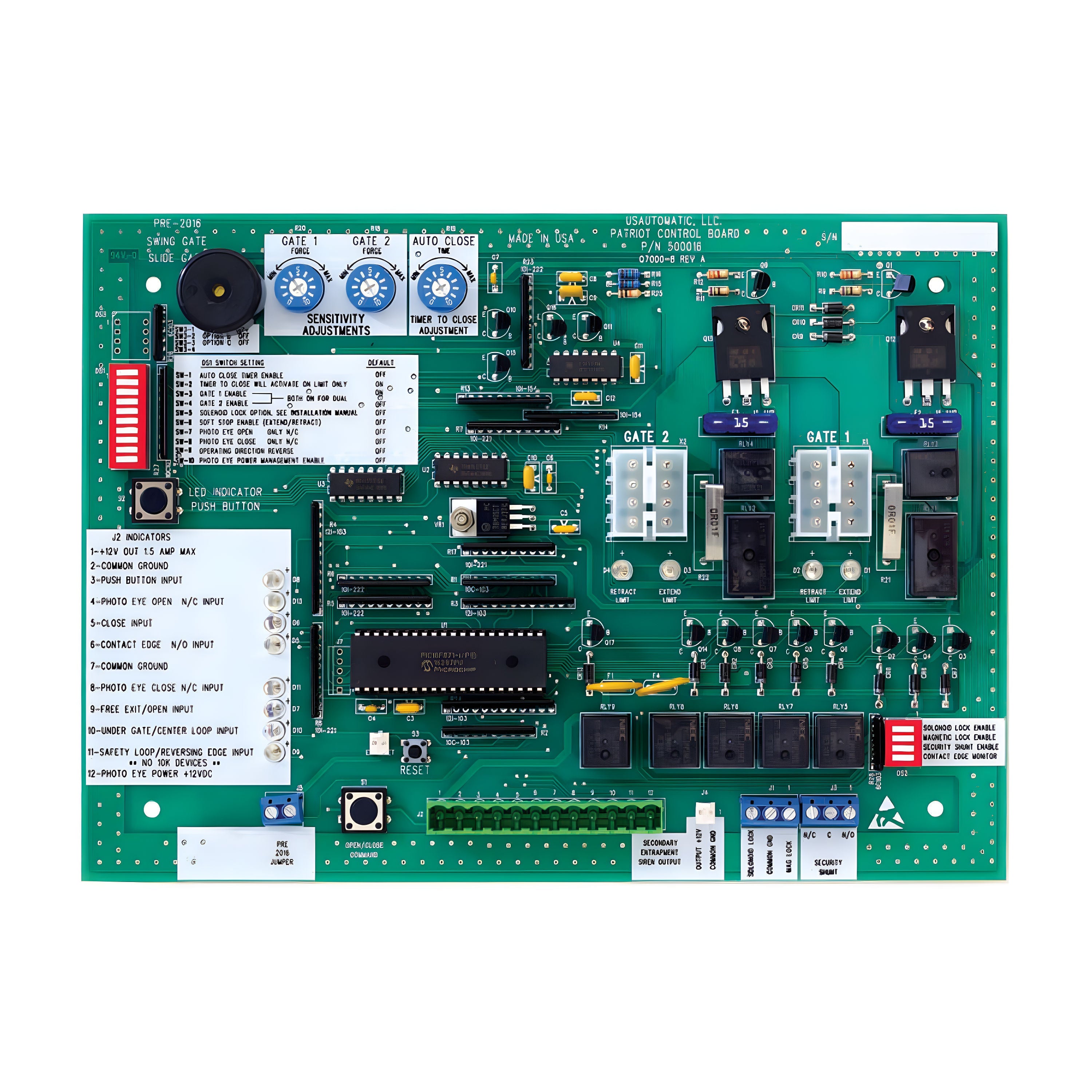

The US Automatic 500016 Patriot Control Board (Pre-2016) is a purpose-built replacement controller for Patriot gate systems, designed to restore safe, dependable operation for both slide and swing operators.
In practical applications, this control board serves as the modern control core for legacy Patriot installations in residential and commercial settings. It enables 12V DC battery-powered operation with flexible charging from solar panels or an AC transformer, supports two monitored entrapment photo eye inputs to meet UL 325 safety requirements, and provides outputs to drive actuators along with auxiliary power for accessories. The design emphasizes off-grid readiness and includes diagnostic LEDs to simplify troubleshooting and preventive maintenance, helping minimize downtime while maintaining gate security and performance.
Compatible with Patriot I and Patriot II slide or swing gate operators manufactured before 2016, with a dedicated Pre-2016 jumper to ensure seamless legacy integration. Available from GatePoint Solutions as a reliable replacement that preserves existing control wiring while delivering updated safety features and diagnostics.
