Description
The Lockey TB200 Hydraulic Gate Closer provides controlled, reliable self-closing operation for pedestrian gates weighing 50 to 125 lbs. Designed for gates 30 to 52 inches wide, the TB200 uses hydraulic/nitrogen-gas controlled closing action to smoothly push the gate closed after entry or exit.
Ideal for residential, commercial, pool, parking, office, and controlled-access pedestrian gates, the TB200 works with both left- and right-hand gates and can be installed at the top, middle, or bottom of the gate. Its steady closing action also makes it well suited for gates equipped with compatible maglocks, electric strikes, and mechanical gate locks.
Key Features
-
Designed for gates weighing 50-125 lbs.
-
Fits gates 30-52 inches wide
-
Hydraulic/nitrogen-gas controlled closing
-
Maximum opening angle: 100°
-
Works with left- and right-hand gates
-

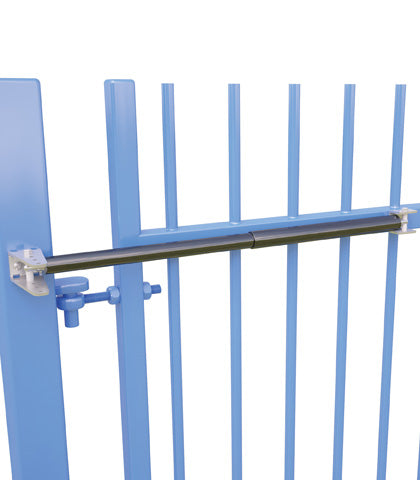

Installs at the top, middle, or bottom of the gate
-
Compatible with in-line and offset hinge arrangements
-
Mounts on the opening side and pushes the gate closed
-
Approximate opening pressure: 3-7 lbs.
-
Mounting brackets and fitting bar included
-
Suitable for vinyl, steel, wood, and compatible chain-link gates
-

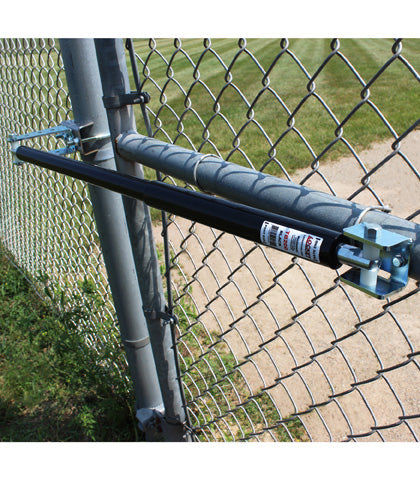

TB-LINX adapter available separately for chain-link applications
Applications
The Lockey TB200 is an excellent self-closing solution for pedestrian gates at residential properties, pool areas, office complexes, parking facilities, resorts, and other controlled-access entrances.
Important: The TB200 is not compatible with gates less than 30 inches wide. Lockey requires a gate stop to restrict the gate opening angle and retain the product warranty.
