Description

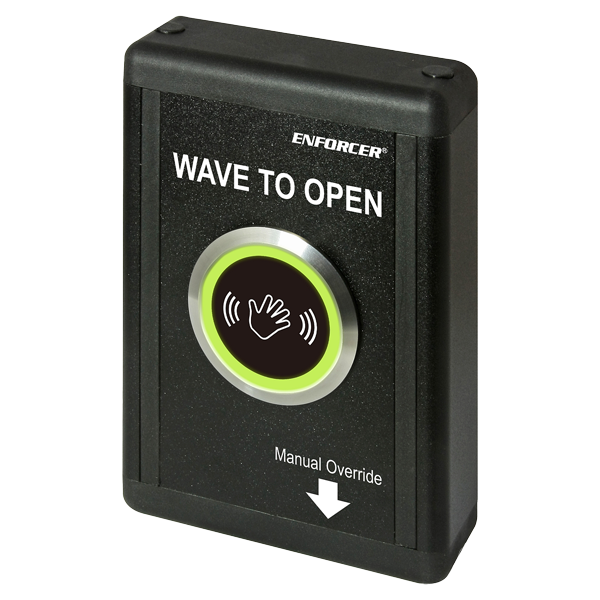

The Surface-Mount Wave-to-Open Sensor with Manual Override Button provides hands-free access control for outdoor doors, gates, and entryways. Built for reliability in varying weather, it combines touchless operation with a simple override for service or temporary access.
- Wave-to-open sensing: Surface-mount design enables seamless, contactless entry for fast, hygienic access.
- Adjustable sensor range: Detects motion up to 6 inches (15 cm) to fit different doorway widths and mounting scenarios.
- Relay output: 1A relay suitable for door actuators or access controllers, enabling reliable door operation.
- Adjustable trigger duration: Set how long the door remains unlocked from 0.5 to 30 seconds to match traffic flow.
- LED indicator and color options: Toggle LED illumination for easy identification, with selectable colors that switch from red to green or green to red when activated.
- Manual override button: Quick physical override for controlled access during maintenance or outages.
- Housing material: Durable aluminum alloy and ABS plastic enclosure designed for long-term outdoor use.
- Weather resistance: IP54-rated enclosure protects the sensor from dust and splashing water.
- Certifications and standards: ETL listed and UL 294 compliant for safety and reliability in access control installations.
- Unit specs: UL 294 compliant, ETL listed; sensor range up to 6" (15 cm); 1A relay; adjustable trigger duration 0.5–30 s; LED illumination with color change on activation; LED area toggle for identification; housing: aluminum alloy + ABS; IP54 weather-rated for outdoor use.
Designed for outdoor access control, this sensor minimizes physical contact while offering precise control over entry timing. The adjustable range and duration let you tailor the system to site traffic, while the manual override ensures administrators can grant or restrict access as needed without disabling the entire system. The bright, color-changing LED indicators provide immediate status feedback, and the sturdy enclosure protects internal electronics from the elements, helping it perform reliably in environments from doorways to gate entrances.
