Description

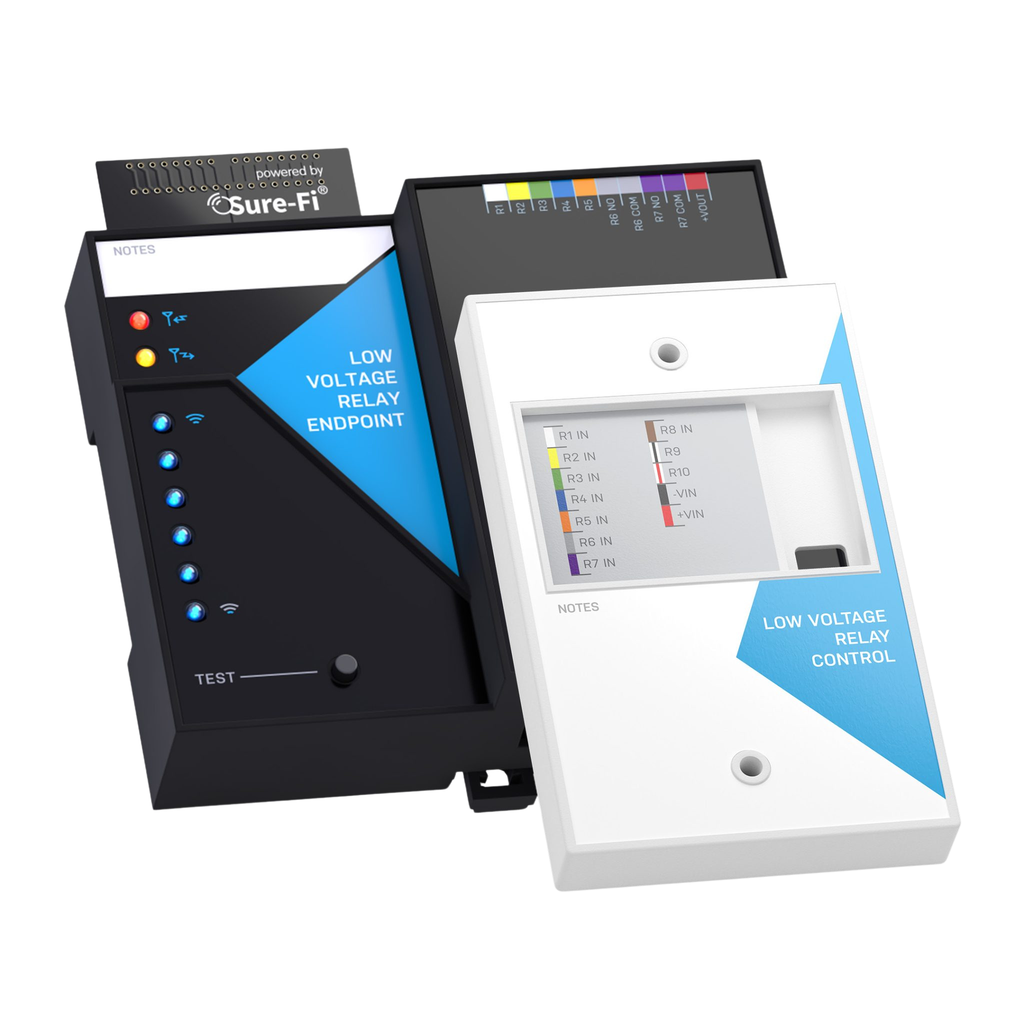

Sure-Fi Relay Low Voltage Kit is a wireless relay bridge that enables remote control of higher-power devices over a low-voltage network. It's built for installers, facilities managers, and automation enthusiasts who want a safe, wire-free way to activate multiple loads from a single trigger.
- Voltage Range and Relay Array: 12–24V AC/DC general purpose relay control with 8 solid-state relays (5 with shared common, 3 form A).
- Wireless Bridge Architecture: Comprises two or more Sure-Fi Units, a Controller, and one or more Endpoints to replace direct wired connections between devices.
- Trigger-to-Action Flow: When the initiating device sends a signal, the Controller relays it wirelessly to all connected Endpoints, which then engage their relays to complete the action.
- Endpoint Capacity: Support for up to 8 Endpoint Units connected to a single Controller for scalable, multi-load control.

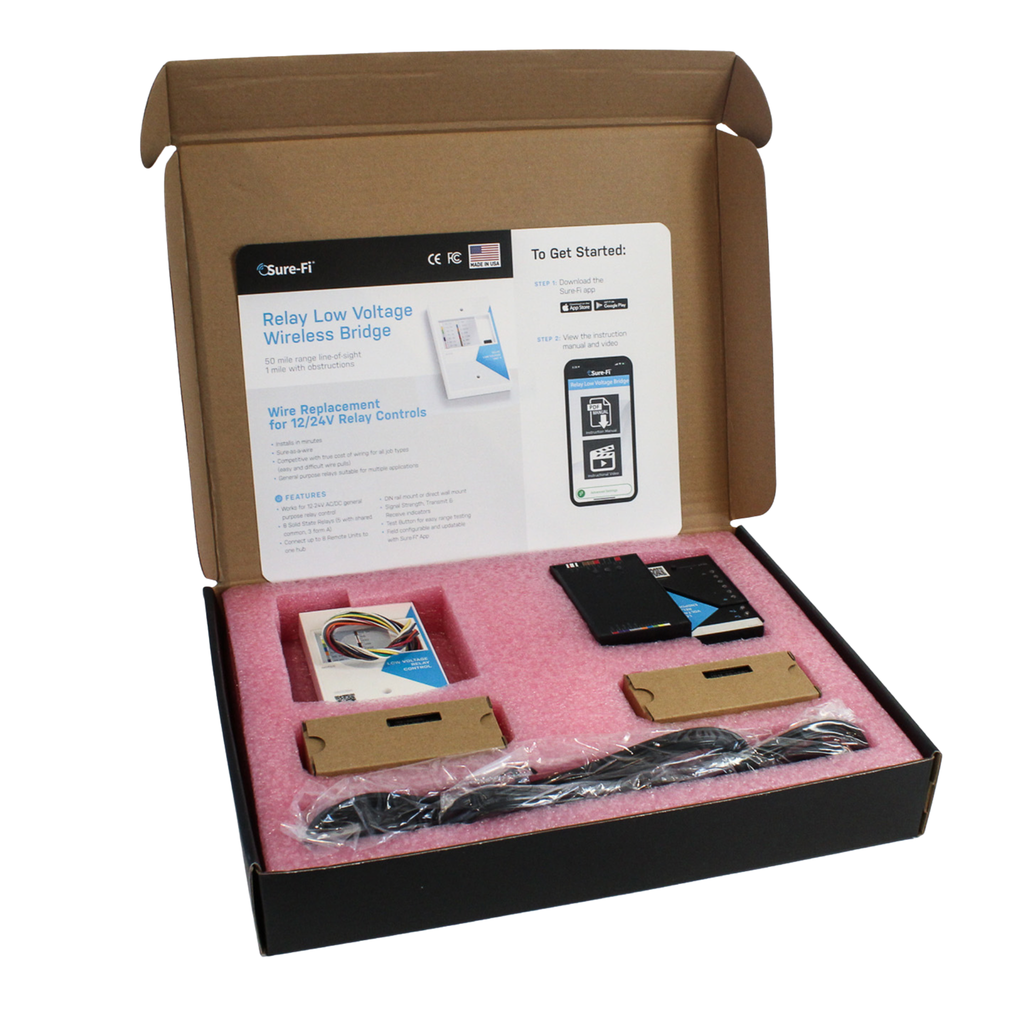

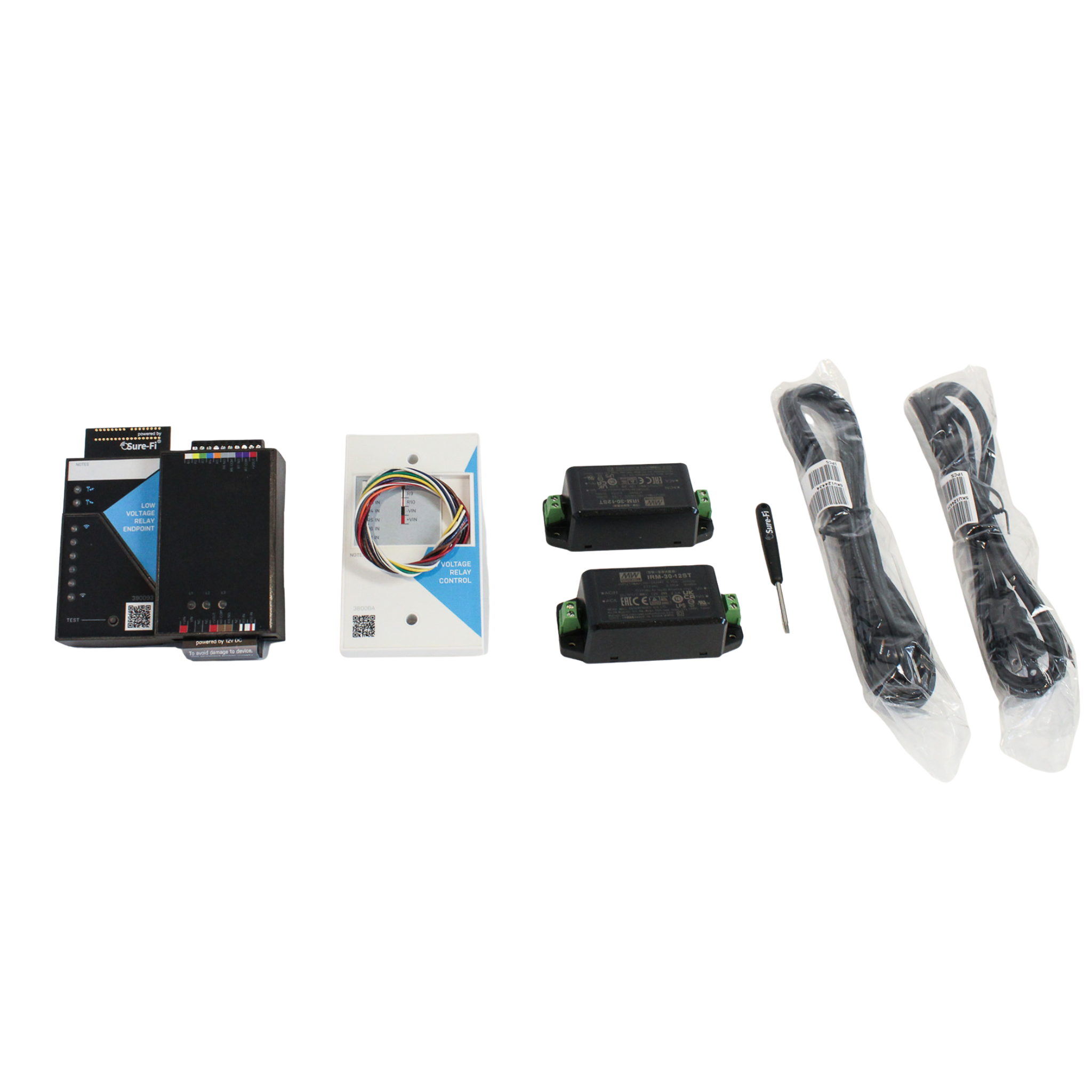

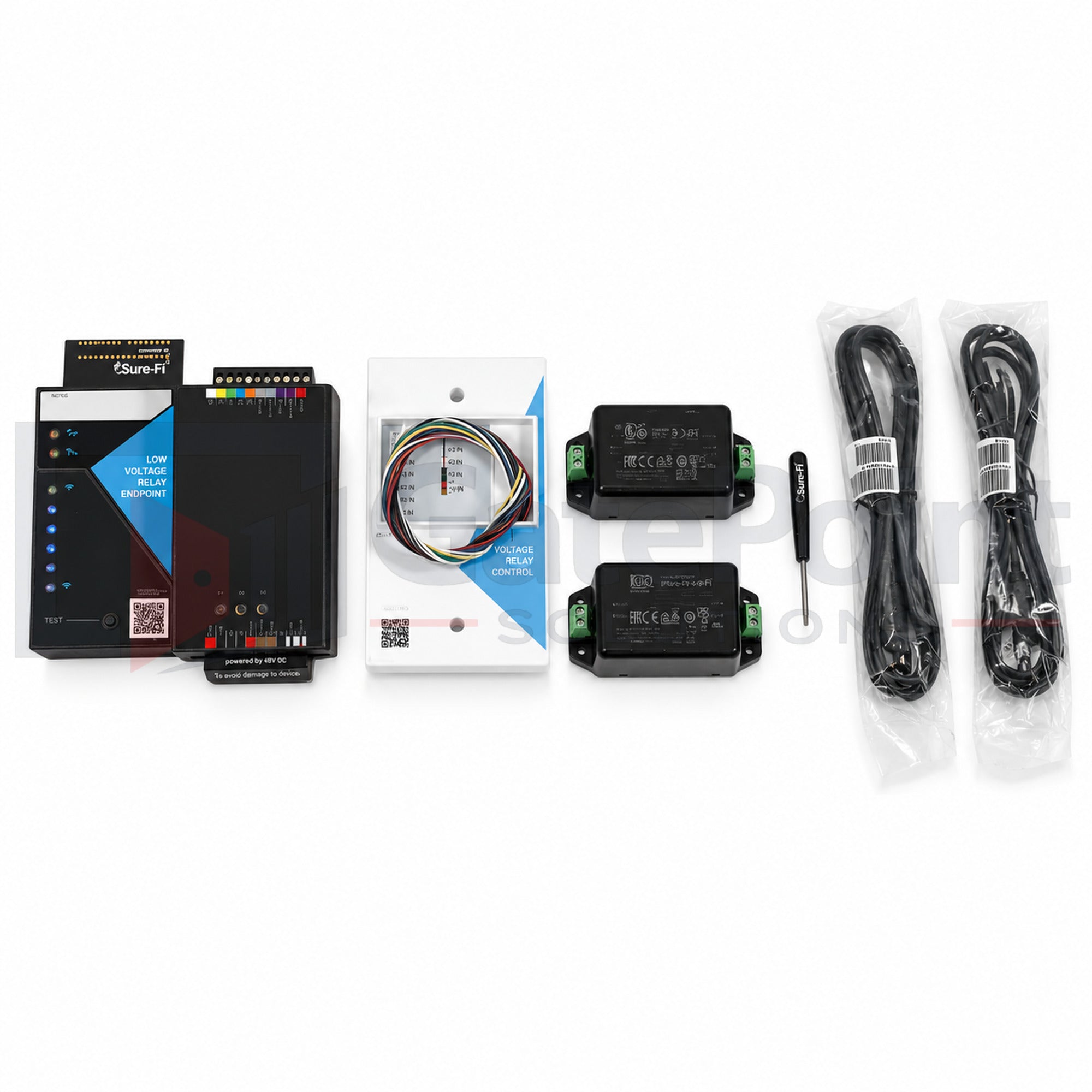

- In the Box: Includes one Controller and one Low Voltage Relay Endpoint, plus two 112V 2.5A output power supplies with 100–240, 277 VAC input, two 6-foot power cords, and a Sure-Fi screwdriver.
- Reliability and Construction: Solid-state relays provide quiet, fast switching and long-term reliability for dependable low-voltage control of higher-power circuits.
The Sure-Fi solution eliminates the need for physical wiring between devices while maintaining precise control over multiple loads. It’s ideal for retrofitting existing systems, expanding automated control across rooms or zones, and integrating with centralized triggers in facilities, commercial spaces, or complex home automation setups. With up to eight endpoints per controller and robust 12–24V operation, you can confidently scale your wireless relay network to fit your project without sacrificing performance or safety.
