Description

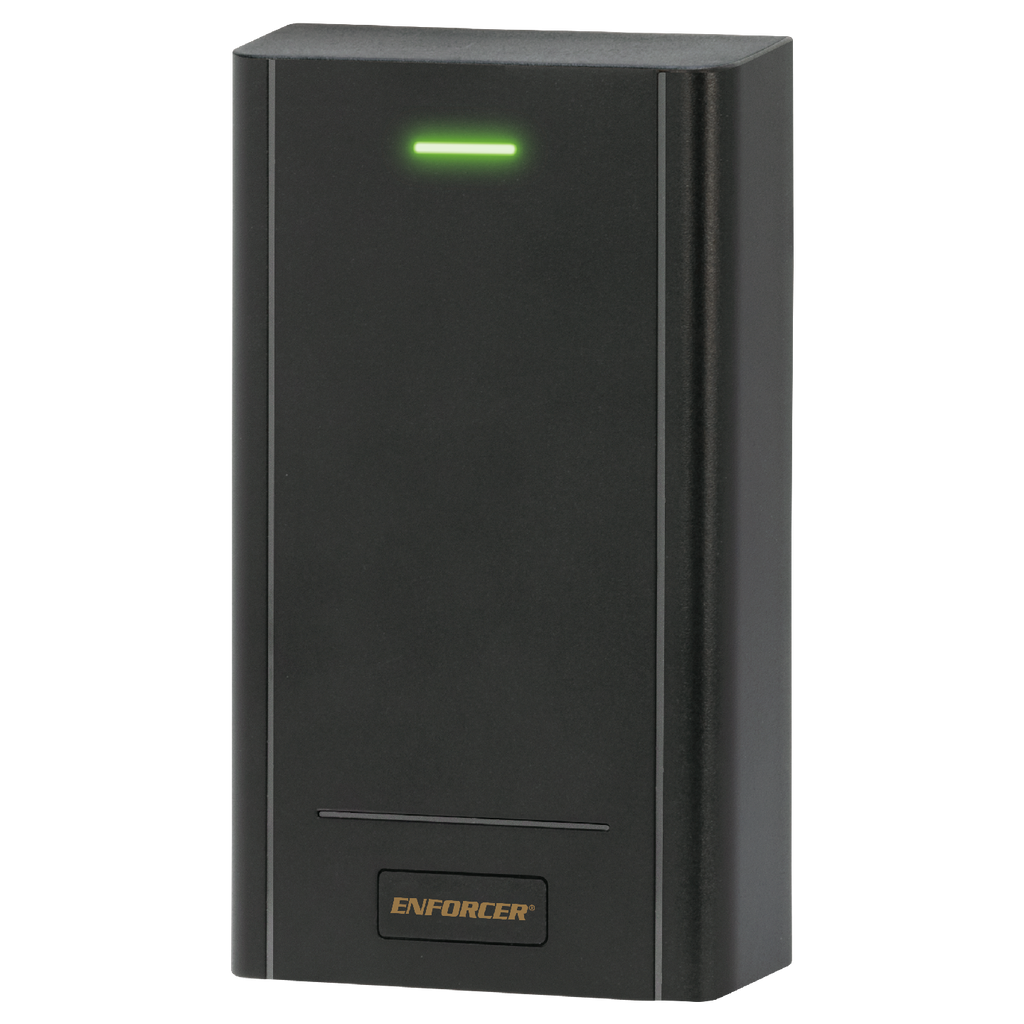

The Stand-Alone Proximity Reader with Wiegand is a rugged, outdoor-ready access control device designed for independent operation at entry points. It’s ideal for facilities needing flexible Wiegand interfacing, easy credential provisioning, and reliable performance in harsh environments.
- Voltage operating range: 12–18 VDC for flexible power options across installations.
- Current draw: Up to 120 mA max, enabling efficient standalone operation.
- Relay output: Form C relay output rated at 2 A @ 12 VDC for door strike, lock, or alarm control.
- Alarm capabilities: Built-in tamper alarm and external alarm output for enhanced security monitoring.
- Weatherproof rating: IP66 outdoor rating to withstand rain, dust, and temperature variations.
- Wiegand interface: Can function as a reader or controller with output and input, supporting 26–44 bit EM 125 kHz proximity cards.
- Card technology: EM 125 kHz proximity card compatibility for reliable, widely adopted credentials.
- 2-Door interlock: Supports interlock configurations for synchronized, secure two-door access control.
- Card management: Easy duplication of users to additional devices and bulk addition of multiple cards at once for rapid deployment.
The device speaks directly to door hardware via the Form C relay, reducing the need for a separate controller in many setups. Its standalone capability, combined with IP66 protection and tamper detection, makes it a practical choice for campuses, warehouses, outdoor storefronts, and facilities with outdoor or remote access points. With flexible Wiegand support and bulk card provisioning, you can scale access across multiple sites without sacrificing security or administrative efficiency.
