Description

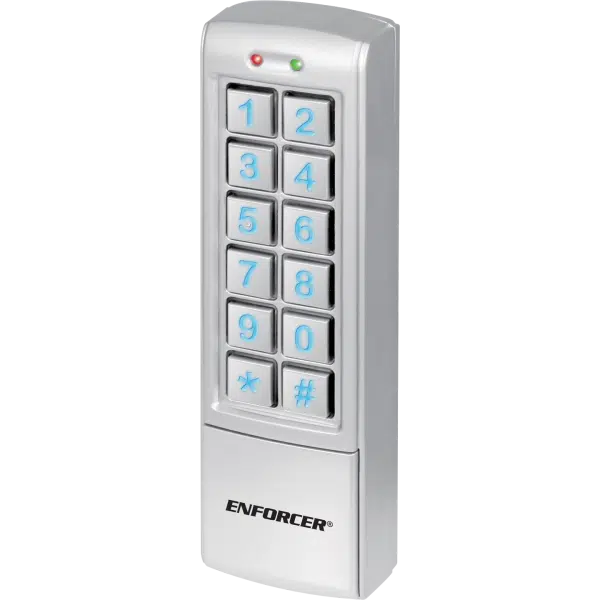

The SK-2323-SPQ is a feature-rich access control keypad with a built-in proximity reader, designed for secure entry in commercial, industrial, and multi-tenant settings. It combines keypad entry, card access, and robust protection in a weatherproof housing for reliable performance outdoors.
- Voltage Operation: 12–24 VAC/VDC operation for flexible installation in diverse electrical setups
- User Codes: Supports up to 1,010 individual user codes to accommodate growing access needs
- Relays: 2 Form C relays, each rated 1 A at 30 VDC for reliable door and alarm control
- Programmable Output: Output #2 can be set for timed (1–99 seconds) or toggle operation
- Doorbell Integration: Output #2 can function as a doorbell output for visitor signaling
- Egress Inputs: Includes 2 egress inputs to exit the premises without entering a code
- Backlit Keys: Illuminated keypad for easy nighttime operation
- Door Sensor Input: Supports anti-tailgating with a door sensor input to detect unauthorized entry
- keypad Programming: All features programmed directly from the keypad—no external programmer required
- Memory: EEPROM memory protects programmed data during power loss
- Security Features: Optical tamper detection adds an extra layer of security
- Weatherproofing: IP65-rated weatherproof design with epoxy-sealed circuitry in a rugged aluminum housing
- Built-in Reader: Integrated proximity card reader for fast, contactless access
Designed for durability and ease of use, the SK-2323-SPQ simplifies access management in busy entryways. Its combination of keypad, card reader, dual relays, and flexible output options supports varied access workflows—from timed door releases to doorbell signaling—while keeping sensitive programming secure and offline-ready thanks to EEPROM memory. Ideal for offices, small warehouses, apartment buildings, and storefronts that require reliable, weatherproof access control without complex installation.
