Description

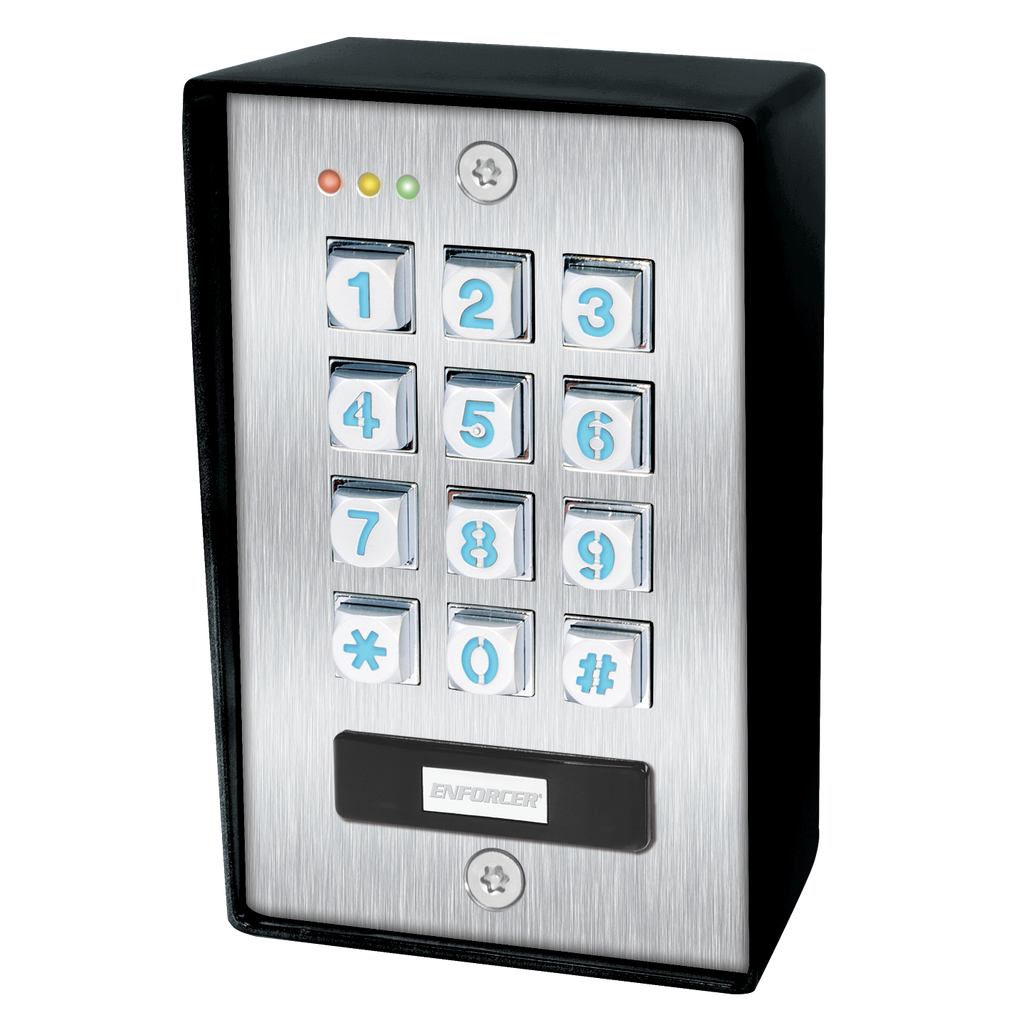

The SK-1123-SPQ is a robust keypad and proximity access control designed for versatile entry management in outdoor and indoor settings. It combines flexible code-based access with a built-in proximity reader, making it ideal for small to mid-size facilities that require secure, scalable entry solutions.
- Power and operation: Auto-adjusting 12–24 VDC/VAC input for seamless integration with existing power supplies and door systems.
- Code capacity: Up to 1,000 user codes for output 1 (000–999), 100 user codes for output 2 (001–100), plus up to 50 visitor codes (01–50) for one-time or limited-time access (1–99 hours).
- Duress and security codes: Up to 50 duress codes for output 1 and 10 for output 2, enabling discreet emergency signaling when needed.
- Relay outputs: Output 1 and Output 2 are Form C relays rated at 1 A max for 30 VDC; both can be programmed to activate for up to 99,999 seconds (nearly 28 hours).
- Tamper protection: N.C. dry contact tamper output (50 mA @ 24 VDC max) to alert or log tampering attempts.
- Memory and programming: EEPROM memory preserves programmed information during power loss; all features are configured directly from the keypad, with no external programmer required.
- Access and entry features: Egress input allows occupants to exit without entering a code; door sensor input supports anti-tailgating; interlocking input enables connection to a second keypad for expanded setups.
- Security integrations: Data I/O terminal enables split-series wiring for enhanced security; expansion port supports future feature additions; built-in proximity reader supports credential-based access.
- Durability and installation: IP66 weatherproof housing for reliable outdoor use; surface-mount back box included for straightforward installation.
With the SK-1123-SPQ, you gain precise, scalable control over who enters, when they can enter, and how they move through your space. Manage staff codes, issue time-limited visitor codes for contractors, and utilize duress codes for discreet emergencies. The keypad’s on-device programming eliminates the need for external programmers, while EEPROM memory protects your settings during power interruptions. Built-in proximity support and anti-tailgating features help maintain a secure perimeter, and the rugged IP66 design ensures dependable performance in challenging environments. Whether upgrading a single door or expanding to multiple entrances, this model offers a reliable, future-ready access control solution.
