Description

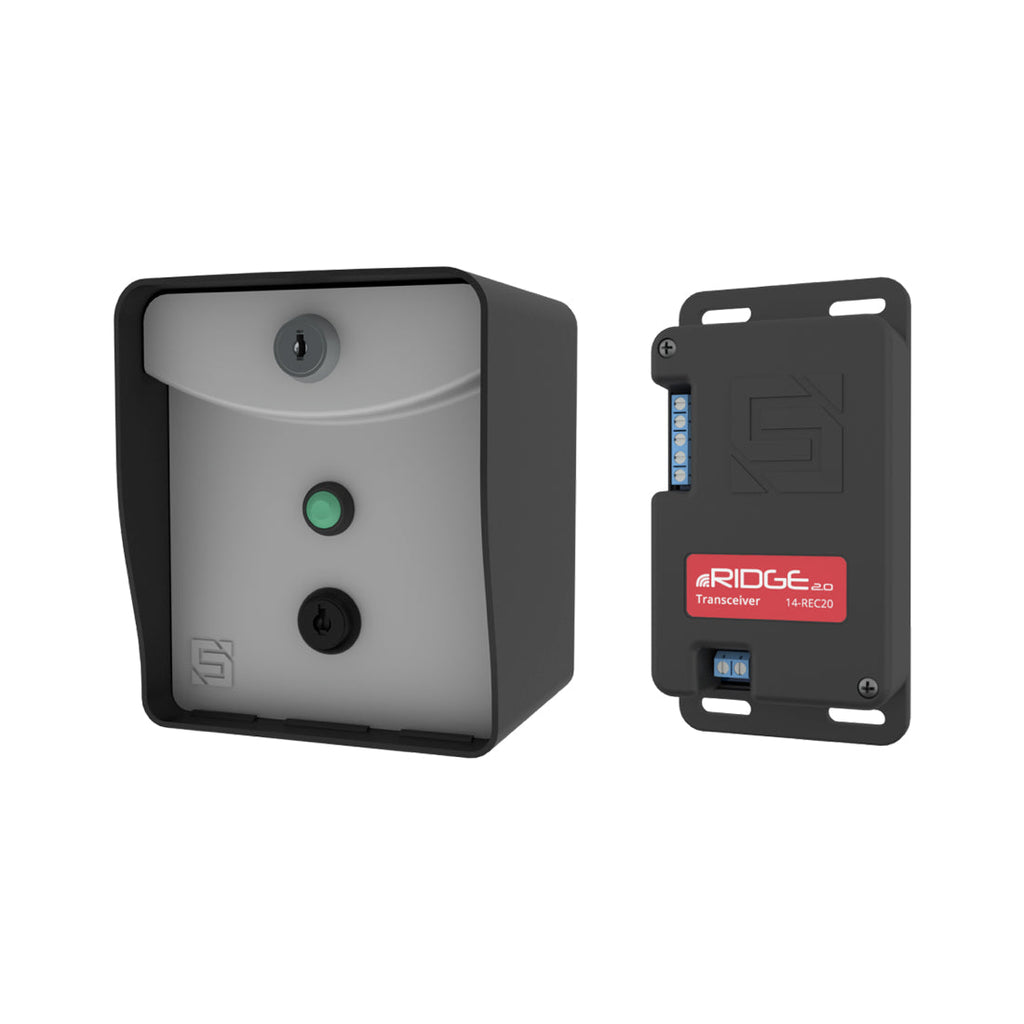

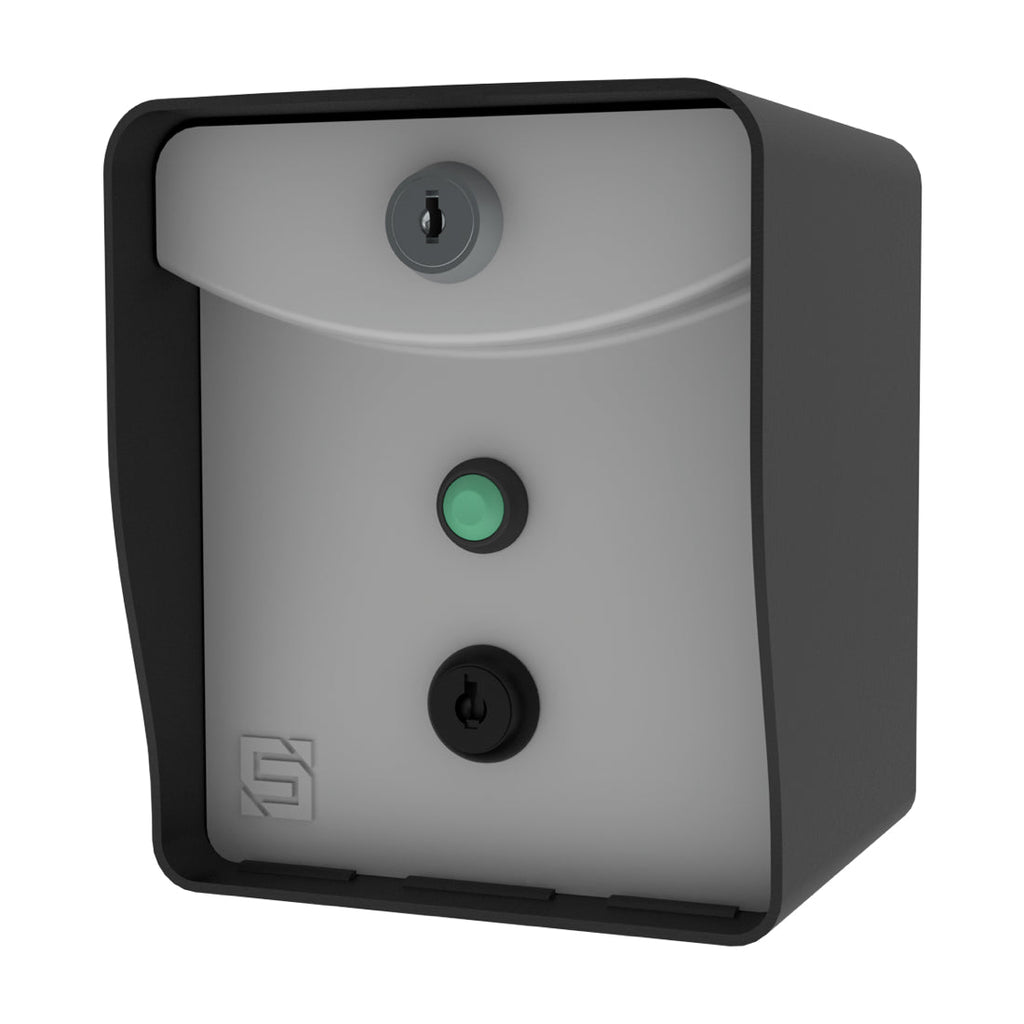

The Security Brands 14-RTE433 Wireless Exit Button Kit is a battery-powered, Ridge™ 433 MHz solution designed for gates, overhead doors, and secure entry systems. It offers a trench-free, push-button trigger that pairs with your existing gate operator or door opener for simple, reliable access control.
- Wireless Ridge™ 433 MHz Technology: Seamlessly trigger gate or door action from the push button without trenching or hardwiring, using dedicated Ridge™ 433 MHz communication.

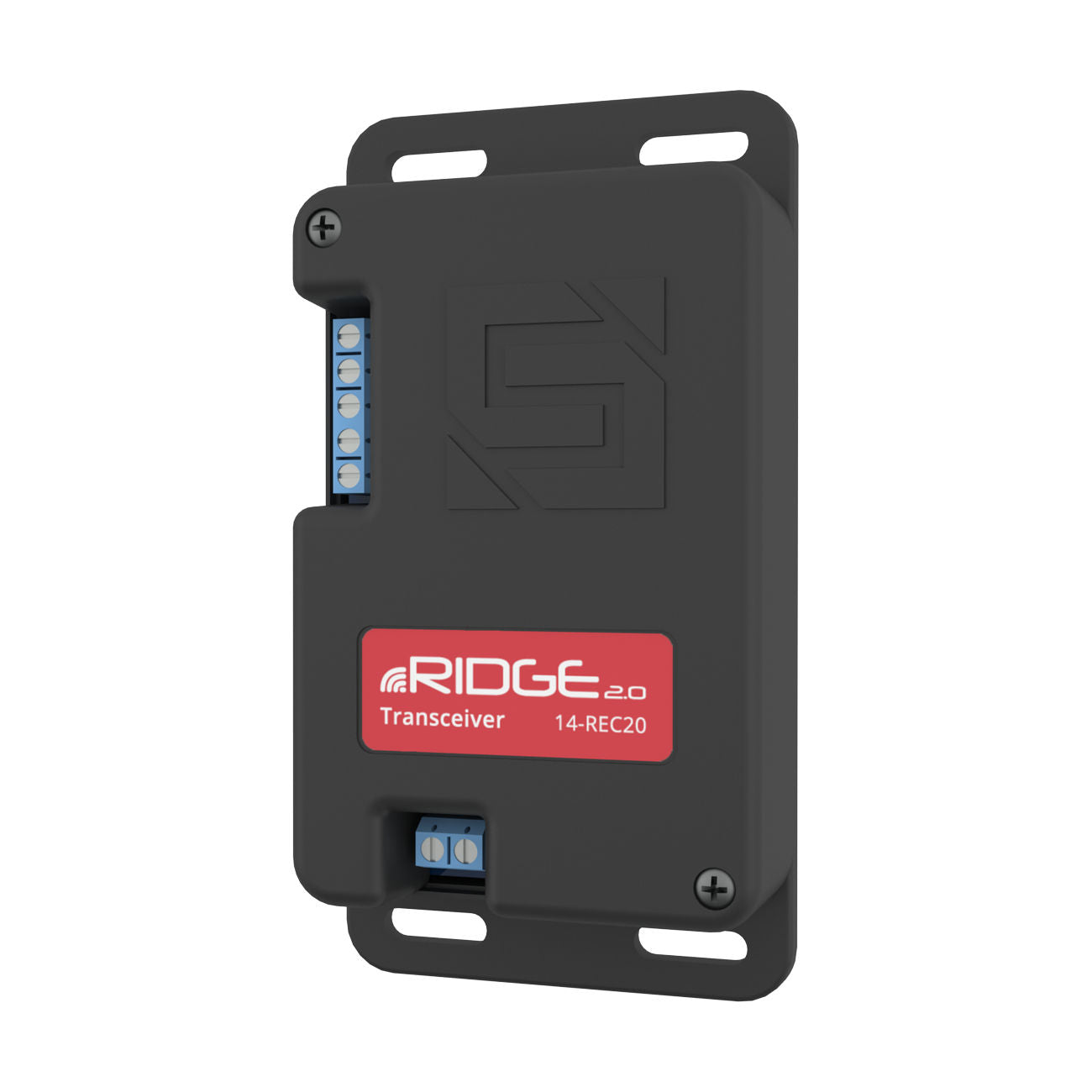

- Included Ridge™ Transceiver: Dedicated transceiver communicates wirelessly with your gate operator or door opener for quick and easy integration.
- Extended Wireless Range: Up to 200 feet line-of-sight between the button and transceiver for flexible, site-wide placement.
- Dual Relay Outputs: Control two devices (e.g., gate motor and auxiliary actuator) with programmable latch times to fit different access scenarios.
- LED Diagnostics: Power, signal, and relay status LEDs provide at-a-glance troubleshooting and quick diagnostics on-site.
- Key Switch Lockout: Included keys let you manually enable or disable the RTE unit to deter tampering.
- Weather-Resistant Enclosure: Durable polycarbonate housing protects electronics from rain, dust, and temperature swings.
- Battery Included: Pre-installed CR2032 battery powers the RTE unit for immediate use out of the box.
- Transceiver Power: 12–24 VAC/DC supply supports flexible installation with your access system.
- Programmable Relay Latched Time: Set relay activation from 1 to 999 seconds to align with your security policy.
- Solar-Friendly, Low Power: Ultra-low current draw enables solar-powered gate installations and longer life in remote locations.
- Mounting Flexibility: Surface-mount design with pedestal or wall compatibility to suit varied site layouts.
- Operating Temperature: Reliable operation from -15°F to 158°F (-26°C to 70°C) for outdoor use.
- Relay Output Rating: 2A at 30VDC / 0.5A at 120VAC, suitable for common gate and door actuators.
The 14-RTE433 delivers a practical, wire-free interface that simplifies access control for residential driveways and commercial entrances alike. With a robust range, two-device control, and solar-friendly, low-power operation, it’s ideal for retrofit projects and remote sites where wiring would be costly or impractical. The built-in diagnostics and tamper-resistant features help ensure secure, reliable operation day in and day out, while immediate power on makes it ready for use right away.
