Description

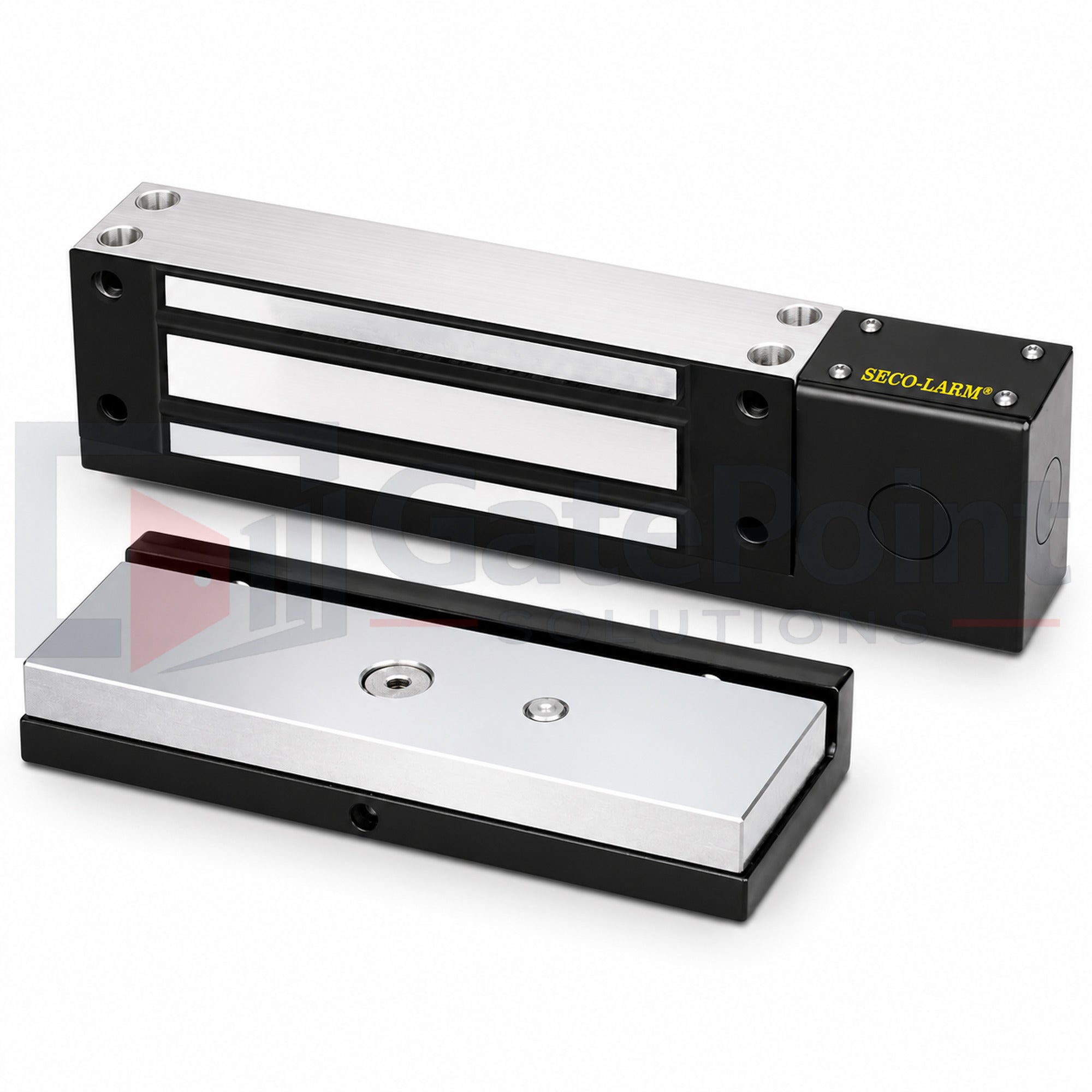

The Seco-Larm E-946FC-1K2SQ Electromagnetic Gate Lock is a heavy-duty 1,200-lb holding force magnetic lock designed for side (surface) mounting on sliding and swinging gates. Featuring weldable mounting brackets for both the magnet and armature plate, this lock provides a secure, professional installation while delivering reliable performance in demanding commercial, industrial, and high-security access control applications. It can be welded or bolted directly to the gate and installed horizontally or vertically for maximum installation flexibility.
Built for indoor and outdoor environments, the E-946FC-1K2SQ features an IP67 waterproof, vandal-resistant, maintenance-free design with a stainless-steel magnetic lock housing and corrosion-resistant zinc-plated brackets. Operating on 12 or 24VDC, this fail-safe electromagnetic lock automatically releases when power is removed, making it ideal for life-safety compliant access control systems.
Perfect for commercial properties, gated communities, apartment complexes, industrial facilities, warehouses, parking garages, and other perimeter security applications, this genuine Seco-Larm gate lock delivers dependable holding power and long-lasting durability.
Features
- 1,200-lb (544 kg) holding force
- Side (surface) mount weldable electromagnetic gate lock
- Designed for sliding and swinging gates
- Weld or bolt directly to steel gates
- Horizontal or vertical installation
- 12/24VDC selectable operation
- Low current draw (500mA @ 12VDC / 250mA @ 24VDC)
- IP67 waterproof and vandal-resistant
- Stainless-steel magnetic lock housing
- Zinc-plated weldable mounting brackets
- Maintenance-free, factory-sealed design
- Four-knockout junction box
- Fail-safe operation (unlocks when power is removed)
- Includes magnetic lock, mounting brackets, and installation hardware
- Lifetime limited warranty (U.S. & Canada)
Ideal Applications
- Commercial Gate Systems
- Industrial Facilities
- Gated Communities
- Apartment Complexes
- Parking Garages
- Warehouses
- Schools & Universities
- High-Security Access Control
