Description

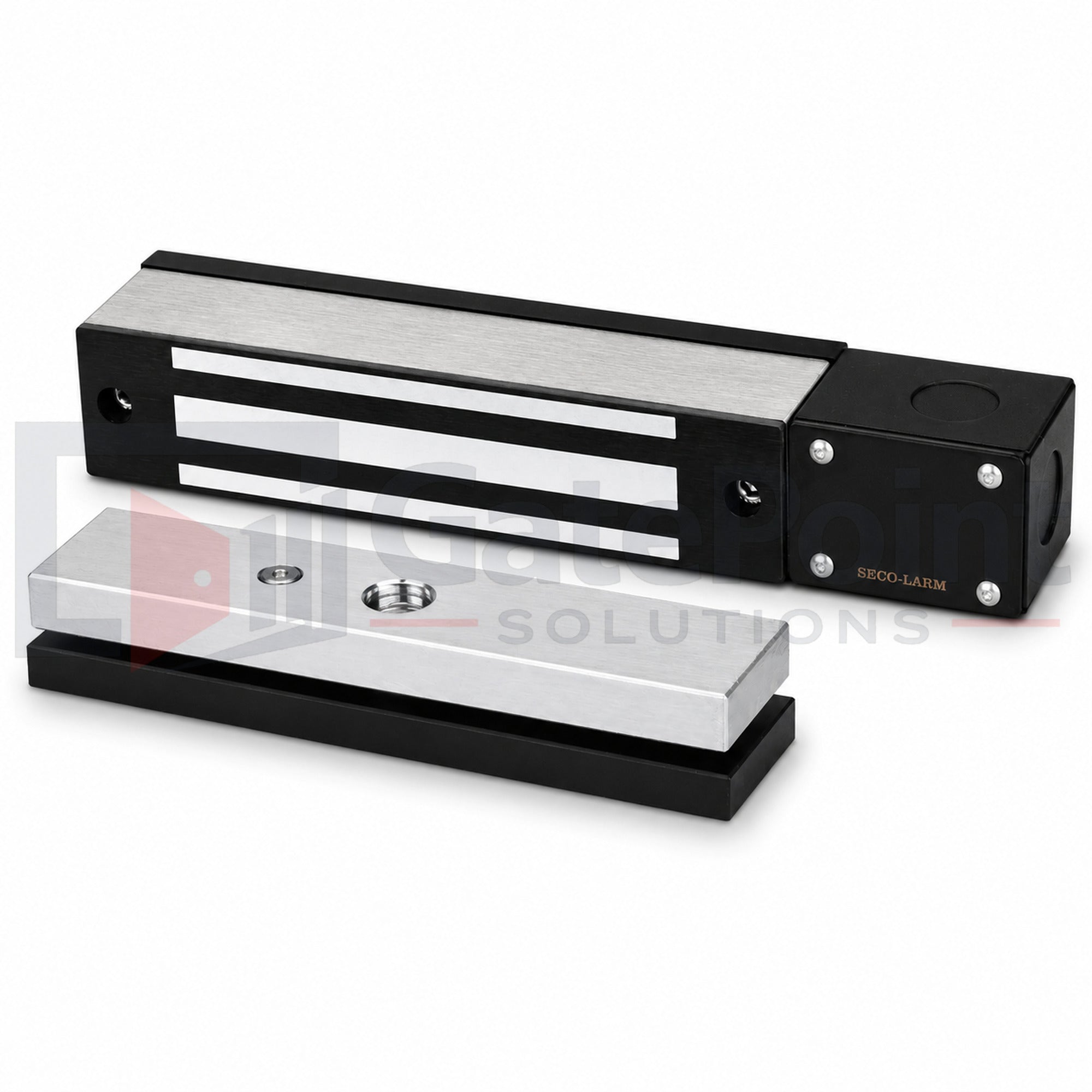

The Seco-Larm E-942FC-600SQ Electromagnetic Gate Lock is a heavy-duty 600-lb holding force magnetic lock designed for securing sliding and swinging gates in commercial, industrial, and residential access control applications. Featuring a face-mount weldable design, this lock includes zinc-plated weldable brackets for both the electromagnet and armature plate, allowing for a secure, professional installation on steel gates. It can be mounted horizontally or vertically for maximum installation flexibility.
Engineered for dependable indoor and outdoor performance, the E-942FC-600SQ features an IP67 waterproof, vandal-resistant, maintenance-free design with a stainless-steel magnetic lock housing and black-finished brackets that blend with most gate systems. Operating on 12 or 24VDC, it offers low current draw, fail-safe operation, and built-in surge protection for reliable long-term performance.
Ideal for automatic gate systems protecting gated communities, apartment complexes, commercial properties, industrial facilities, warehouses, schools, and parking areas, this genuine Seco-Larm magnetic gate lock delivers dependable security and easy installation.
Features
- 600-lb (272 kg) holding force
- Face-mount weldable electromagnetic gate lock
- Designed for sliding and swinging gates
- Weld or bolt directly to steel gates
- Horizontal or vertical mounting
- 12/24VDC selectable operation
- Low current draw (500mA @ 12VDC / 250mA @ 24VDC)
- IP67 waterproof and vandal-resistant
- Stainless-steel magnetic lock housing
- Zinc-plated weldable mounting brackets
- Four-knockout junction box
- Maintenance-free, factory-sealed design
- Fail-safe operation (releases when power is removed)
- Includes mounting hardware
- Lifetime limited warranty (U.S. & Canada)
Ideal Applications
- Commercial Gate Systems
- Residential Gate Systems
- Gated Communities
- Apartment Complexes
- Industrial Facilities
- Warehouses
- Schools & Universities
- Parking Facilities
