Description

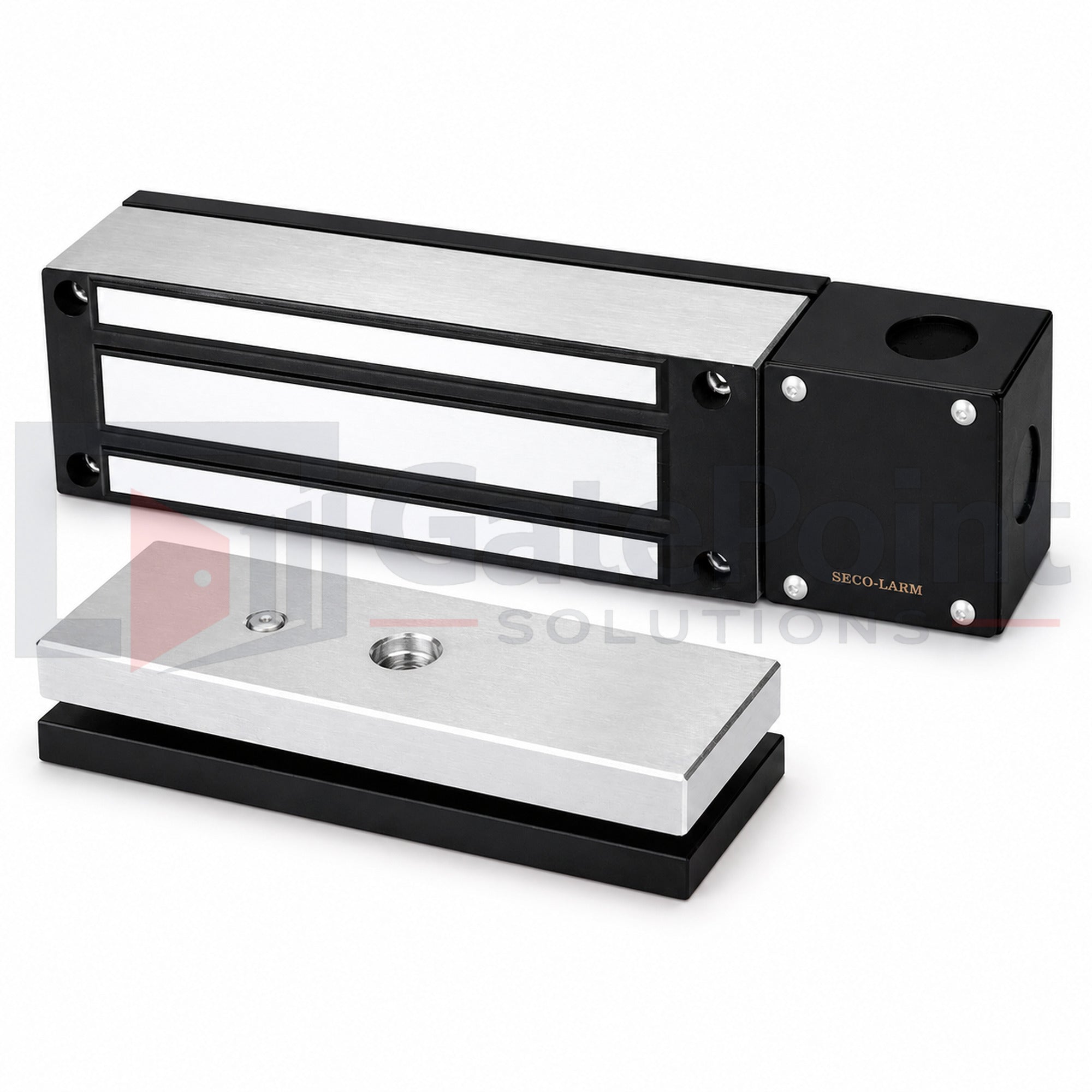

The Seco-Larm E-942FC-1K3SQ Electromagnetic Gate Lock is a heavy-duty 1,200-lb holding force maglock designed for securing sliding and swinging gates in commercial, industrial, and high-security access control applications. Featuring a face-mount weldable design, this lock includes weldable brackets for both the magnet and armature plate, allowing for a clean, secure installation on steel gates.
Built for demanding indoor and outdoor environments, the E-942FC-1K3SQ features an IP67 waterproof, vandal-resistant, maintenance-free construction with an attractive stainless-steel housing and black-finished brackets that blend seamlessly with most gates. The lock operates on 12 or 24VDC, includes built-in MOV surge protection, and provides fail-safe operation, automatically unlocking when power is removed for life safety compliance.
Ideal for automatic gates protecting commercial properties, gated communities, apartment complexes, industrial facilities, warehouses, and parking areas, this genuine Seco-Larm magnetic lock delivers dependable performance and long-lasting durability.
Features
- 1,200-lb (544 kg) holding force
- Face-mount weldable electromagnetic gate lock
- For sliding and swinging gates
- Weld or bolt brackets directly to the gate
- 12/24VDC selectable operation
- IP67 waterproof and vandal-resistant
- Stainless-steel magnetic lock housing
- Zinc-plated weldable mounting brackets
- MOV surge protection
- Maintenance-free, factory-sealed design
- Fail-safe operation (releases when power is removed)
- Includes mounting hardware and junction box
- Lifetime limited warranty (U.S. & Canada)
Ideal Applications
- Commercial Gate Systems
- Industrial Facilities
- Gated Communities
- Apartment Complexes
- Parking Facilities
- Warehouses
- Schools & Universities
- High-Security Access Control
