Description

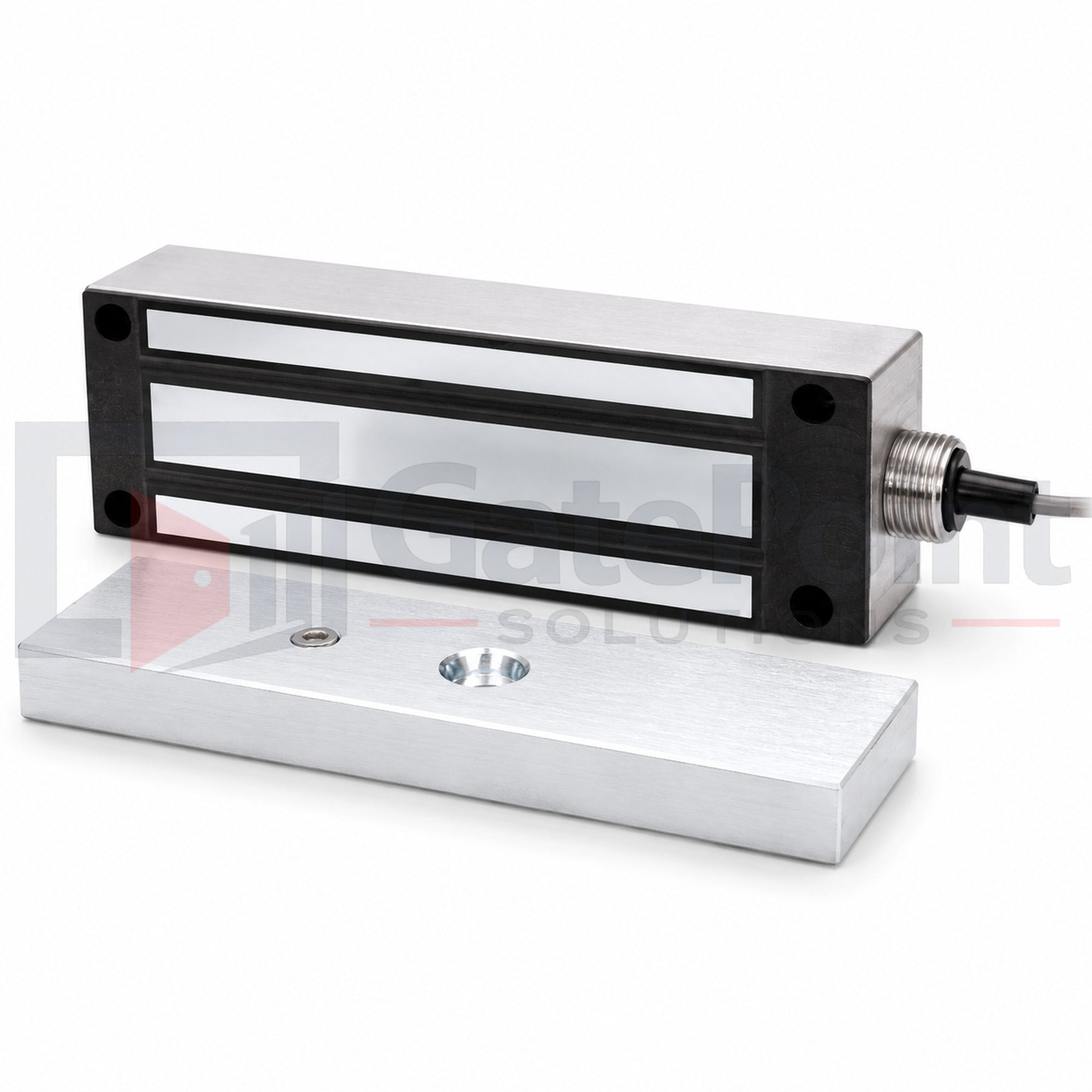

The Seco-Larm E-942FC-1300 Electromagnetic Gate Lock is a UL Listed 1,200-lb holding force magnetic lock designed for securing sliding and swinging gates in commercial, industrial, and high-security access control applications. Featuring a face-mount design, this heavy-duty electromagnetic lock provides reliable perimeter security for both indoor and outdoor installations while meeting multiple UL fire safety standards. It can be mounted horizontally or vertically to accommodate a wide range of gate configurations.
Built with a rugged stainless-steel housing, the E-942FC-1300 features an IP67 waterproof and vandal-resistant construction for dependable performance in harsh environments. The lock supports 12 or 24VDC selectable operation, includes built-in MOV surge protection, and offers fail-safe operation, automatically unlocking when power is removed for life-safety compliance. Complete mounting hardware is included for standard installations, with optional mounting brackets available for specialized applications.
Ideal for automatic gate systems protecting commercial properties, gated communities, apartment complexes, industrial facilities, warehouses, parking garages, and educational campuses, the genuine Seco-Larm E-942FC-1300 delivers dependable holding power with maintenance-free operation.
Features
- 1,200-lb (545 kg) holding force
- UL Listed face-mount electromagnetic gate lock
- Designed for sliding and swinging gates
- Horizontal or vertical installation
- 12/24VDC selectable operation
- IP67 waterproof and vandal-resistant
- Stainless-steel housing
- Built-in MOV surge protection
- No residual magnetism
- Maintenance-free, factory-sealed design
- 6.5-ft (2 m) hookup cord
- Complete mounting hardware included
- Optional mounting brackets available
- Fail-safe operation (unlocks when power is removed)
- Lifetime limited warranty (U.S. & Canada)
Ideal Applications
- Commercial Gate Systems
- Industrial Facilities
- Gated Communities
- Apartment Complexes
- Parking Garages
- Warehouses
- Schools & Universities
- High-Security Perimeter Access Control
