Description

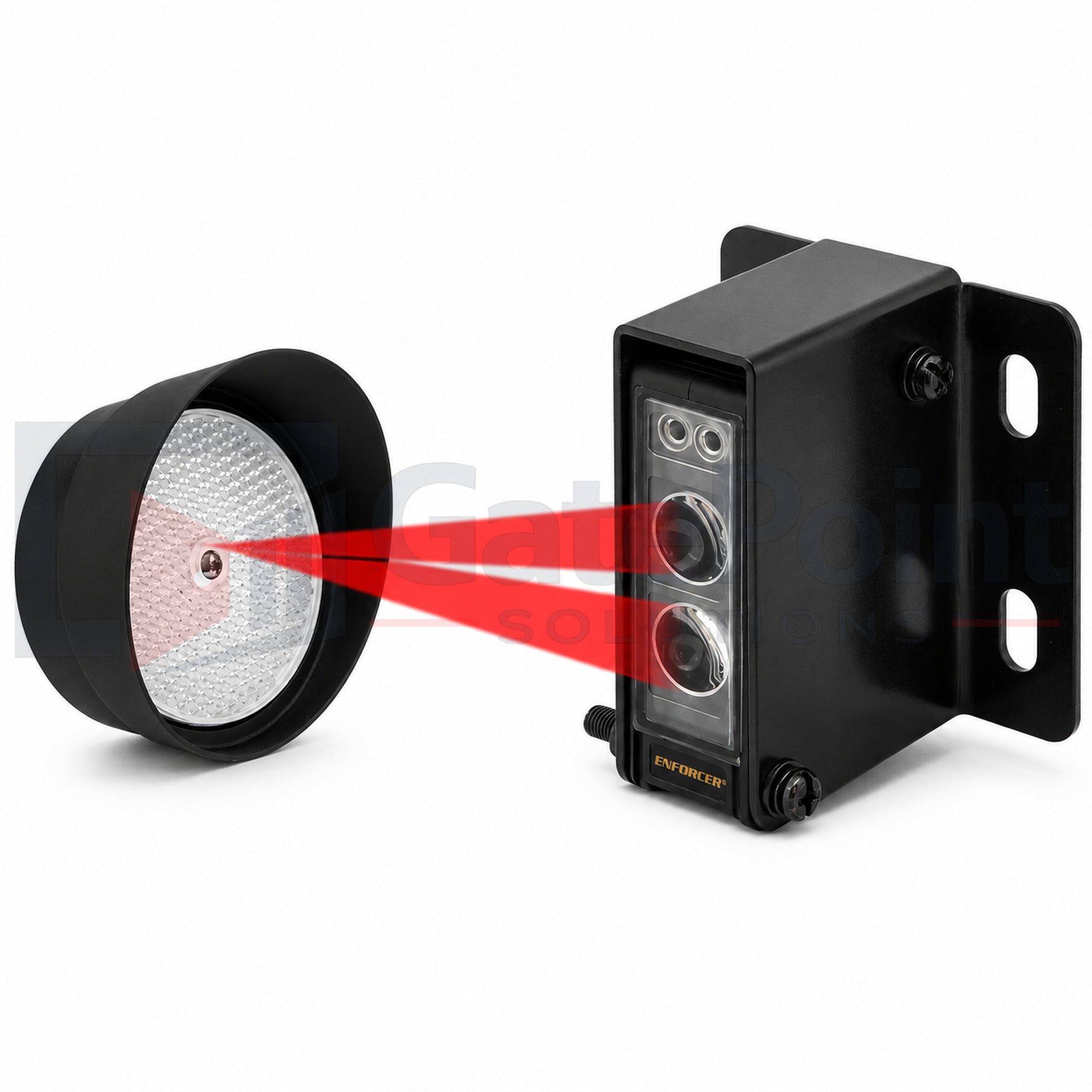

The SECO-LARM E-936-S45RRGQ Reflective Photoelectric Beam Sensor is an ETL UL325-compliant monitored photoeye designed for automatic gate operators, garage doors, overhead doors, access control systems, and perimeter security applications. Utilizing retro-reflective infrared beam technology, this sensor provides dependable obstacle detection with a sensing range of up to 45 feet, helping improve safety and reliability in both residential and commercial installations.
Designed for outdoor gate safety applications, the E-936-S45RRGQ requires wiring only at the sensor location while utilizing an included reflector, reducing installation complexity and labor costs. The sensor continuously monitors the beam path and instantly detects vehicles, pedestrians, or obstructions crossing the protected area.
The rugged IP66 weatherproof housing is engineered to withstand harsh environmental conditions including rain, dust, humidity, and extreme temperatures. With ETL UL325 compliance, built-in monitoring resistor technology, and fast response times, this photoeye is an excellent choice for modern gate operator safety systems requiring monitored entrapment protection.
Key Features
- ETL UL325 compliant monitored photoeye
- Retro-reflective photoelectric beam technology
- Up to 45 ft sensing range
- IP66 weatherproof enclosure
- Includes reflector
- Built-in 10kΩ monitoring resistor
- Fast 10ms response time
- SPDT relay output (NO/NC/COM)
- Adjustable sensing range
- Pre-wired 6.5 ft cable
- Compact design for easy installation
- Indoor and outdoor rated
Ideal Applications
- Automatic gate operators
- UL325 monitored entrapment protection
- Swing gates
- Slide gates
- Garage doors
- Overhead doors
- Vehicle detection systems
- Parking facilities
- Access control systems
- Commercial and residential perimeter security
Specifications
- Model: E-936-S45RRGQ
- Technology: Retro-Reflective Photoelectric Beam Sensor
- Compliance: ETL UL325
- Sensing Range: 0.5 ft – 45 ft (0.2m – 14m)
- Operating Voltage: 12-30V DC/AC, 60Hz
- Current Draw:
- Standby: 70mA @12VDC
- Active: 55mA @12VDC
- Response Time: 10ms
- Output: SPDT Relay Output (NO/NC/COM)
- Built-In Resistor: 10kΩ on N.O. Output
- Switching Capacity: 2A @ 30VAC/VDC
- Protection Rating: IP66 Weatherproof
- Operating Temperature: -4°F to 131°F (-20°C to 55°C)
What's Included
- SECO-LARM E-936-S45RRGQ Beam Sensor
- Reflector
- Mounting Hardware
- Pre-Wired Cable
- Installation Documentation
