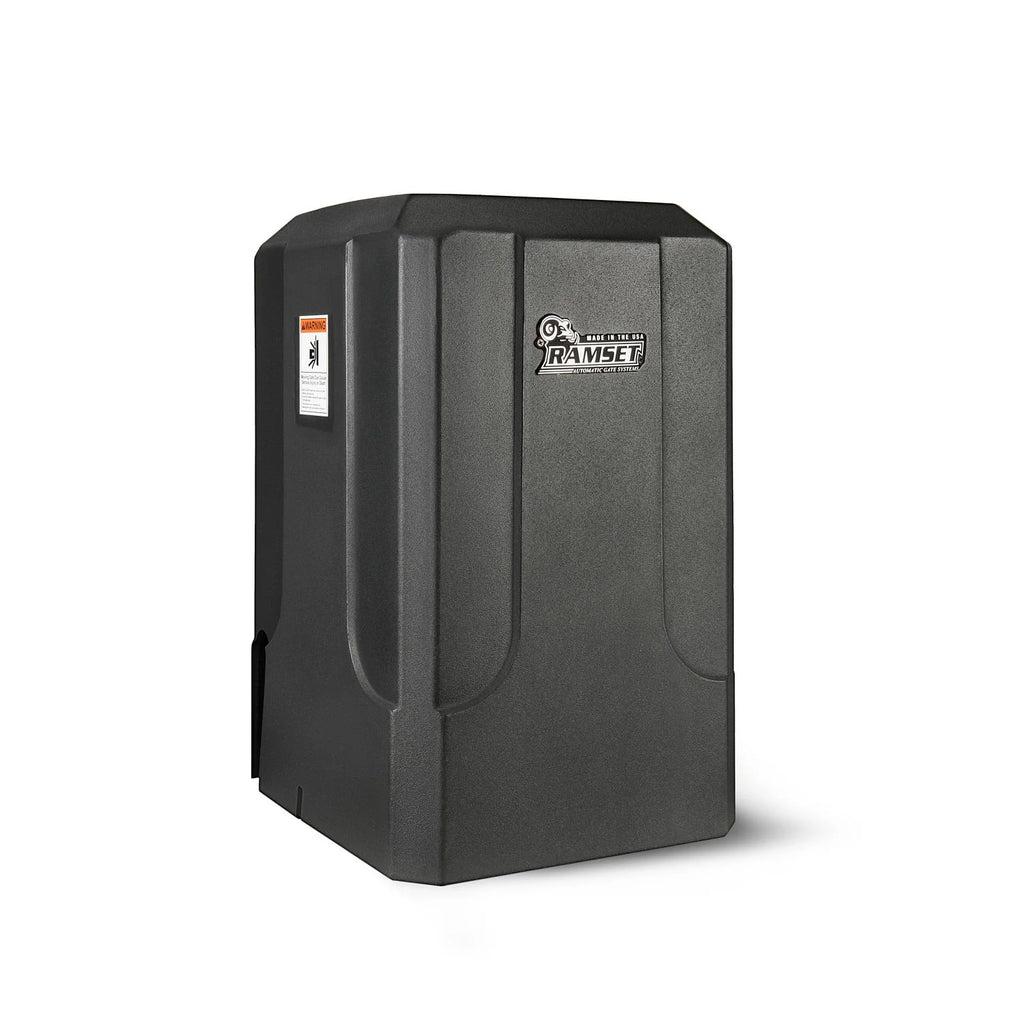

Ramset Ram 5700 Commercial/Industrial Slide Gate Operator 24VDC

The Ramset Ram 5700 Commercial/Industrial Slide Gate Operator is built for heavy-duty access control, delivering reliable, smooth gate motion for facilities that demand safety and durability. Designed to handle gates up to 40 feet and 5,000 pounds, it combines robust power with thoughtful safety and installation features to minimize downtime.

• Max Gate Weight: 5,000 lbs
• Max Gate Travel: 40 ft
• Compliance: UL 325 compliant
• Motor: Brushless 24 VDC, 25 Amps
• Gate Speed: 12 inches per second
• Power Supply: 115 VAC single-phase or 230 VAC
• Battery Backup: (2) 7Ah 12VDC batteries for operation during power loss
• Emergency Release: Foot pedal for manual gate operation in emergencies
• Soft Start & Slow Stop: Ensures smooth, gradual motion and reduced wear
• Installation Convenience: EP Learn Mode to simplify photoeye setup
• Direction Control: Left/Right switch to adapt to installation layout
• Close Delay: Adjustable timer to match site requirements
• Fail-Safe Option: When battery is at 90% and AC is unavailable, choose to fail open or closed
• Dimensions & Weight: 18.5" W x 16.5" D x 27" H; Shipping weight 183 lbs

The Ram 5700 is engineered for dependable, long-term performance in demanding environments. The built-in battery backup keeps gates moving during power interruptions, providing critical access continuity for facilities like warehouses, distribution centers, campuses, and manufacturing sites. With soft start and slow stop, the system reduces stress on the gate, hinges, and mechanical components, extending overall life and lowering maintenance costs. The EP Learn Mode and photoeye-friendly design minimize installation time, while the adjustable close delay and fail-safe options give you precise control over how the gate behaves in different situations. Whether you’re retrofitting an existing gate or deploying a new installation, the Ram 5700 delivers consistent, secure operation with practical, site-ready features.
