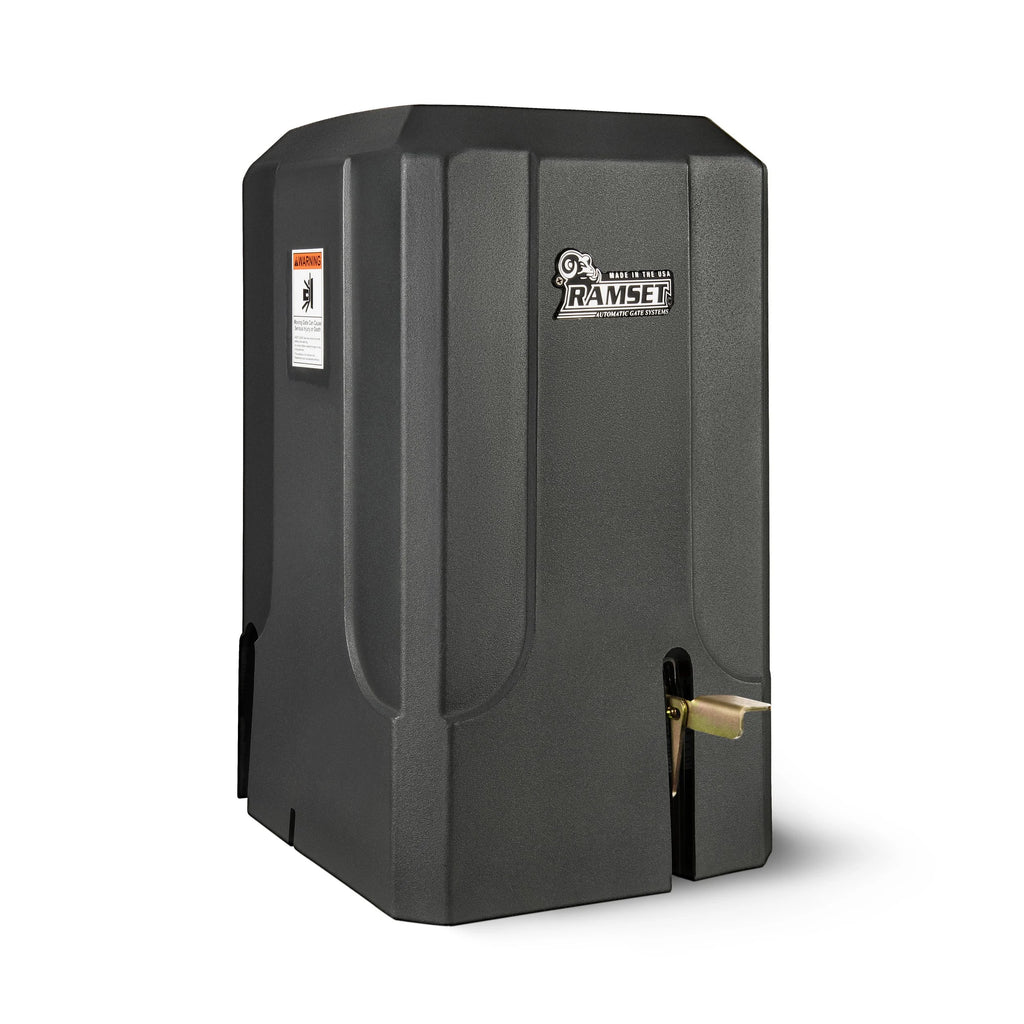

Ramset Ram 5500 Commercial/Industrial Slide Gate Operator 24VDC

The Ramset Ram 5500 is a commercial/industrial slide gate operator built to handle demanding access control needs. Designed for heavy-duty facilities, it delivers smooth, reliable motion with smart power management and practical field features.

• Motor: Brushless 24 VDC motor rated at 25 A for consistent, efficient operation.
• Soft Start & Slow Stop: Gradual acceleration and deceleration to protect gate hardware and reduce wear.
• Battery Backup System: (2) 7Ah 12VDC batteries keep the gate moving during power outages until power returns.
• Emergency Foot Pedal Release: Manual override to open the gate in an emergency.
• EP Learn Mode: Installer-friendly mode to simplify precise photoeye alignment during setup.
• Left/Right Installation Switch: Easily adapt the unit’s orientation with a simple selection.
• Close Delay: Adjustable timer to tailor closing behavior to your site requirements.
• Fail Safe / Secure: When AC is unavailable and battery is at 90% capacity, choose open or closed position to suit your security needs.
• Unit specs: Max Gate Weight 4,000 lbs; Max Gate Length 45'; Gate Speed 12" per second; VAC 115V single phase; Battery Backup System (2) 7Ah 12VDC; Dimensions 16.5" W x 14.5" L x 22" H; Shipping Weight 157 lbs.

Engineered for performance in busy environments, the Ram 5500 supports high-traffic entrances with dependable power management. It’s ideal for warehouses, loading docks, distribution centers, and any facility requiring secure, automated gate access. The combination of fast yet controlled gate motion, battery-backed operation, and installer-friendly setup means less downtime and easier maintenance compared with traditional gate operators.
