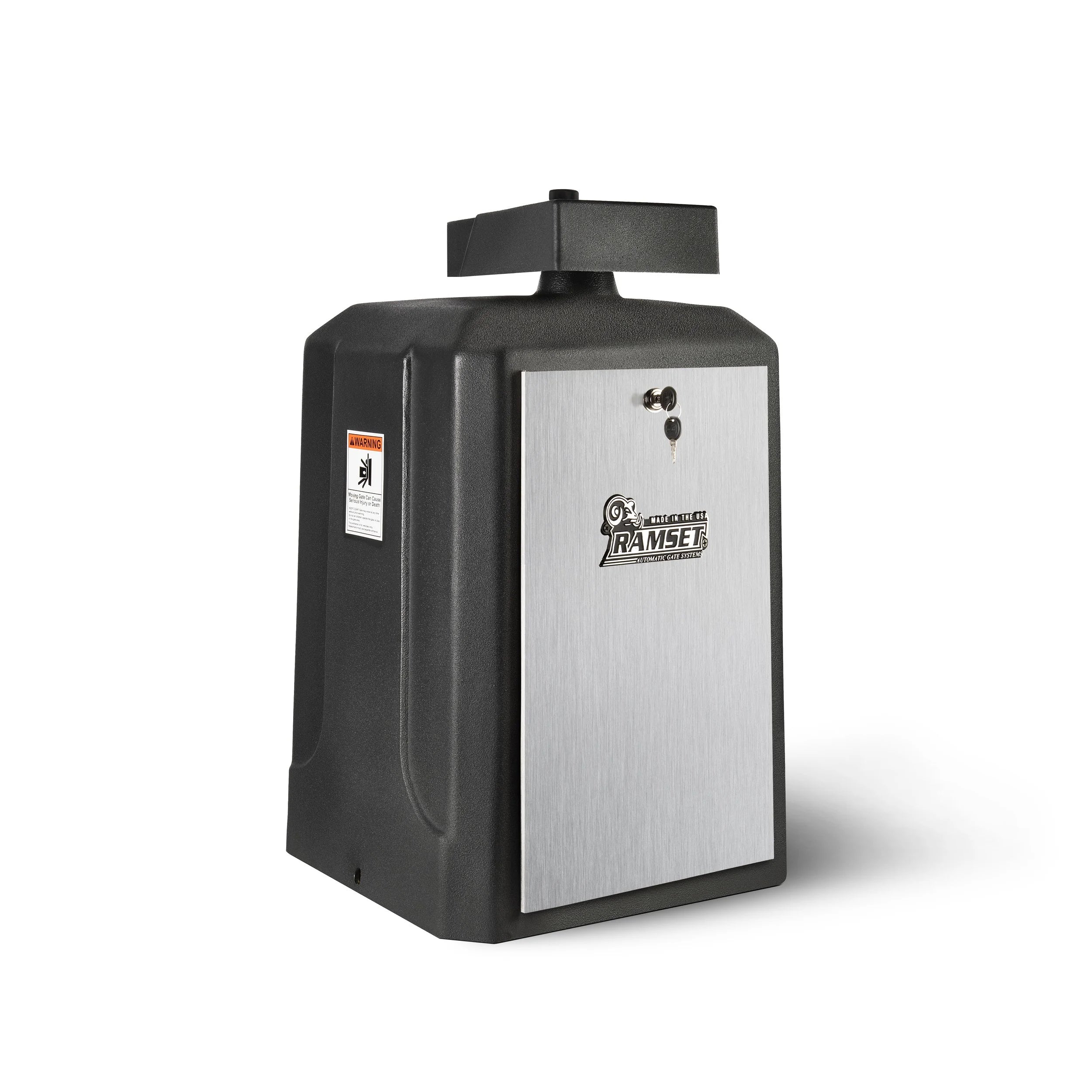

Ramset Ram 3100 Commercial/Industrial Swing Gate Operator 24VDC

Powerful and reliable, the Ramset Ram 3100 Commercial/Industrial Swing Gate Operator is built for high-traffic entrances. Designed for heavy-duty facilities, it handles gates up to 2,500 lb with up to 22 ft of travel, all while prioritizing safety and smooth operation with a 24VDC brushless motor.

• UL 325 Compliant: Meets industry safety standards for commercial gate operators, giving you tested protection and peace of mind.
• Gate Travel: Supports up to 22 feet of movement, ideal for wide entrances and shared access points.
• Max Gate Weight: Handles gates weighing up to 2,500 pounds for robust, heavy-duty applications.
• Brushless 24 VDC Motor: Efficient and durable performance with a 25 A draw for consistent, reliable operation.
• Voltage: 115 VAC single-phase power input for straightforward integration with standard electrical systems.
• Battery Backup System: (2) 7Ah 12VDC batteries keep the gate functional during power outages for a limited period.
• Emergency Foot Pedal Release: Manually open the gate in emergencies or when power is unavailable.
• Easy Installation: EP Learn Mode simplifies photoeye alignment and setup during installation.
• Left/Right Installation Switch: Quick orientation change to fit the site layout with a simple toggle.
• Close Delay: Adjustable timer to tailor gate closing behavior to each installation and safety requirement.
• Fail Safe Position: When the battery is at 90% capacity and AC power is out, you can choose to fail open or fail closed based on site needs.
• Safety and Reliability: Slow start and soft stop reduce abrupt starts/stops, extending gate life and minimizing impact.
• Unit Specs: 18" W x 23" D x 28.5" H; Shipping weight 201 lb; Max Gate Travel 22'; Max Gate Weight 2,500 lb; Motor: Brushless 24 VDC, 25 A; VAC 115, Single Phase; Battery Backup: (2) 7Ah 12VDC

The Ram 3100 is purpose-built for facilities like warehouses, loading docks, and gated properties where dependable access control is critical. Its combination of battery backup, manual release, and adjustable settings means you get controlled access without sacrificing safety or convenience. If you manage a gated entry that demands robust performance, straightforward installation, and compliant operation, this gate operator is engineered to deliver consistent results day after day.
