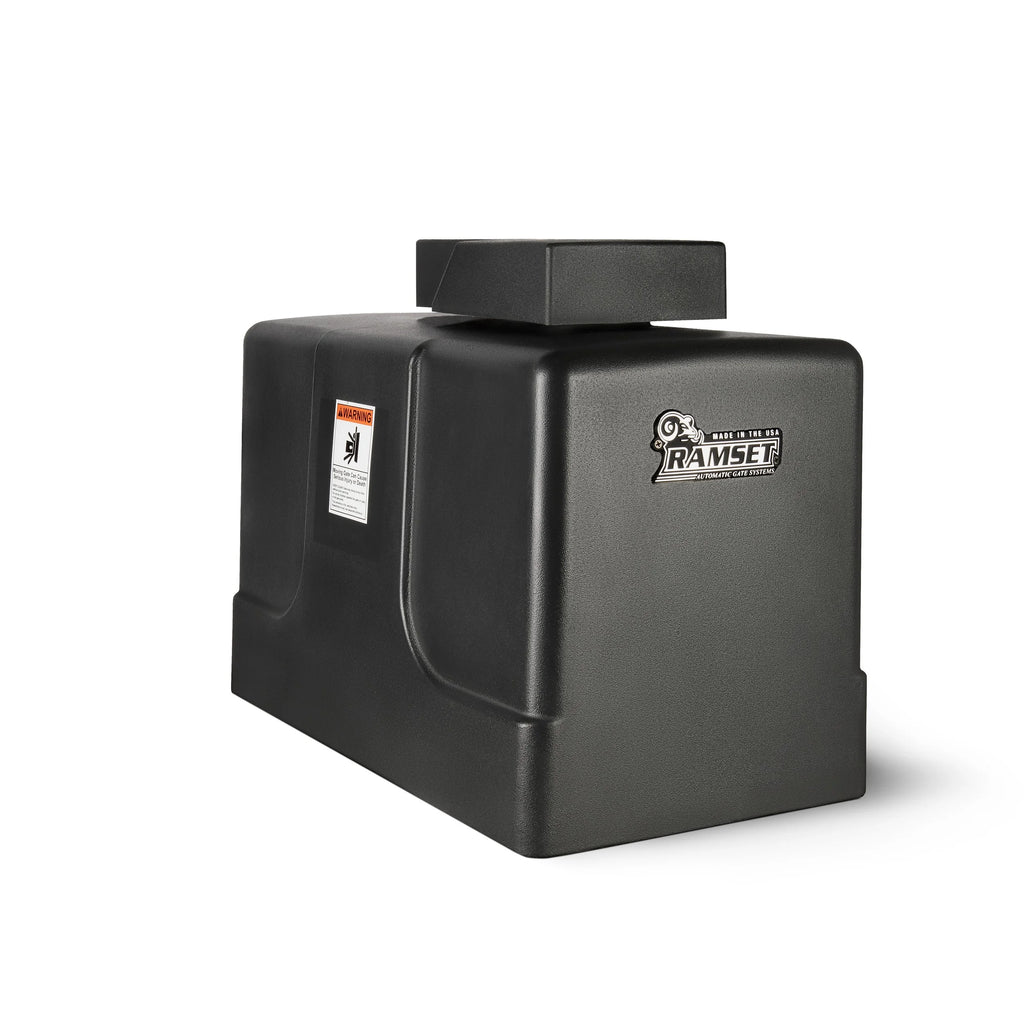

Ramset Ram 302 Residential/Commercial Swing Gate Operator 24VDC

The Ramset Ram 302 Residential/Commercial Swing Gate Operator is a 24VDC automatic opener built to handle demanding entrances with reliability, smooth operation, and smart installer features for both homes and small to mid-size commercial properties.

• Max Gate Weight: 1,200 lbs
• Max Gate Length: 18 ft
• Motor: Brushless 24 VDC, 13 amps
• Gate Speed: 12 in per second
• Electrical Power: VAC 115, single phase
• Battery Backup System: (2) 7Ah 12VDC batteries
• Dimensions (W x L x H): 13.5" x 23" x 16.5"
• Shipping Weight: 136 lbs
• Certifications: ETL Listed, UL 325 Compliant
• Soft Start & Slow Stop: Delivers smooth gate movement for reduced wear and a better user experience
• EP Learn Mode: Installer-friendly mode that simplifies photoeye setup
• Left/Right Installation Switch: Easily switch installation direction with the press of a button
• Close Delay: Adjustable timer to tailor opening/closing timing to your site
• Fail Safe / Secure: When power is unavailable and the battery reaches 90% capacity, you can choose to fail open or fail closed

The Ram 302 DC Gate Operator is designed to keep access under control even during outages. Its 24 VDC brushless motor provides steady, reliable performance, while the built-in battery backup ensures the gate can operate for a period when mains power is interrupted. With a max gate weight of 1,200 lbs and 18 ft travel, this unit suits busy driveways and medium-duty commercial entrances. Safety and compliance are front and center with UL 325 and ETL listings, so you get a proven, standards-aligned solution. The installer-focused features—EP Learn Mode, Left/Right switch, and adjustable Close Delay—mean faster, easier setup and tuning. The configurable fail-safe option gives you control over gate behavior during power loss, helping you meet site-specific security requirements.
