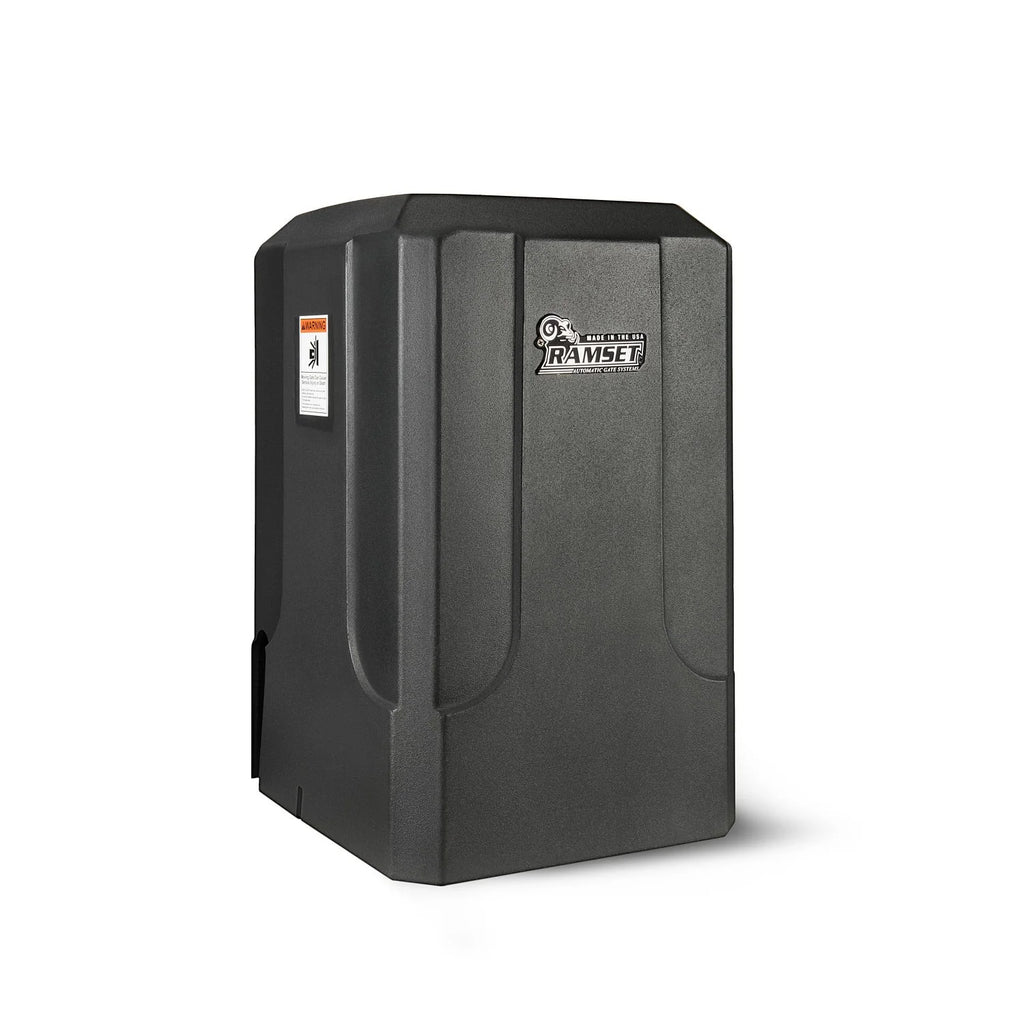

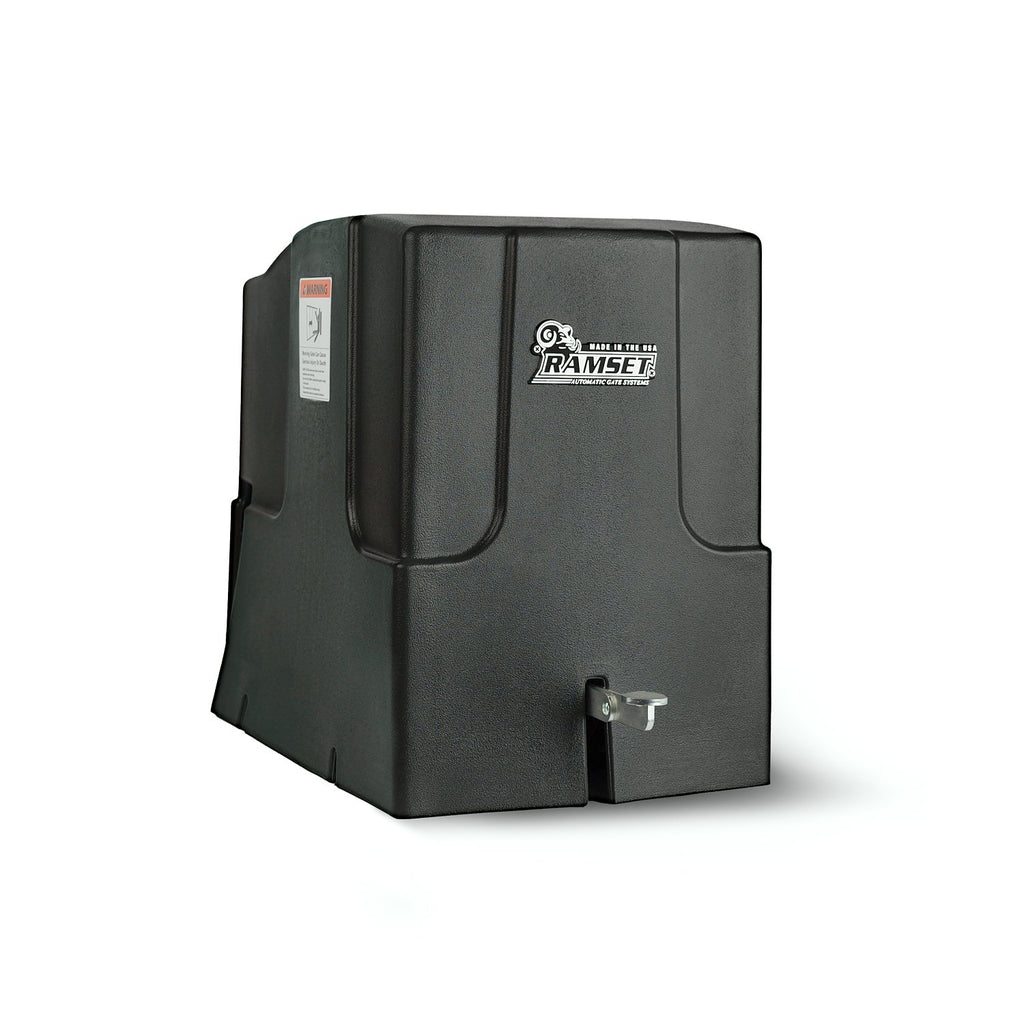

Ramset Ram 101 Residential/Commercial Slide Gate Operator 24VDC

Meet the Ramset Ram 101, a robust 24VDC slide gate operator designed for both residential and commercial settings. It powers gates up to 35 feet long and 1,800 lbs with smooth, controlled motion and built-in backup power for reliable operation during outages.

• Max Gate Travel: 35 ft
• Max Gate Weight: 1,800 lbs
• Compliance: ETL Listed and UL 325 Compliant for safety and reliability
• Motor: Brushless 24 VDC, 13 Amps
• Gate Speed: 12 inches per second
• Power: 115 VAC, single-phase
• Battery Backup System: (2) 7Ah 12VDC batteries to keep the gate operating during power loss
• Dimensions: 15" W x 14.5" L x 22" H
• Shipping Weight: 114 lbs
• Emergency Release: Emergency foot pedal release for manual operation during emergencies
• Installation Convenience: EP Learn Mode simplifies photoeye setup; Left/Right Switch allows quick change of installation direction
• Close Delay: Adjustable timer to suit each installation
• Fail Safe/Secure: If AC power is unavailable and the battery reaches 90% capacity, you can choose to fail open or closed depending on site needs
• Safety & Motion: Slow stop and soft start to minimize wear and provide smooth, quiet operation

The Ram 101 is engineered for dependable access control. The integrated battery backup ensures gate operation during outages, reducing downtime and frustration for users and visitors. Soft start and slow stop protect the mechanism and nearby people or vehicles, while the emergency release provides a reliable manual option in case of power or system issues. Installers will appreciate the EP Learn Mode for quick photoeye setup and the Left/Right Switch to accommodate different installation orientations. The adjustable close delay lets you tailor cycles to traffic patterns, and the configurable fail position supports site-specific security requirements. With UL 325 compliance and ETL listing, you get a trustworthy, durable solution for high-traffic entrances that demand consistent performance.
