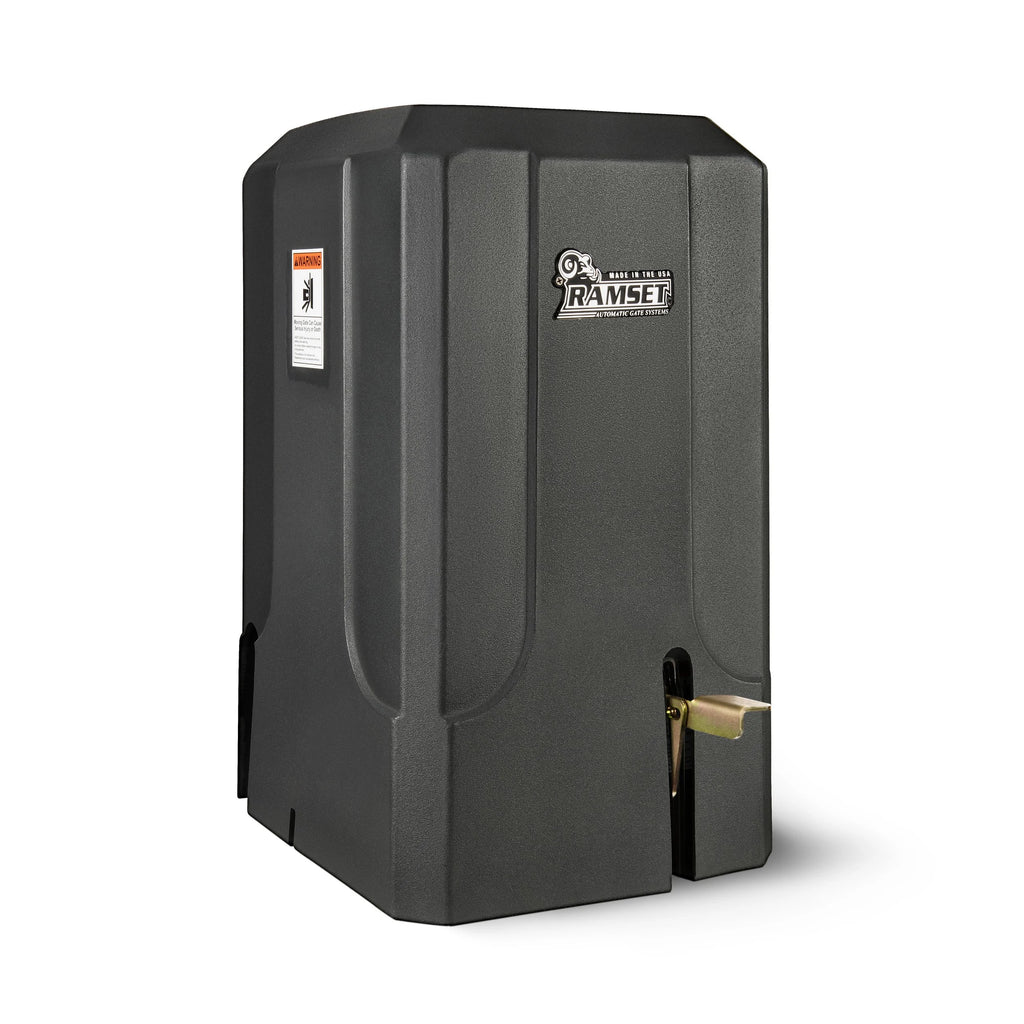

Ramset Ram 1000 Commercial/Industrial Slide Gate Operator 115VAC

Powerful, industrial-grade slide gate operator designed for commercial and industrial entrances. The Ramset Ram 1000 handles gates up to 1,500 lb and 45 ft, delivering reliable, safe access for high-traffic properties.

• Power & electrical: 1/2 HP motor, 115 VAC, 4.5 A, single-phase performance tuned for heavy-use gates.
• Gate capacity: Supports gates up to 1,500 lbs and up to 45 ft in travel, ideal for large commercial installations.
• Compliance & safety: ETL Listed and UL 325 compliant; external entrapment protection devices are required to meet UL 325 safety standards (installer will specify appropriate devices).
• Emergency manual release: Emergency Foot Pedal Release lets you manually operate the gate during power loss or emergencies.
• Installation & configuration: EP Learn Mode simplifies installing photoeyes; Left/Right switch configures travel direction; Close Delay provides an adjustable timer to fit your site.
• Operating modes: One Pass enables immediate closure on entry; continuous duty with a gate speed of 12" per second for smooth, reliable operation.
• Smart home compatibility: Relay connection on the board allows easy integration with compatible smart devices for automated access control.
• Unit specs: RAM 100 AC class industrial/commercial; Max Gate Weight 1,500 lbs; Max Gate Length 45'; Motor 1/2 HP, 115 VAC, 4.5 A; Cycles Continuous; Gate Speed 12" per second; VAC 115; Battery Backup System dimensions 16.5" x 14.5" x 22"; Shipping Weight 125 lbs; Emergency Release Foot Pedal included.

This gate operator is built for reliability in demanding environments, making it well-suited for commercial parking lots, warehouses, gated communities, and facility campuses. Its sturdy construction, UL 325 safety alignment, and smart integration options help you reduce manual workload, improve security, and tailor operation to your traffic patterns. The emergency release and adjustable settings provide peace of mind during outages or maintenance, while the EP Learn Mode and travel-direction switch streamline installation for installers and property managers alike.
