Description

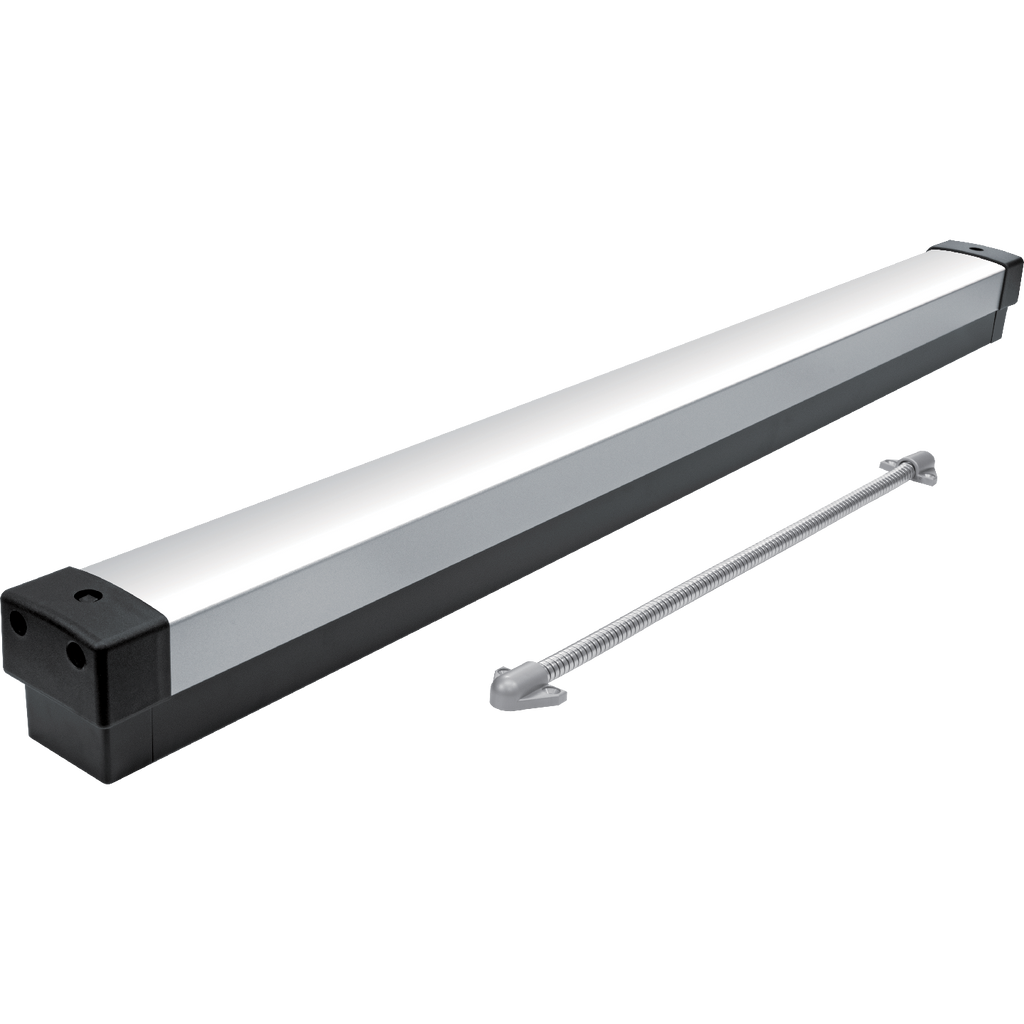

The Push-to-Exit Bar is a rugged, field-cuttable exit device designed for interior doors in commercial settings. It provides reliable momentary signaling to release the lock or sound an alarm when pressed, delivering fast egress with clear, actionable feedback.
- Electrical contacts: Two built-in non-latching dual-contact switches (SPDT: NO/NC/COM), rated 5A at 24VAC/VDC, enabling clean integration with lock release and/or alarm signaling.
- Push action: Momentary operation—pressing the bar sends a signal without latching, ensuring quick, repeatable activation every time.
- Door width compatibility: Designed for 36" doors with an actual length of 34-1/2"; field-cuttable to match non-standard widths for a precise fit.
- Construction: Rugged, heavy-duty aluminum bar with a black base and trim (also available in a silver finish) for durable interior use and a professional look.
- End caps and installation: End caps come off and go on in seconds, simplifying on-site adjustments during installation.
- Includes: Armored door cord included for enhanced reliability and secure signaling.
- Mounting: Hardware included for easy mounting on both metal and wood doors, supporting common interior door configurations.
- Weather rating: Not weatherproof; do not mount on exterior surfaces or where exposed to rain or moisture.
- Color/Finish options: Available in attractive silver or black aluminum finishes to match interior decor and hardware.
- Unit specs: Length is 34-1/2" actual (fits 36" doors); field-cuttable to match non-standard widths; two SPDT momentary switches (NO/NC/COM); 5A at 24VAC/VDC; armored door cord included; mounting hardware for metal or wood doors; not weatherproof.
This Push-to-Exit Bar is ideal for interior high-traffic areas where quick, reliable door release or audible signaling is critical. Its field-cut capability reduces installation time on non-standard doors, while the dual-contact switches provide flexible integration with access control systems. Use it to improve safety, streamline egress, and maintain a clean, professional appearance in hallways, classrooms, offices, or retail interiors.
