Description

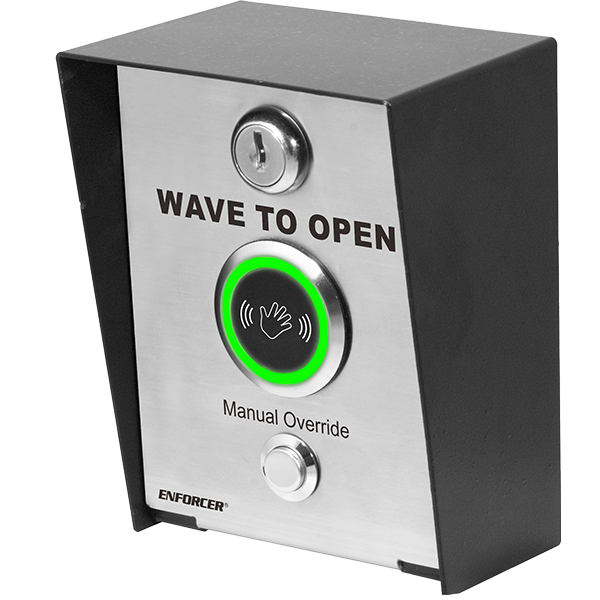

The Post-Mount Wave-to-Open Sensor with Access Box is a rugged, outdoor-ready access-control solution designed for gateways, doors, and entry points that require reliable, hands-free operation.
- Unit specs: Adjustable sensor range up to 7" (18 cm); IP65 Weatherproof enclosure; stainless steel mounting plate with hinged access for easy wiring; 1A relay; adjustable trigger duration 0.8–30 seconds (or toggle mode); gooseneck- or wall-mountable design; manual override button; LED-illuminated sensor area; selectable LED colors on activation; Includes heavy-duty steel box.
- UL 294 / ETL compliant: Conforms to UL Standard 294 and ETL-listed for safe, compliant access-control installations.
- Adjustable sensor range: Fine-tune sensing distance up to 7" (18 cm) to fit doorway width and pedestrian or vehicle flow.
- Weatherproof enclosure: IP65-rated protection ensures reliable performance against rain, dust, and temperature shifts in outdoor environments.
- Stainless steel mounting plate: Durable, corrosion-resistant surface designed for long-term outdoor use.
- Hinged plate design: Simply remove the plate from the box for swift wiring and service without major disassembly.
- 1A relay output: Reliable switching to drive door operators, gate actuators, or other access-control devices.
- Adjustable trigger duration: Set a precise open interval from 0.8 to 30 seconds, or opt for toggle mode to suit your site needs.
- Mounting options: Gooseneck- or wall-mountable to accommodate a variety of installation geometries and sightlines.
- Manual override button: Local control capability when automatic sensing isn’t desired or during maintenance.
- LED-illuminated sensor area: Clear visual indication of sensor activity, aiding alignment and verification in low light.

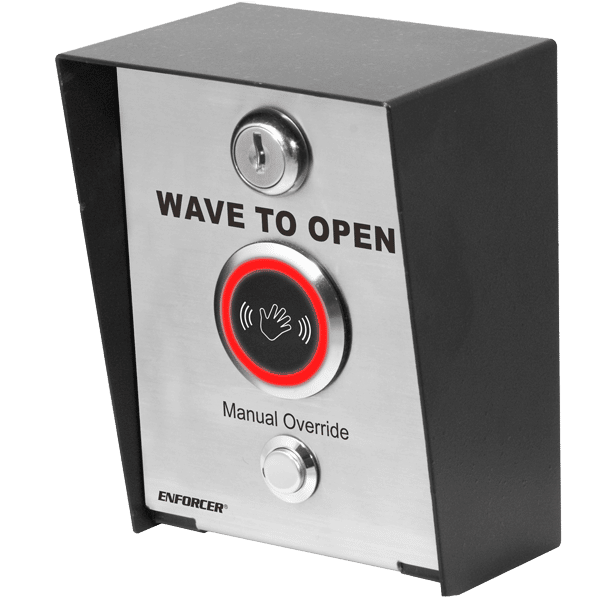

- Selectable LED colors: Activation color can switch between red-to-green or green-to-red for quick status recognition.
- Heavy-duty steel box included: Robust housing protects wiring and electronics, simplifying mounting and protection against tampering.
This wave-to-open sensor delivers practical, hands-free access with clear feedback, making it ideal for outdoor entrances, gates, and secure facilities. The combination of weatherproof construction, versatile mounting, and a reliable 1A relay provides a thoughtful, durable solution that installers and facility managers can trust. Use cases range from corporate entrances and loading docks to outdoor service areas where quick, touchless entry improves flow and safety.
