Description

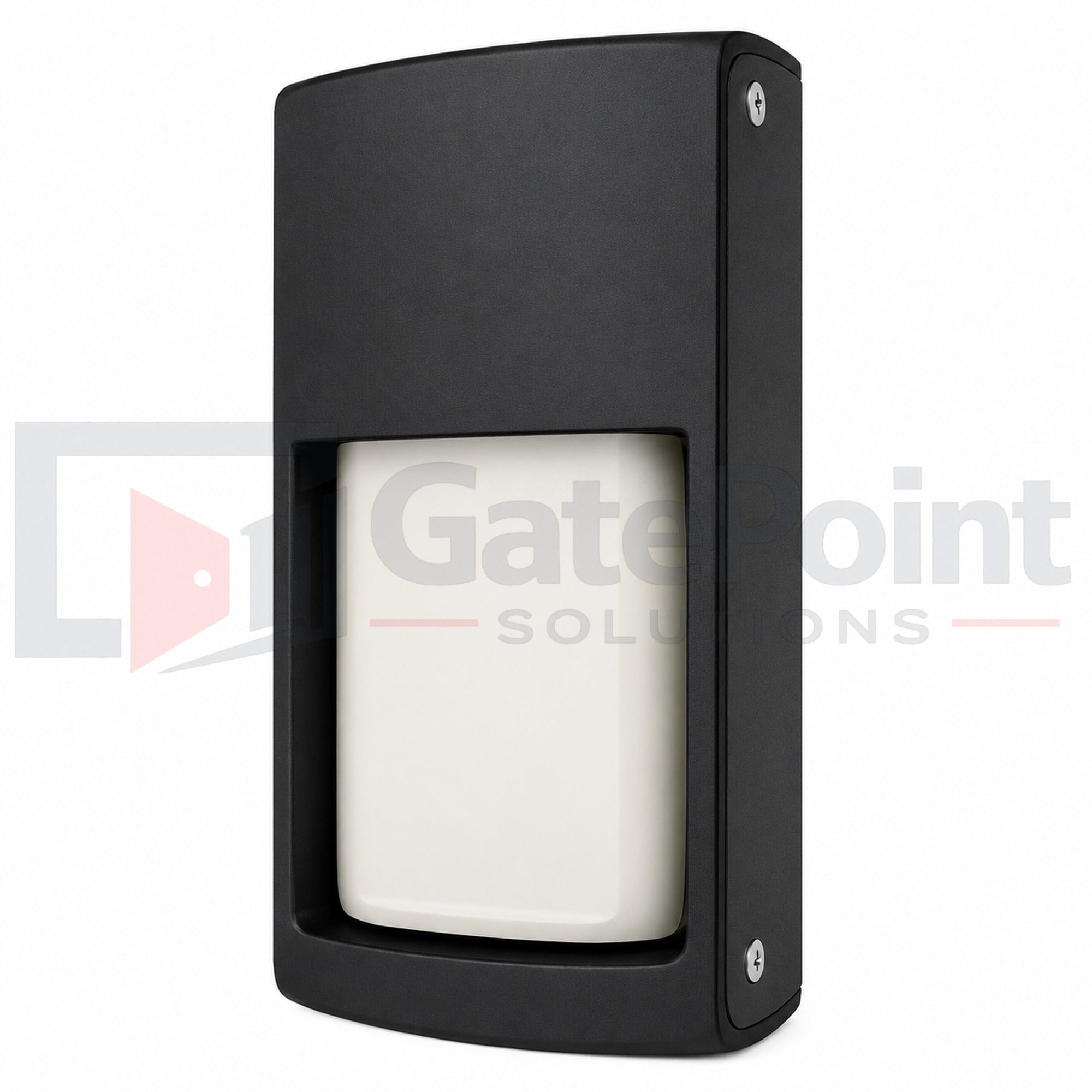

The Optex OVS-01CC Vehicle Counting Sensor is an advanced above-ground virtual loop sensor designed specifically for vehicle counting applications. With an adjustable 26-foot detection range, the OVS-01CC accurately counts both moving and stationary vehicles while intelligently filtering out most pedestrian traffic. By eliminating the need for traditional in-ground inductive loops, this sensor significantly reduces installation time, labor costs, and disruption to existing pavement.
Utilizing dual microwave technologies (Doppler Shift and FMCW), the OVS-01CC delivers dependable vehicle detection in virtually all weather and lighting conditions. The detection area can be customized using 8 adjustable range settings, 5 sensitivity levels, and 5 human-cancellation settings, while one-touch calibration makes setup quick and straightforward. Designed for single-lane traffic applications, the OVS-01CC is an excellent solution for parking facilities, retail centers, transportation monitoring, gated communities, and traffic management systems.
Mounted approximately 20–36 inches above the ground, the sensor detects vehicles traveling at speeds up to 60 km/h (37 mph) without requiring concrete cutting, trenching, or loop installation. Its rugged IP65-rated housing withstands rain, snow, dust, and harsh outdoor environments for reliable year-round operation.
Key Features
- Genuine Optex OEM vehicle counting sensor
- Part Number: OVS-01CC
- Above-ground Virtual Loop vehicle counter
- Adjustable detection range up to 26 ft (8 m)
- Designed for vehicle counting applications
- Detects both moving and stationary vehicles
- Dual Doppler Shift + FMCW microwave detection technology
- Ignores most pedestrian traffic
- No concrete cutting or inductive loop installation required
- 8 adjustable detection range settings
- 5 vehicle sensitivity settings
- 5 human-cancellation settings
- One-touch automatic calibration
- IP65 weather-resistant housing
- Fast installation with minimal site disruption
Ideal Applications
- Parking lot vehicle counting
- Retail traffic analytics
- Transportation monitoring
- Toll and access lanes
- Gated communities
- Commercial properties
- Industrial facilities
- Municipal traffic management
- Single-lane vehicle counting systems
Specifications
- Detection Technology: Dual Microwave (Doppler Shift + FMCW)
- Detection Range: Adjustable 3.3–26 ft (1–8 m)
- Vehicle Speed: 2–60 km/h (1.2–37 mph)
- Mounting Height: 20–36 in. (0.5–0.9 m)
- Power Input: 12–24 VDC
- Environmental Rating: IP65
- Installation: Above-ground wall or pole mount
- Calibration: One-touch automatic setup
