Description

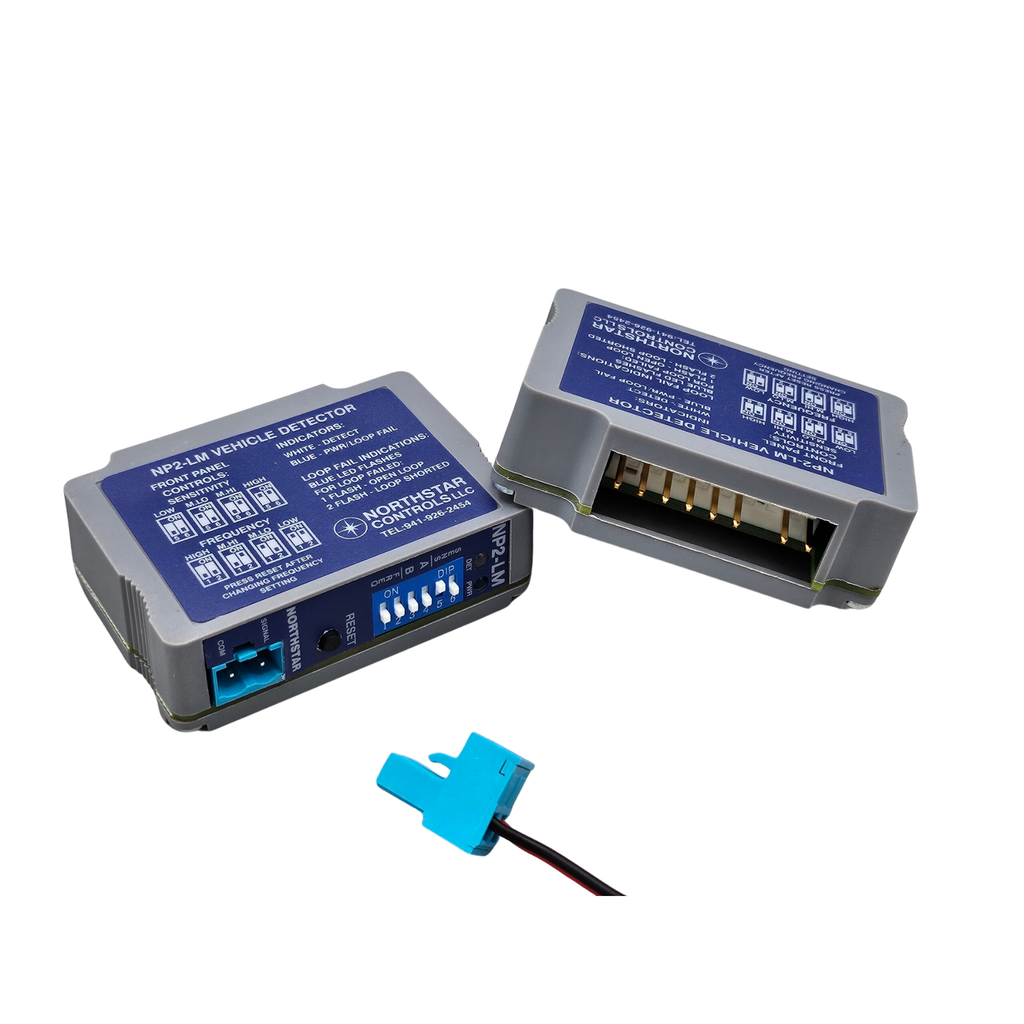

The NP2-LM Plug-In Inductive Loop Detector from Northstar Controls delivers precise, reliable vehicle detection for LiftMaster gate operators. Designed for high-use sites and installers who value plug-in simplicity, it combines selectable sensitivity, multi-frequency operation, and automatic sensitivity boost to handle a wide range of vehicle sizes and conditions.
- LiftMaster® Plug-In Compatibility: Designed specifically for LiftMaster gate operator plug-in boards for seamless integration.
- 4 Selectable Sensitivity Levels: Fine-tune detection from small cars to larger vehicles to reduce misses and false triggers.
- 4 Selectable Frequencies: Switch between frequencies to minimize interference and loop crosstalk in busy electrical environments.
- Automatic Sensitivity Boost: Dynamically enhances detection for large or slow-moving vehicles, improving reliability at the gate.
- Selectable Presence Times: 15 minutes, 60 minutes, or permanent presence to fit different gate operation modes.
- Solid-State Output: 30 mA max current sink with over-voltage protection and reverse-polarity protection for consistent signaling.
- Power Requirements: 12–24 V DC, 5 mA nominal, minimizing power draw in operator cabinets.
- Operating Temperature: -30°F to 180°F (-34°C to 82°C) for dependable outdoor performance in extreme conditions.
- Compact, Durable Design: 2.4" H × 2.25" D × 0.8" W enclosure, ideal for tight operator cabinets and high-usage sites.
- Model and Manufacturer: NP2-LM by Northstar Controls, a plug-in inductive loop detector engineered for LiftMaster gate systems.
For installers and facility managers, this detector translates into more consistent gate operation by delivering dependable vehicle detection across various vehicle sizes and travel speeds. The combination of multiple frequencies and an automatic boost helps minimize maintenance calls due to missed detections or false positives, while the compact form factor simplifies installation inside existing gate operator cabinets. Whether you’re equipping residential driveways, gated communities, or commercial entrances, the NP2-LM provides a robust, plug-in solution that supports smooth access control, reduces wear from unnecessary cycles, and maintains reliable performance across demanding conditions.
