Description

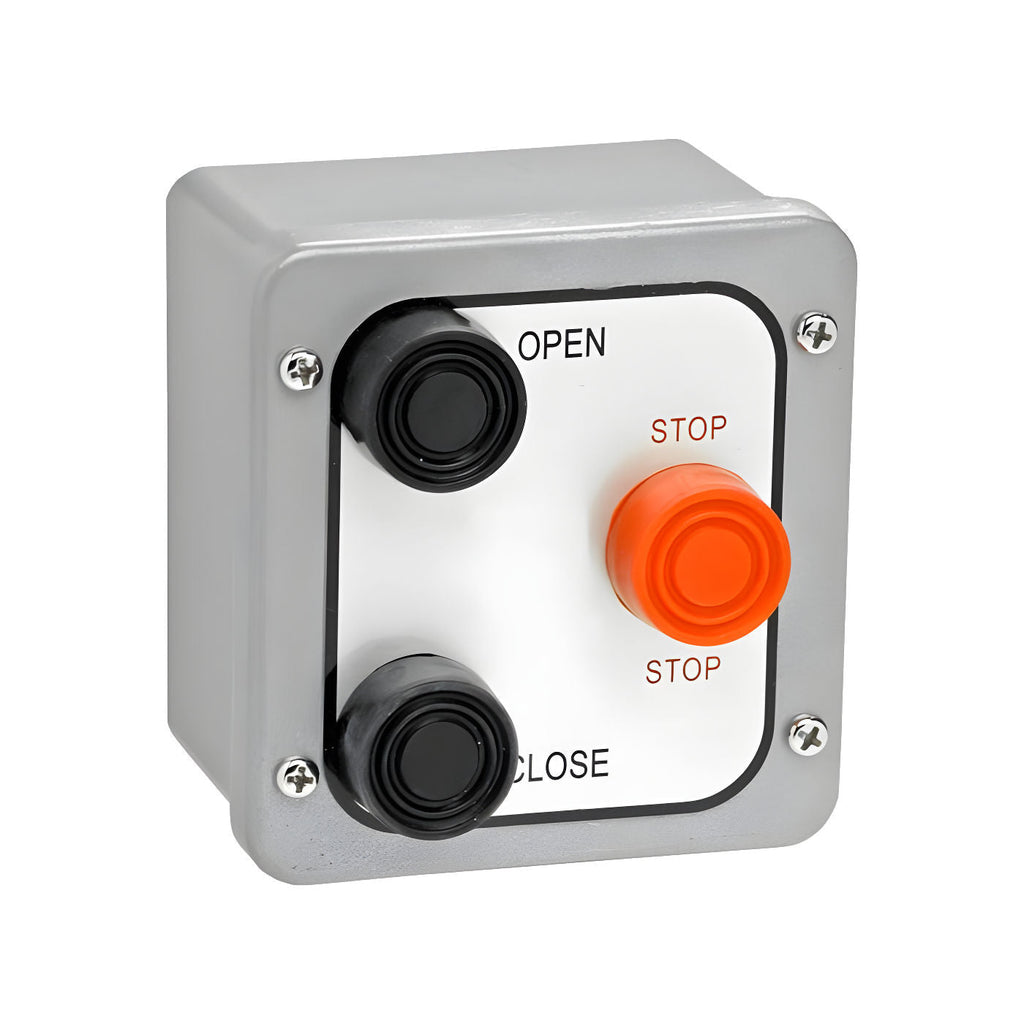

The MMTC 3BX Exterior Three Button Station is a rugged, weatherproof control designed for outdoor gates, doors, and industrial machinery. Built for harsh environments, it delivers reliable Open, Close, and Stop control in a compact, surface‑mount enclosure.
- Model: 3BX
- Enclosure: Die-cast aluminum with NEMA 3R, 4, and 12 ratings for weather, dust, and industrial conditions
- Button Configuration: Open and Close are Normally Open (N.O.); Stop is Normally Closed (N.C.)
- Electrical Rating: Buttons rated at 6 amps at 125/250 VAC for compatibility with typical industrial power requirements
- Mounting Type: Surface mount for secure installation in tight outdoor spaces
- Dimensions: 4-3/8” H x 4-1/8” W x 3-3/4” D
- Applications: Ideal for outdoor gate control, equipment start/stop, and other demanding industrial control scenarios
The 3BX exterior control station is designed to stand up to rain, dust, and temperature swings while keeping operation straightforward. Its three-button layout provides intuitive control: Open and Close commands drive linear or rotary mechanisms, and Stop offers an immediate halt when safety or timing requires it. The NEMA-rated enclosure protects internal components from the elements, reducing corrosion and downtime in outdoor installations such as gate housings, loading docks, and perimeter security systems. With a compact footprint, it integrates neatly onto walls, post mounts, or control panels without crowding nearby equipment.
