Description

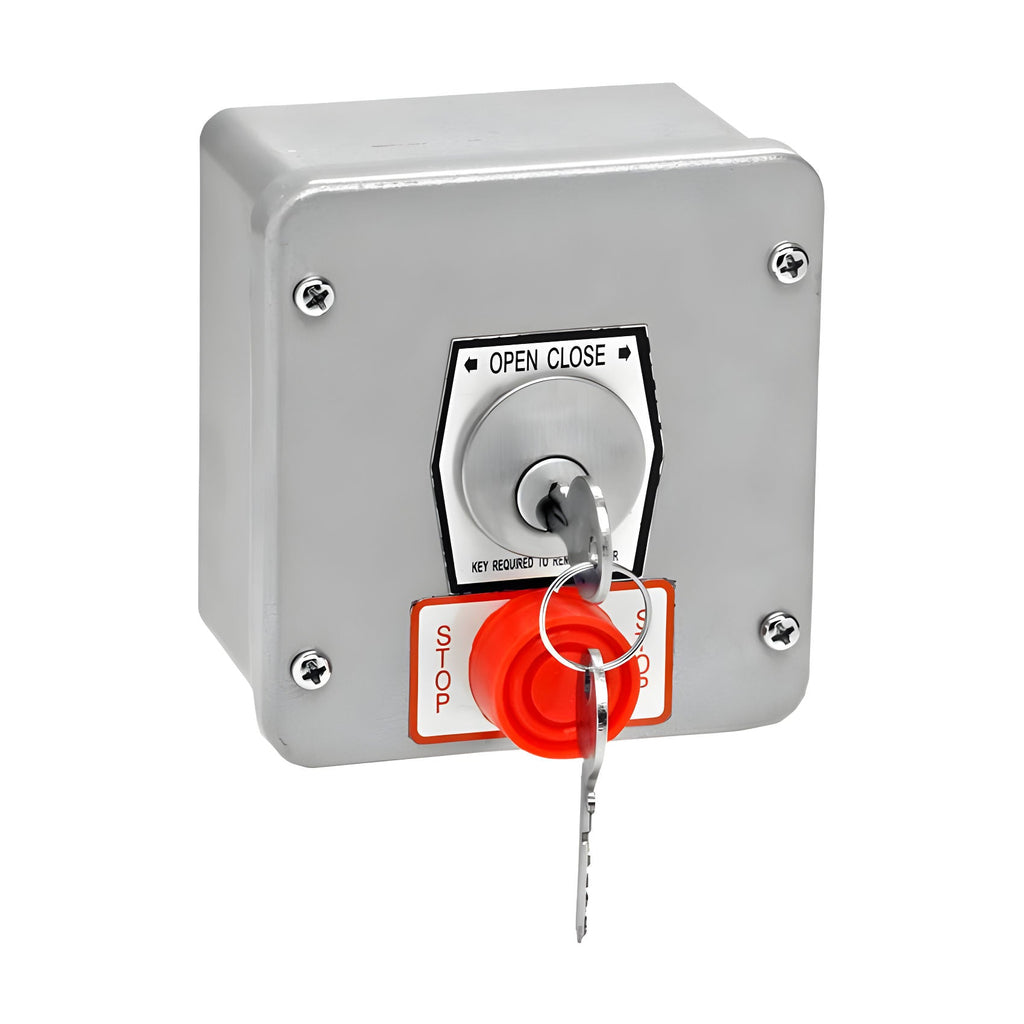

Introducing the MMTC 1KXS Exterior Key-Switch with Stop Button — a tamper-proof, weatherproof Open/Close control station designed for outdoor gates, machinery, and industrial automation. Built to endure harsh environments, it delivers secure access control with flexible cylinder options to match your site security requirements.
- Model: 1KXS
- Enclosure: Aluminum die-cast housing rated NEMA 3R, 4, and 12 for outdoor and industrial use
- Electrical Rating: Keyswitch rated at 15 amps at 125/250 VAC
- Cylinder Options: Mortise type (5-pin); compatible with Best Core, SLF large format, or CC changeable cylinders
- Controls: Two-position keyed Open and Close control with center return stop button
- Mounting Type: Surface mount, tamper-proof design
- Dimensions: 4-3/8” H x 4-1/8” W x 3-3/4” D
- Weather/Security Focus: Tamper-proof enclosure with weatherproof construction for restricted access
The 1KXS delivers a reliable, restricted-access control solution for outdoor gates, perimeter doors, and industrial equipment. Its rugged aluminum die-cast enclosure and NEMA-rated protection resist rain, dust, and temperature fluctuations, helping to minimize maintenance and downtime. Flexible cylinder options enable precise security alignment with your site—whether you need Best Core, SLF large format, or CC changeable cylinders. The center stop button provides a clear manual override, while the two-position keyed switch prevents unauthorized operation and accidental activations. This combination of security, durability, and configurability makes the 1KXS an effective choice for weatherproof, restricted control over gates and machinery in challenging environments.
