Description

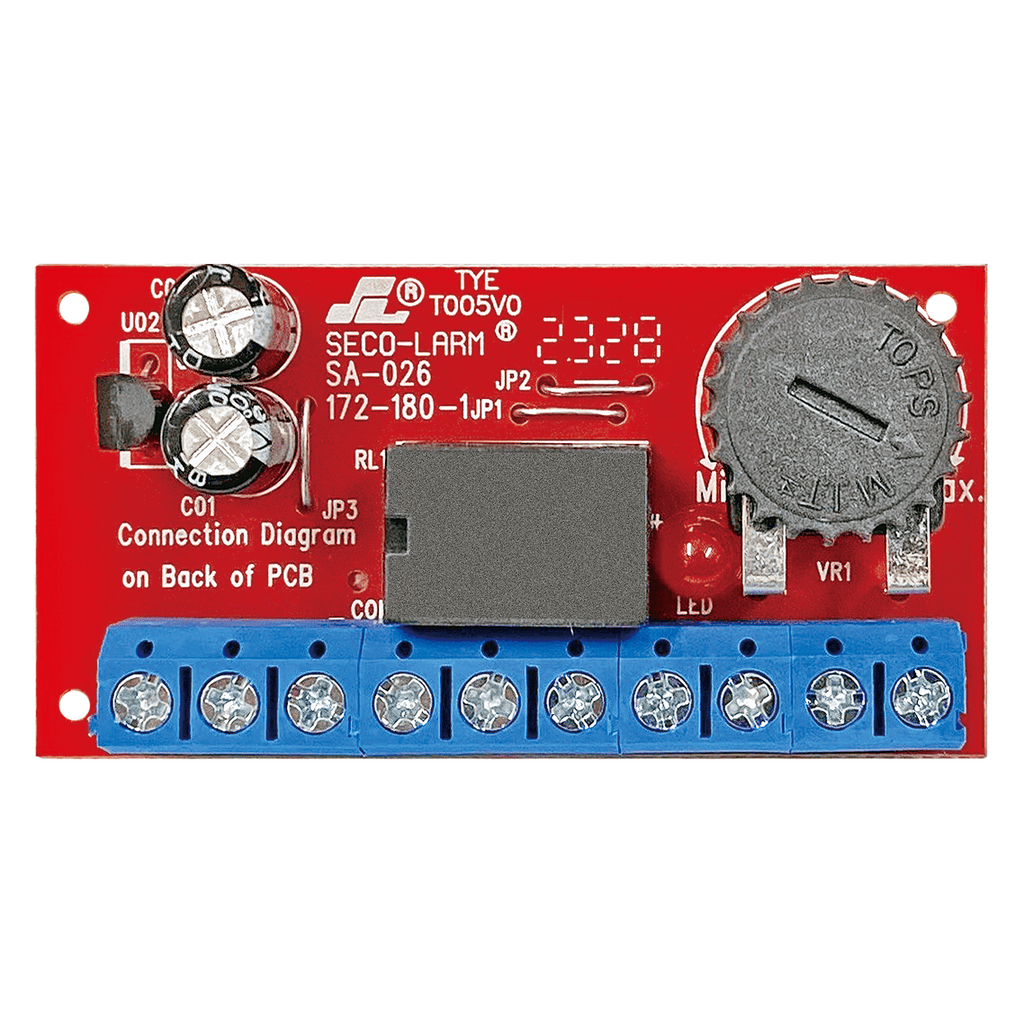

The Seco-Larm SA-026Q Mini Programmable Timer is a compact timing module designed for quick-reference control in security, access, and automation setups. It delivers precise, short delays with a simple dial, fitting neatly into small panels and enclosures.
- Delay range: Adjustable 1–180 seconds via onboard potentiometer for precise, repeatable delays without bulky hardware.
- Compact footprint: Slim form factor measuring 1-3/16" x 2-3/16" x 5/8" (30 x 55 x 16 mm) to fit tight spaces in panels and enclosures.
- Voltage compatibility: Operates on 12–24 VAC or 12–24 VDC, compatible with common control systems and power supplies.
- Relay output: Form C SPDT relay output, wired via terminal block; rated 3A at 24VDC for flexible switching of loads or signals.
- Audible indicator: Built-in buzzer (100 mA at 24VDC) to signal timer completion without needing additional components.
- Mounting: Includes double-sided foam mounting tape for quick, non-invasive installation.
- Versatile applications: Ideal for door or gate signaling, access-control sequences, alarm reminders, irrigation cues, and any application requiring a short, repeatable timer with clear tactile adjustment.
The SA-026Q consolidates timing control into a single, dependable module, reducing wiring complexity while delivering consistent timing performance. It excels in sensor-triggered delays, post-activation confirmations with audible feedback, and sequential signaling using Form C outputs. The combination of an adjustable delay, built-in buzzer, and a compact 12–24V capable design makes it a practical choice for professional installations and DIY projects alike, offering a precise, repeatable timing solution without unnecessary bulk.
