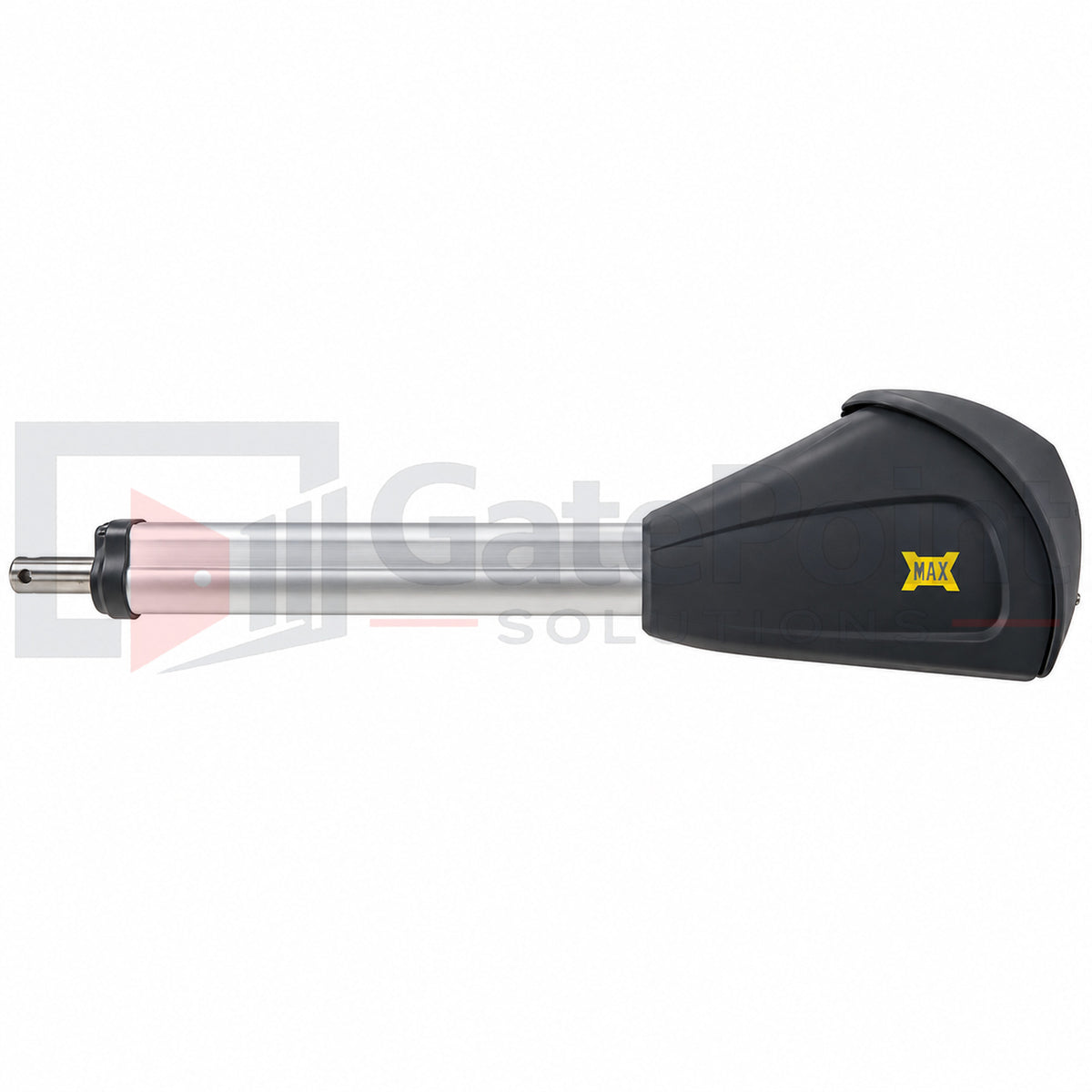

Maximum Controls MAX SUPER ARM 2300 Heavy-Duty Commercial Linear Swing Gate Actuator

The Maximum Controls MAX SUPER ARM 2300 is an industrial-strength, 24V DC linear swing gate actuator engineered for heavy residential and commercial vehicular gates requiring exceptional lifting force, continuous-duty performance, and advanced mechanical protection. Designed to automate individual swing gate leaves weighing up to 2,300 lbs at 8 feet or 1,500 lbs at 20 feet, the MAX SUPER ARM 2300 delivers the power and durability required for large, heavy-duty automatic gate installations.

Built for commercial entrances, gated communities, private estates, ranch properties, industrial facilities, and secured vehicle access points, the MAX SUPER ARM 2300 combines a heavy-duty direct-drive gearbox, stainless steel output shaft, and Maximum Controls' patented automatic-reset overload clutch.

One of the actuator's most distinctive features is its 3-ton impact-release clutch system. When excessive force is applied to the actuator, such as during certain vehicle strikes, the protective clutch is designed to release and automatically reset. This innovative mechanical protection helps reduce the risk of costly actuator damage associated with severe external loading.

The actuator incorporates a high-power 24V DC motor and precision direct-drive gearbox utilizing metal and bronze gearing. Unlike conventional linear gate operators with internal chains, belts, or pulleys, the MAX SUPER ARM 2300 transfers power directly through its gearbox for dependable movement and reduced mechanical complexity.

When connected to a compatible Maximum Controls DSP Arm Controller, the system provides advanced motion control, intelligent acceleration and deceleration, adjustable gate speeds, electronic obstruction detection, battery backup, and extensive access control integration.

With a continuous-duty design, corrosion-resistant construction, mechanical gate release, and support for both single- and dual-swing gate installations, the MAX SUPER ARM 2300 offers a powerful solution for gate automation professionals seeking commercial-grade performance in a linear actuator configuration.

Key Features & Benefits

• 2,300 lb Maximum Gate Capacity: Supports properly constructed swing gate leaves weighing up to 2,300 lbs at an 8-foot length.

• Up to 20 ft Gate Length: Rated for gate leaves up to 20 feet long at a maximum weight of 1,500 lbs.

• Heavy-Duty 24V DC Motor: Delivers substantial linear force for demanding residential and commercial gate installations.

• Continuous-Duty Operation: Engineered for frequent gate cycles when used with an appropriately configured control system.

• Patented 3-Ton Overload Clutch: Designed to release under severe impact loading and automatically reset.

• Direct-Drive Gearbox: Heavy-duty metal and bronze gearing eliminates internal chains, belts, and pulleys.

• Stainless Steel Output Shaft: Provides strength and corrosion resistance for outdoor gate operation.

• Up to 19.8-Inch Actuator Stroke: Supports approved swing gate mounting geometries.

• Mechanical Gate Release: Allows authorized manual disengagement according to the manufacturer's instructions.

• Electrical Release Compatibility: Supports applicable emergency release functions through compatible control equipment.

• Intelligent Ramp-Up & Ramp-Down: DSP-based motion control provides smooth gate starts and stops.

• Independent Closing Speed Adjustments: Compatible control systems support separate speed settings for primary and secondary gates.

• Single & Dual Gate Compatibility: Suitable for properly configured single-leaf and dual-leaf swing gate installations.

• Push-to-Open / Pull-to-Open Configurations: Supports approved installation geometries.

• Battery Backup Capability: Compatible Maximum Controls control boxes provide backup operation during AC power interruptions.

• Solar-Ready System Integration: Supports compatible solar control systems and appropriately sized power equipment.

• Advanced Access Control Compatibility: Integrates with supported keypads, loop detectors, intercoms, and monitored safety devices.

• Corrosion-Resistant Construction: Protective gold zinc treatment and powder-coated aluminum housing.

• 2-Year Limited Manufacturer Warranty: Subject to Maximum Controls' current warranty terms.

Swing Gate Weight & Length Capacity

Maximum Controls publishes the following capacity ratings for the MAX SUPER ARM 2300:

Gate Leaf Length	Maximum Gate Weight
Up to 8 ft	2,300 lbs
Up to 12 ft	2,000 lbs
Up to 16 ft	1,800 lbs
Up to 20 ft	1,500 lbs

Important: These ratings apply to individual gate leaves, not the combined weight of a dual-gate entrance. Maximum gate weight decreases as gate length increases.

Actual actuator selection must also account for gate construction, hinge condition, wind loading, mounting geometry, and mechanical resistance.

Technical Specifications

Specification	Details
Manufacturer	Maximum Controls
Model	MAX SUPER ARM 2300
Product Type	Heavy-Duty Linear Swing Gate Actuator
Applications	Residential & Commercial Vehicular Swing Gates
Motor Type	High-Power 24V DC
Maximum Gate Weight	2,300 lbs at 8 ft
Maximum Rated Gate Length	20 ft at 1,500 lbs
Duty Cycle	Continuous with Compatible AC Control System
Maximum Linear Travel Speed	Approximately 0.7 in/sec
Maximum Actuator Stroke	Approximately 19.8 in
Retracted Actuator Length	Approximately 37 in
Extended Actuator Length	Approximately 54.75 in
Maximum Linear Force	4,500 N
Rated Linear Force	1,500 N
Maximum Power Consumption	245 W per Actuator
Rated Power Consumption	115 W per Actuator
Motor Voltage	24V DC
Drive System	Direct Gear Drive
Gearbox Construction	Metal & Bronze Gearing
Gear Reduction	1,800:1
Output Shaft	Stainless Steel
Impact Protection	Patented Automatic-Reset Overload Clutch
Release Functions	Mechanical & Electrical
Mounting Configurations	Push-to-Open / Pull-to-Open
Actuator Shipping Weight	Approximately 35 lbs
Compatible Controller	Maximum Controls DSP Arm Controller
AC Control System Input	Selectable 115V / 230V AC
Recommended AC Breaker	15A
Battery Backup	Through Compatible Control Box
Solar Compatibility	Through Compatible Solar Controller
UL 325 Usage Classes	I, II, III & IV with Approved System
Manufacturer Warranty	2-Year Limited Warranty

Patented 3-Ton Overload Clutch Protection

The MAX SUPER ARM 2300 features Maximum Controls' patented overload clutch mechanism, designed to help protect the actuator from severe external forces.

When the actuator experiences force exceeding approximately three tons, the clutch is designed to disengage and automatically reset.

This feature is particularly valuable at commercial entrances where gates may be exposed to accidental vehicle contact, heavy mechanical loading, or unexpected obstructions.

By incorporating mechanical overload protection directly into the actuator, Maximum Controls helps reduce the likelihood of catastrophic damage to the internal drive system during certain impact events.

The overload clutch is one of the primary distinctions between the MAX SUPER ARM 2300 and many conventional residential linear gate actuators.

Important: The clutch is designed to protect mechanical equipment. It is not a vehicle-impact barrier, does not guarantee that the actuator or gate will survive every collision, and does not replace required entrapment protection devices.

Heavy-Duty 24V DC Motor & Direct-Drive Gearbox

The MAX SUPER ARM 2300 utilizes a high-power 24V DC electric motor engineered for demanding residential and commercial gate applications.

Its heavy-duty gearbox incorporates metal and bronze gearing to deliver substantial linear force while minimizing internal mechanical complexity.

The manufacturer's published specifications identify a 1,800:1 gear reduction, providing the mechanical advantage required to move large, heavy swing gates.

Unlike conventional actuators that use internal chains, belts, or pulleys, the MAX SUPER ARM 2300 incorporates direct-drive power transmission.

This design offers several advantages:

• Efficient transfer of motor power to the actuator shaft

• Reduced internal mechanical wear components

• Strong, controlled movement of heavy swing gates

• Smooth acceleration and deceleration with compatible controls

• Reliable operation in demanding commercial environments

• Reduced maintenance associated with belt- or chain-driven internal mechanisms

The motor and gearbox work together to provide powerful movement while maintaining precise control over gate travel.

Stainless Steel Output Shaft & Corrosion-Resistant Construction

The MAX SUPER ARM 2300 incorporates a heavy-duty stainless steel output shaft designed for strength, durability, and outdoor corrosion resistance.

Its actuator housing features protective gold zinc treatment and powder-coated aluminum construction.

The combination of corrosion-resistant materials and rugged internal gearing makes the actuator well suited for outdoor installations exposed to changing temperatures and environmental conditions.

The actuator provides approximately 19.8 inches of maximum linear stroke, allowing installers to configure gate movement according to the approved mounting geometry.

Proper bracket positioning and gate hinge alignment are essential to avoid excessive mechanical stress and achieve the intended opening angle.

Advanced DSP Motion Control

When connected to a compatible Maximum Controls DSP Arm Controller, the MAX SUPER ARM 2300 supports advanced programmable gate movement and diagnostic capabilities.

The controller manages motor operation using adaptive Digital Signal Processing technology.

Depending on the control box and configuration, supported functions include:

• Intelligent motor acceleration and deceleration

• Independent closing speed adjustments

• Electronic reversing detection

• Programmable automatic closing timer

• Primary and secondary gate sequencing

• Partial gate opening

• Gate status monitoring

• Tamper detection and alarm outputs

• Gate-in-motion strobe output

• Magnetic lock relay control

• Vehicle loop detector integration

• SAMS and PAMS sequencing compatibility

• Integrated diagnostics and event history

• Compatible emergency access inputs

These advanced functions help make the MAX SUPER ARM 2300 suitable for complex commercial gate installations requiring more sophisticated control than a basic residential actuator system.

Note: These capabilities depend on the connected controller and are not all contained within the standalone actuator arm.

Battery Backup & Electrical Power Options

The MAX SUPER ARM 2300 can be operated using a compatible Maximum Controls AC control box with integrated battery backup.

The manufacturer's control system supports selectable 115V or 230V AC input and provides the low-voltage power required for actuator operation.

Maximum Controls advertises a minimum of 500 battery backup cycles for its associated control system under specified conditions.

Actual backup performance varies according to gate weight, gate length, number of actuators, battery capacity, battery condition, and environmental temperature.

The system also supports compatible solar installations and low-voltage remote power configurations.

Additional controller-dependent capabilities include:

• 12V DC and 24V DC accessory power outputs

• Programmable battery backup modes

• Solar energy-saving operation

• Motor overcurrent protection

• Lightning and surge protection

• Diagnostic monitoring

• Compatible low-voltage power distribution

Important: Battery backup, AC input selection, and solar power management are features of the external control system. They are not built into the standalone actuator.

Mechanical Gate Release & Emergency Access

The MAX SUPER ARM 2300 includes a mechanical release mechanism that allows authorized personnel to disengage the actuator for manual gate movement.

This capability is useful during maintenance, installation adjustments, and certain emergency conditions.

Compatible control systems also support electrical release and emergency access functions.

For commercial properties, gated communities, and secured residential entrances, proper emergency access planning is an essential part of gate automation system design.

The gate's release mechanism, control system programming, and emergency access equipment should be configured according to Maximum Controls' installation instructions and applicable local requirements.

Single & Dual Swing Gate Installations

The MAX SUPER ARM 2300 is suitable for both single-leaf and dual-leaf swing gate installations.

For a single-gate system, one actuator operates an individual gate leaf through a compatible controller.

For dual-gate systems, two compatible actuators can be connected to an approved Maximum Controls control box for coordinated operation.

The DSP controller supports independent closing speed adjustments and programmable gate sequencing, which can be especially useful when one gate leaf must open or close before the other.

Approved push-to-open and pull-to-open mounting configurations are supported.

The installer must select the correct brackets, actuator positioning, and hinge geometry for the intended gate opening angle.

UL 325 Safety & Entrapment Protection

The MAX SUPER ARM 2300 is intended for properly configured vehicular swing gate systems designed for UL 325 Class I, II, III, and IV applications.

When installed with a compatible Maximum Controls controller, the system supports electronic reversing detection and monitored external entrapment protection devices.

Depending on the installation, required safety equipment may include:

• Monitored photoelectric safety sensors

• Monitored contact safety edges

• Properly located entrapment protection devices

• Gate warning signs

• Correctly configured obstruction detection

• Approved mechanical stops

• Proper emergency access equipment

Important: The patented overload clutch is not an entrapment protection device and does not replace monitored safety sensors required by the manufacturer or applicable UL 325 requirements.

Ideal Applications

The Maximum Controls MAX SUPER ARM 2300 is an excellent choice for:

• Heavy-duty commercial swing gate entrances

• Large residential estate gates

• Ranch and agricultural property entrances

• Gated communities and HOA entrances

• Industrial and commercial properties

• Secured private roads

• Heavy ornamental iron and steel gates

• High-cycle single and dual swing gate systems

• Large gate leaves requiring substantial linear force

• Replacement of existing MAX SUPER ARM 2300 actuators

Product Configuration & Optional Equipment

MAX SUPER ARM 2300 Actuator Features:

• Maximum Controls MAX SUPER ARM 2300 linear actuator

• Integrated high-power 24V DC motor

• Heavy-duty direct-drive gearbox

• Stainless steel output shaft

• Patented automatic-reset overload clutch

• Mechanical gate release mechanism

• Corrosion-resistant actuator housing

Compatible Equipment Available Separately:

• Maximum Controls MAX AC Control Box

• Compatible MAX Solar Control Box

• Second MAX SUPER ARM 2300 actuator for dual-gate installations

• Compatible actuator extension cables

• Installation-specific mounting brackets and hardware

• Monitored photoelectric safety sensors

• Monitored safety edge systems

• Vehicle loop detectors

• Access control keypads and card readers

• Intercom and telephone entry systems

• Compatible remote monitoring equipment

• Solar panels, batteries, and charging accessories

Important Ordering Note: Maximum Controls offers the MAX SUPER ARM 2300 as an individual actuator and in primary or dual operator packages that include additional equipment.

A standalone actuator does not include a complete control system and cannot function independently without an approved controller and required installation components.

Verify the exact product configuration and included mounting hardware before ordering.

Installation: Professional installation is recommended. Gate weight, gate length, hinge condition, mounting geometry, electrical requirements, and monitored entrapment protection must be evaluated before installation.

Warranty: Maximum Controls provides a 2-year limited manufacturer warranty on the MAX SUPER ARM 2300. Refer to the manufacturer's current warranty documentation for complete terms and exclusions.
