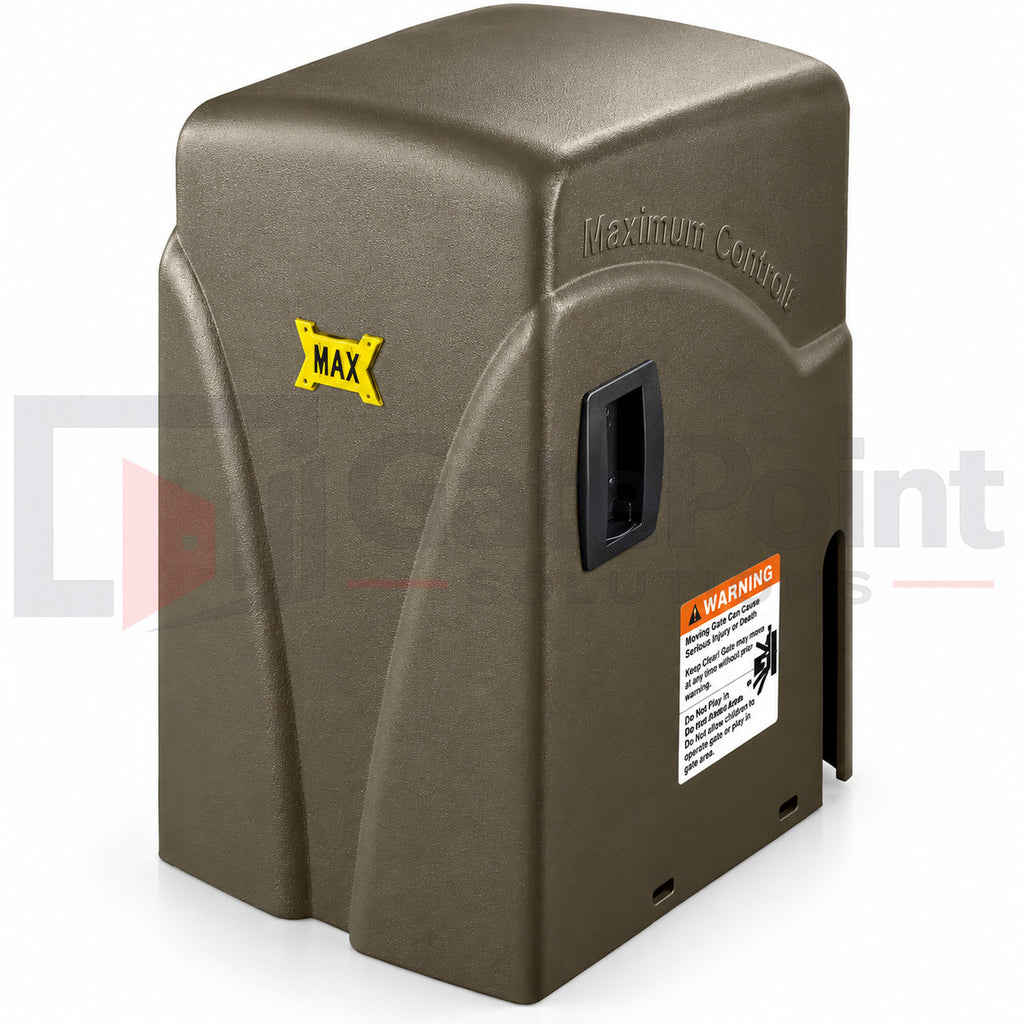

Maximum Controls MXG 2300 High-Traffic Commercial Slide Gate Operator

The Maximum Controls MXG 2300 is a next-generation, high-traffic commercial sliding gate operator engineered for demanding access control applications requiring dependable performance, advanced security, and long-term durability. Featuring a powerful 24V brushless DC motor, innovative Omega I control board, and heavy-duty direct-drive gearbox, the MXG 2300 is designed to automate sliding gates weighing up to 2,300 lbs and measuring up to 60 feet in length.

Part of Maximum Controls' advanced MXG Series, the MXG 2300 delivers the core performance of the MAX 2200 PRO while introducing an improved electronic control system, corrosion-resistant construction, simplified maintenance access, and a fully enclosed control compartment.

Designed for high-traffic gated communities, commercial properties, industrial facilities, self-storage locations, and secured vehicle entrances, this continuous-duty slide gate operator provides smooth, controlled gate movement at speeds up to 12 inches per second.

Unlike conventional operators that rely on internal belts and pulleys, the MXG 2300 utilizes a Size 60 heavy-duty cast iron direct-drive gearbox with a 30:1 reduction ratio. This configuration provides efficient torque transfer while minimizing internal mechanical wear components.

The MXG 2300 also features a fail-secure, non-back-drivable drive system, designed to resist unauthorized manual gate movement during complete electrical power loss. An integrated battery backup system maintains powered gate operation during outages, while programmable emergency access modes provide additional installation flexibility.

A standout feature of the MXG Series is its Omega I intelligent control board, which replaces the Matrix III controller used in earlier MAX PRO Series models. The Omega I introduces a streamlined programming dashboard, LED status indicators, fast battery charging, integrated diagnostic logging, and convenient access through a spring-loaded control compartment door.

The operator's fully welded, 1/4-inch steel chassis features corrosion-resistant gold zinc plating and powder coating. A lockable, Military Brown polyethylene cover protects the equipment, while a separate sealed control enclosure helps shield sensitive electronics and the integrated loop detector rack from dust, moisture, and environmental contamination.

For installers and property owners seeking a powerful, modern commercial sliding gate opener, the Maximum Controls MXG 2300 combines heavy-duty mechanical performance with advanced electronic control, reliable battery backup, and simplified serviceability.

Key Features & Benefits

• 2,300 lb Gate Capacity: Designed for commercial sliding gates weighing up to 2,300 lbs.

• 60 ft Maximum Gate Length: Supports large commercial and industrial sliding gate installations.

• 24V Brushless DC Motor: High-efficiency motor delivering performance equivalent to a 1-1/4 HP AC motor.

• Continuous-Duty Performance: Engineered for frequent opening and closing cycles at busy entrances.

• 12 Inches per Second Gate Speed: Provides efficient gate travel for commercial vehicle access.

• Omega I Intelligent Control Board: Next-generation controller with simplified programming, integrated diagnostics, and LED status indicators.

• Fail-Secure Drive System: Non-back-drivable configuration helps resist unauthorized manual gate movement during complete power loss.

• Heavy-Duty Direct-Drive Gearbox: Size 60 cast iron gearbox with a 30:1 gear ratio eliminates internal belts and pulleys.

• Integrated Battery Backup: Two 12V, 7Ah AGM batteries provide approximately 100 backup cycles under manufacturer-specified conditions.

• Fast Battery Charging: Omega I controller supports accelerated battery charging up to approximately 4.5 amps.

• Sealed Electronics Compartment: Protects the Omega I board, electrical connections, and integrated loop rack from environmental exposure.

• Quick-Access Control Box: Spring-loaded access door simplifies programming, inspection, and servicing.

• Advanced Diagnostics: Integrated OBD port and event logging support troubleshooting and performance analysis.

• Programmable Virtual Limits: Electronic open and close limit settings simplify gate travel programming.

• Adaptive Obstruction Detection: Includes 16 selectable electronic reversing sensitivity settings.

• Anti-Tailgating Security: Programmable vehicle access functions help reduce unauthorized entry.

• Intelligent Motion Control: Controlled acceleration, deceleration, and dynamic magnetic braking.

• Dual-Voltage AC Input: Selectable 115V or 230V AC single-phase operation.

• Solar-Ready Design: Supports compatible solar and low-voltage power configurations.

• Corrosion-Resistant Construction: Welded steel chassis with zinc plating and powder coating.

• Lockable Polyethylene Cover: Durable Military Brown enclosure with optional Military Grey finish.

• 5-Year Limited Manufacturer Warranty: Manufacturer-backed coverage with separate battery warranty terms.

Technical Specifications

Specification	Details
Manufacturer	Maximum Controls
Model	MXG 2300
Operator Type	High-Traffic Commercial Slide Gate Operator
Drive Configuration	Fail-Secure, Non-Back-Drivable
Motor	24V Brushless DC
Motor Performance	1-1/4 HP AC Equivalent
Maximum Gate Weight	2,300 lbs
Maximum Gate Length	60 ft
Gate Speed	12 inches per second
Duty Cycle	Continuous
Control Board	Omega I
Gearbox	Size 60 Cast Iron
Gear Ratio	30:1
Drive System	Direct Gear Drive
Input Voltage	115V / 230V AC, Single Phase
Circuit Breaker	20A Dedicated
Battery Backup	Two 12V, 7Ah AGM Batteries
Published Battery Backup	Approximately 100 Cycles
Optional Extended Battery Backup	Two 12V, 36Ah AGM Batteries
Optional Extended Backup Rating	Approximately 500 Cycles
Limit System	Programmable Virtual Limits
Accessory Power	12V DC Output
Operating Temperature	-4°F to 165°F (-20°C to 74°C)
Dimensions	15" W × 19" D × 25.75" H
Chain Height	7.5"
Shipping Weight	140 lbs
Drive Chain	#40 Nickel-Plated
Included Chain Length	25 ft
Standard Cover	Lockable Military Brown Polyethylene
Optional Cover	Military Grey
Optional Construction	MXG 2300-ST Stainless Steel Configuration
UL 325 Usage Classes	I, II, III, IV
Manufacturer Warranty	5 Years; Batteries 1 Year

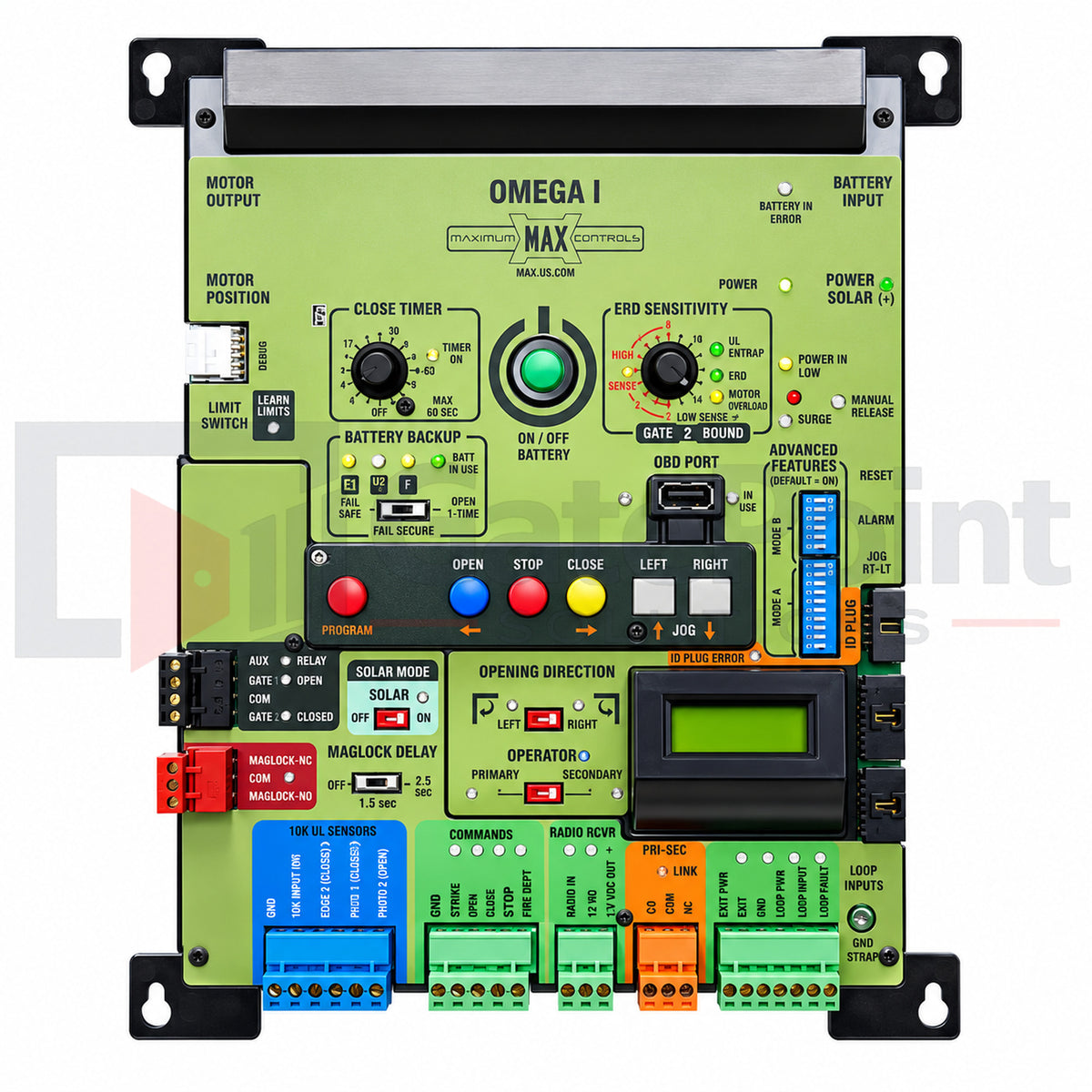

Next-Generation Omega I Control Board

One of the most significant improvements of the Maximum Controls MXG 2300 is its Omega I intelligent control board, designed to simplify installation, programming, diagnostics, and long-term maintenance.

Unlike the Matrix III controller used in the earlier MAX PRO Series, the Omega I features a centralized control platform with clearly identified connections, intuitive LED indicators, and an improved diagnostic interface.

Key Omega I features include:

• Simplified programming dashboard for faster setup

• Integrated LED status and fault indicators

• Fast battery charging capability

• Onboard diagnostic OBD port

• Operating history and error event logging

• Programmable gate opening direction

• Adjustable obstruction detection sensitivity

• Automatic closing timer settings

• Programmable partial gate opening

• Primary and secondary operator coordination

• Solar operating mode

• Dedicated monitored safety device connections

• Magnetic lock and auxiliary relay controls

• Integrated MAX Cell Hub connection

• Compatible wireless safety edge connectivity

The control board is housed inside a sealed electronics compartment featuring a spring-loaded access door, allowing technicians to access programming and diagnostic functions without unnecessary disassembly.

This combination of simplified control architecture and advanced diagnostics makes the MXG 2300 particularly attractive for commercial gate installers seeking easier setup and maintenance.

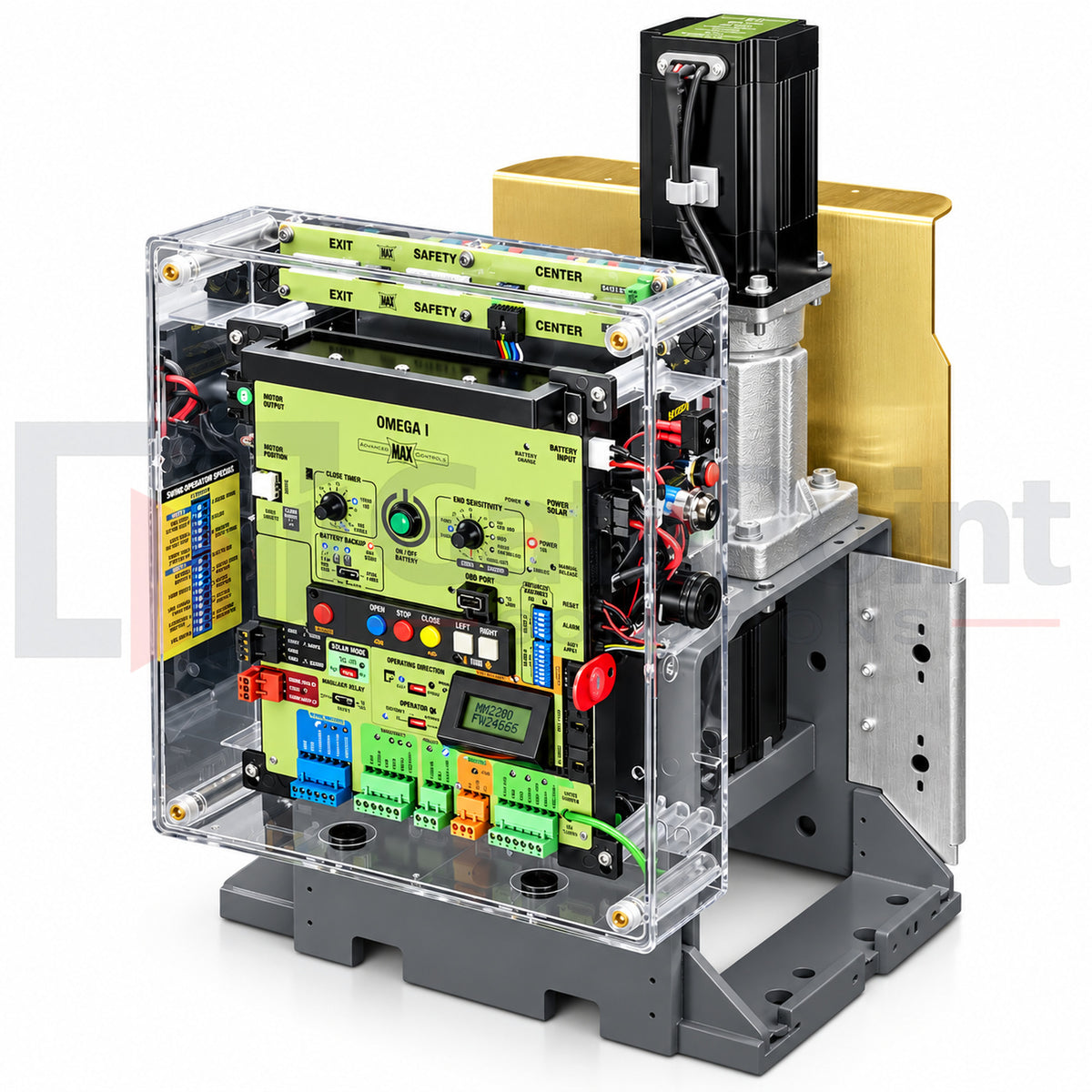

Heavy-Duty Brushless DC Motor & Direct-Drive Gearbox

The MXG 2300 features a high-efficiency 24V brushless DC motor delivering performance equivalent to a 1-1/4 HP AC motor.

Designed for continuous-duty commercial gate operation, the brushless motor eliminates conventional carbon brushes and incorporates an integrated Hall Effect encoder for precise motor feedback.

Maximum Controls publishes a motor design life of up to 6 million cycles or approximately 35,000 operating hours under specified conditions.

The motor is paired with a Size 60 heavy-duty cast iron gearbox featuring a 30:1 reduction ratio.

This direct-drive configuration provides:

• Efficient torque transmission for gates up to 2,300 lbs

• Smooth acceleration and deceleration

• Reduced internal mechanical wear

• Elimination of internal drive belts and pulleys

• Oil-bath lubrication for consistent gearbox performance

• Reliable operation during frequent commercial gate cycles

The combination of brushless motor technology and direct-drive construction helps reduce routine maintenance requirements while supporting dependable long-term performance.

Fail-Secure Operation & Commercial Gate Security

The MXG 2300 utilizes a fail-secure, non-back-drivable drive configuration, designed to resist manual gate movement during complete electrical power loss.

Unlike fail-safe operators that permit manual gate movement after releasing a brake, the MXG 2300 is intended to maintain a secured gate position when powered operation is unavailable.

This makes the operator well suited for commercial properties requiring enhanced perimeter protection.

Security-related features include:

Dynamic Magnetic Braking: Provides controlled stopping and helps resist unauthorized gate movement.

Anti-Tailgating Protection: Programmable access control functions help reduce unauthorized vehicle entry.

Tamper Detection: Alarm and relay outputs can respond to unauthorized gate movement.

Gate Status Monitoring: Provides operating status information for compatible monitoring and security equipment.

Magnetic Lock Control: Supports compatible magnetic locking devices through programmable relay outputs.

Partial Gate Opening: Allows programmed gate travel distances for routine vehicle access while maintaining full-opening capability for emergency vehicles.

Electronic Jog Controls: Provide authorized powered gate movement for servicing and emergency operating procedures when an appropriate power source is available.

Important: Fail-secure operation does not mean the gate automatically opens during a complete power failure. Emergency access behavior depends on battery backup programming, installed equipment, and site-specific requirements.

Integrated Battery Backup & Power Management

The MXG 2300 incorporates a built-in battery backup system using two 12V, 7Ah AGM batteries.

Maximum Controls publishes approximately 100 backup operating cycles under specified conditions. Actual backup performance depends on gate weight, travel distance, battery condition, environmental temperature, and mechanical resistance.

For installations requiring additional backup capacity, an optional configuration utilizing two 12V, 36Ah AGM batteries is available, with a manufacturer-published average of approximately 500 cycles.

The Omega I control board supports accelerated battery charging and configurable power-loss operating modes.

Additional electrical features include:

• Selectable 115V / 230V AC input

• Integrated battery charging and management

• Solar-ready operating mode

• Compatible low-voltage remote power configurations

• Motor overcurrent protection

• Lightning and surge protection

• Programmable battery backup operation

• Built-in 12V DC accessory power output

A properly configured battery backup system can help maintain controlled access during temporary electrical interruptions.

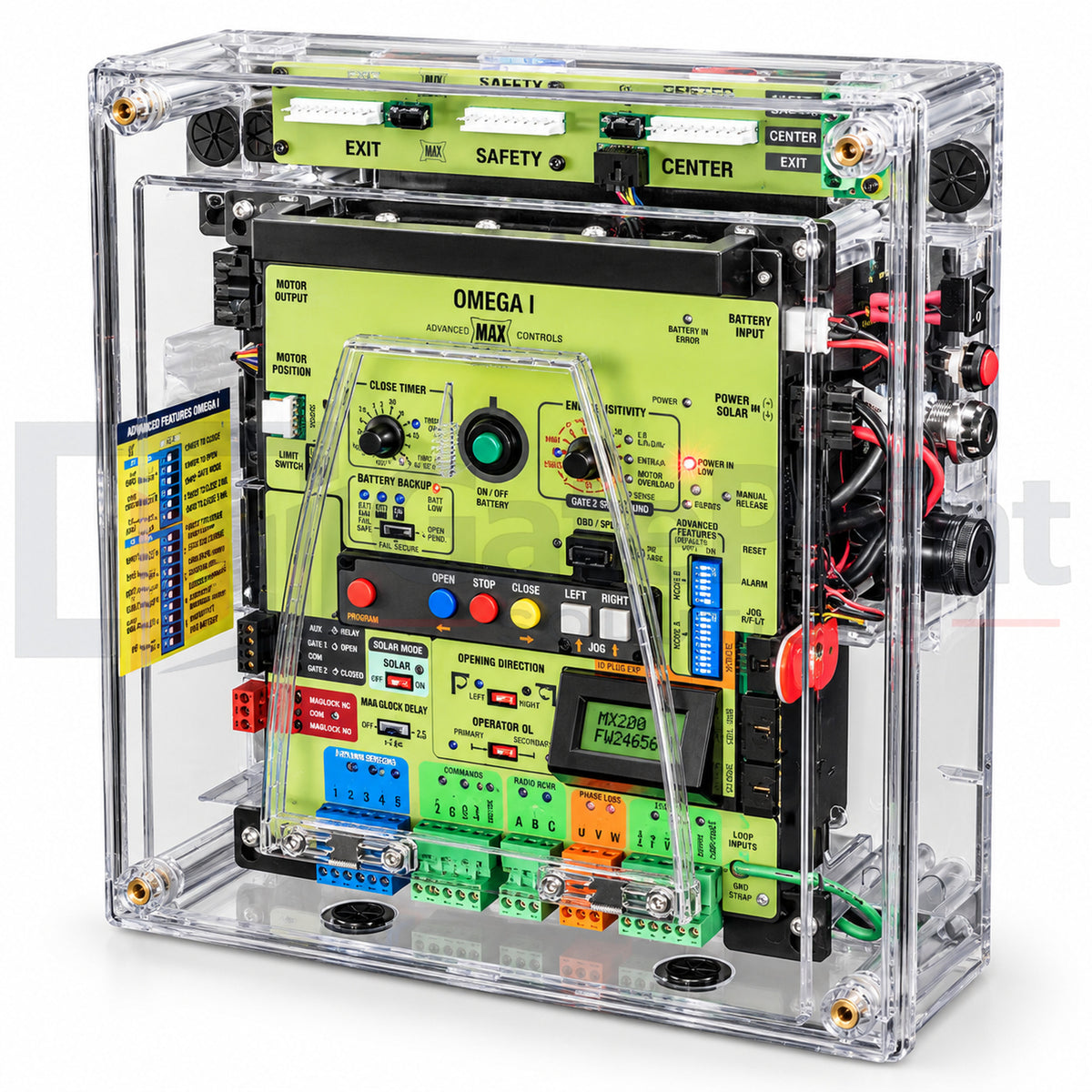

Sealed Electronics & Corrosion-Resistant Construction

The MXG Series introduces improved protection for critical electrical components.

The MXG 2300 incorporates a fully sealed electronics compartment designed to protect the Omega I controller, electrical connections, and integrated loop detector rack from dust, moisture, insects, and other environmental contaminants.

The operator's structural chassis is constructed from fully welded, 1/4-inch cold-rolled steel with gold zinc plating and electrostatic powder coating.

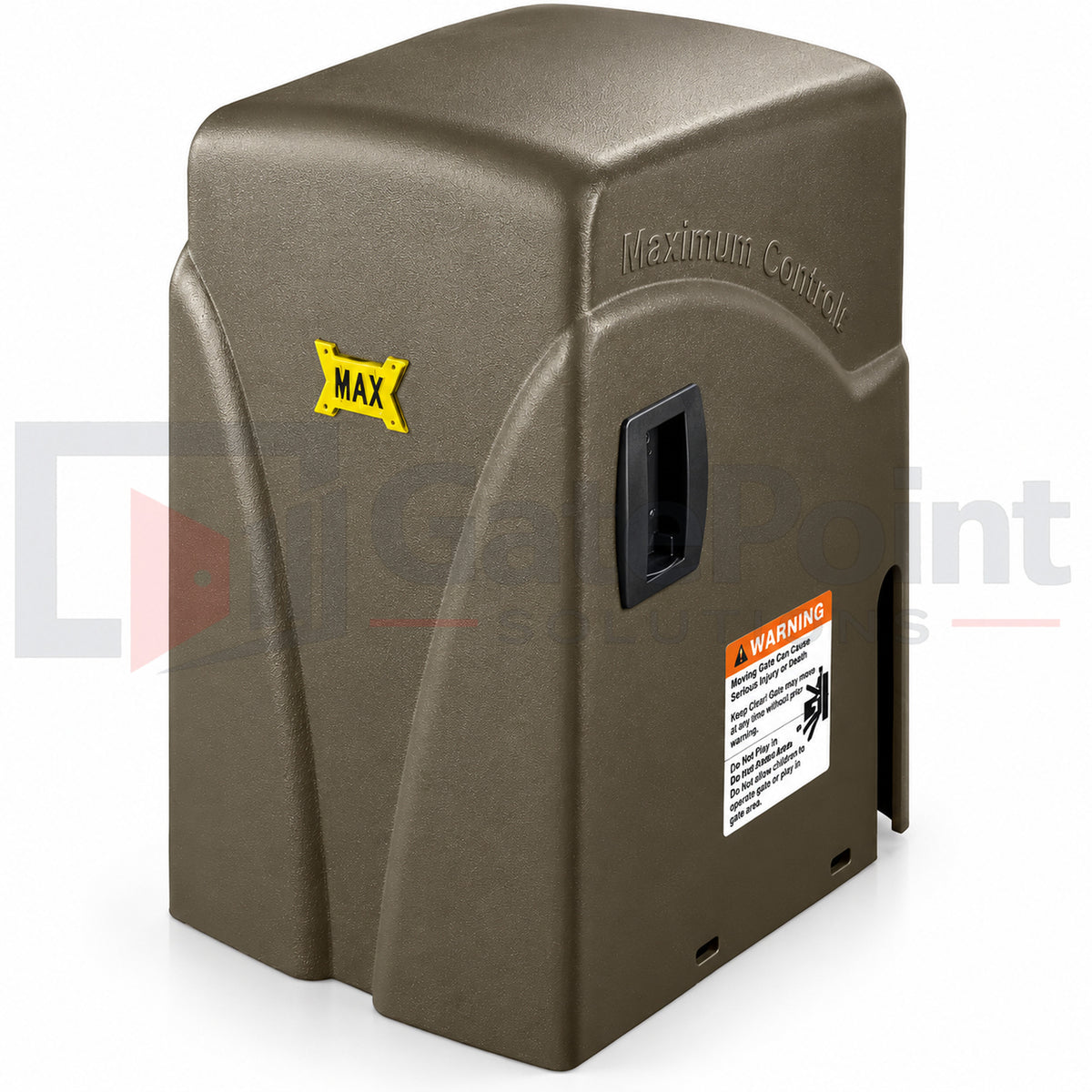

Its standard Military Brown polyethylene cover provides durable outdoor protection and features a keyed locking mechanism to restrict unauthorized access.

Additional available configurations include:

• Optional Military Grey operator cover

• MXG 2300-ST stainless steel configuration with stainless structural and electrical enclosure components

• Compatible MAX Cell Hub connectivity for supported remote monitoring and control

These options make the MXG 2300 suitable for a wide range of commercial environments, including installations where corrosion resistance and serviceability are important considerations.

Advanced Safety & Entrapment Protection

The Maximum Controls MXG 2300 is designed for UL 325 Class I, II, III, and IV vehicular sliding gate applications when installed with the required safety equipment.

Its Omega I control system supports monitored entrapment protection devices and provides advanced electronic reversing detection.

Safety-related capabilities include:

• Adaptive obstruction detection with adjustable sensitivity

• Dynamic magnetic braking

• Motor overcurrent protection

• Monitored photoelectric sensor connections

• Compatible monitored safety edge inputs

• Gate movement and alarm outputs

• Programmable automatic closing timer

• Electronic reversing detection

• Gate shutoff functions for entrapment or overload conditions

Important: Required external monitored entrapment protection devices must be installed according to Maximum Controls' installation instructions and applicable UL 325 requirements. Inherent obstruction detection does not replace required external safety sensors.

Ideal Applications

The Maximum Controls MXG 2300 is an excellent choice for:

• High-traffic gated communities and HOA entrances

• Commercial office complexes

• Apartment buildings and multi-tenant properties

• Self-storage facilities

• Commercial parking lots and garages

• Industrial warehouses and distribution centers

• Manufacturing and commercial facilities

• Secured equipment and storage yards

• Commercial vehicle entrances

• Properties requiring advanced access control and continuous-duty operation

Standard Equipment & Optional Accessories

Manufacturer-Listed Standard Features and Equipment:

• Maximum Controls MXG 2300 Slide Gate Operator

• Omega I intelligent control board

• 24V brushless DC motor

• Size 60 direct-drive gearbox

• Lockable Military Brown polyethylene cover

• Integrated battery backup module with two 12V, 7Ah AGM batteries

• 25 ft of #40 nickel-plated drive chain

• Programmable virtual limit system

• Electronic jog controls

• Sealed electronics compartment

Optional Accessories and Configurations:

• Military Grey operator cover

• MXG 2300-ST stainless steel configuration

• Extended battery backup configuration

• Compatible monitored photoelectric safety sensors

• Monitored safety edge systems

• Vehicle loop detectors

• Keypads, card readers, and access control equipment

• MAX Cell Hub for supported MAX Cloud connectivity

• Compatible wireless safety edge accessories

• Solar power equipment

• Additional drive chain and mounting hardware

Installation Note: The MXG 2300 is intended for vehicular sliding gate applications and must be installed by qualified gate automation professionals. Proper gate construction, electrical installation, monitored entrapment protection, and compliance with applicable safety requirements are essential.

Warranty: Maximum Controls provides a 5-year limited manufacturer warranty, with separate 1-year battery warranty terms. Refer to the manufacturer's current warranty documentation for complete coverage details and exclusions.
