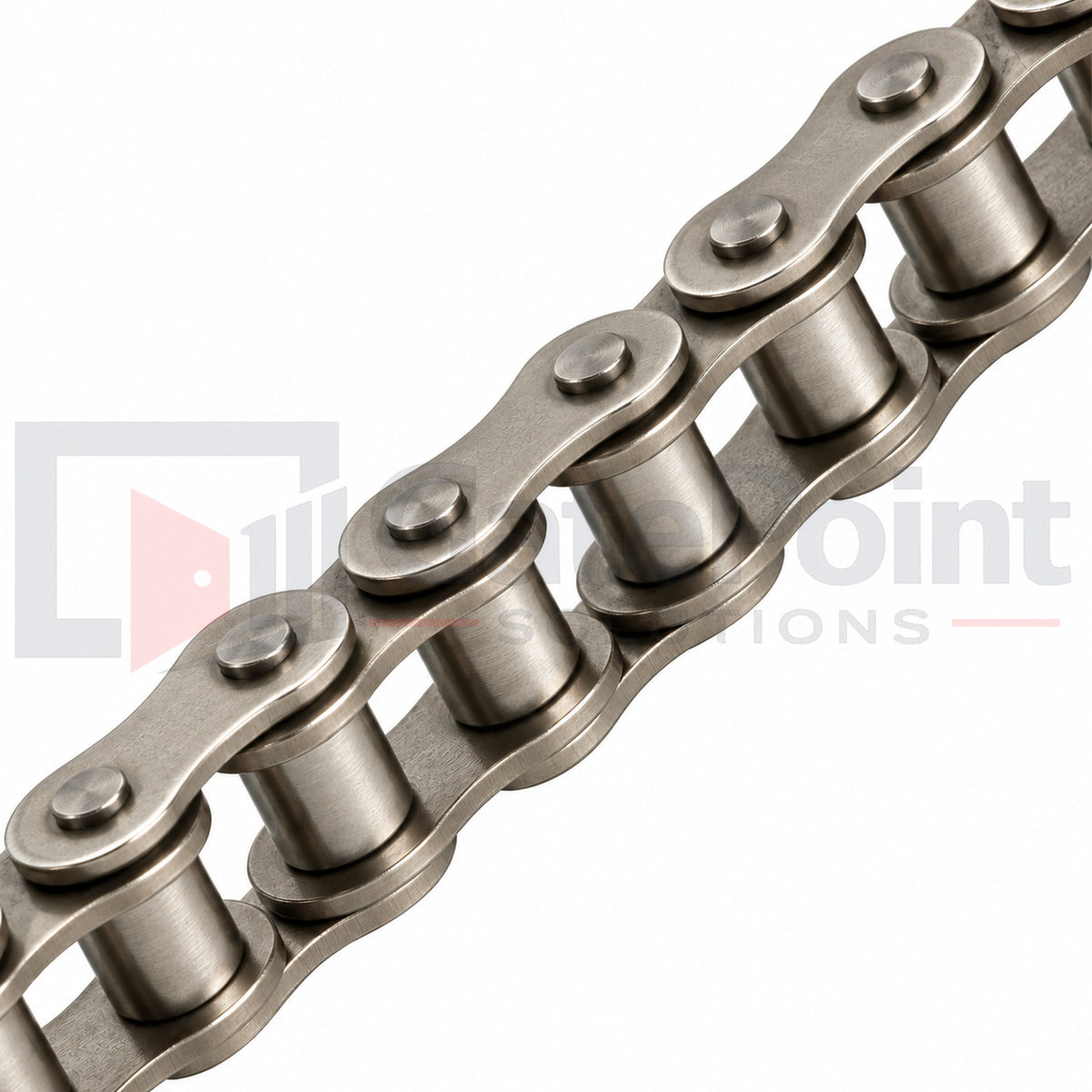

Maximum Controls MX-CBK #40 Nickel-Plated Slide Gate Operator Chain – 30 ft

The Maximum Controls MX-CBK #40 Nickel-Plated Chain – 30 ft is a heavy-duty replacement drive chain designed for compatible Maximum Controls MAX PRO and MXG Series automatic sliding gate operators. Featuring durable nickel-plated steel construction and standard #40 roller chain sizing, this 30-foot chain provides reliable mechanical power transmission for commercial, residential, and industrial sliding gate applications.

Designed for Maximum Controls MAX PRO sliding gate operators, excluding RHINO models, and standard MXG Series sliding gate operators, excluding MXG-ST stainless steel configurations, the MX-CBK is ideal for replacing worn, damaged, or corroded gate operator chain.

The chain's nickel-plated finish provides improved resistance to surface corrosion compared with unfinished steel chain, helping protect the drive system in outdoor environments exposed to moisture, changing temperatures, and routine environmental conditions.

With a 30-foot supplied length, this chain offers additional material for installations requiring more chain than the standard 25-foot configuration. It is particularly useful for compatible sliding gate installations with longer chain routing requirements or replacement applications where a 25-foot length is insufficient.

Automatic sliding gate operators rely on properly sized drive chain to transfer movement from the operator's drive sprocket to the gate. The MX-CBK features ANSI #40 roller chain sizing with a 1/2-inch pitch, supporting correct engagement with compatible sprockets and idler assemblies.

Whether servicing a MAX 1200 FS PRO, MAX 1700 FS PRO, MAX 1500 PRO, MAX 2200 PRO, MAX F18 PRO, or a compatible standard MXG Series operator, the Maximum Controls MX-CBK provides a dependable replacement chain solution for professional gate installers and maintenance technicians.

Key Features & Benefits

• Maximum Controls Part # MX-CBK: Replacement drive chain for compatible Maximum Controls slide gate operators.

• 30-Foot Chain Length: Provides additional chain material for installations requiring more than 25 feet.

• ANSI #40 Roller Chain: Designed for compatible #40 sliding gate drive sprockets and idler systems.

• Nickel-Plated Steel Construction: Offers improved resistance to surface corrosion compared with unfinished steel chain.

• MAX PRO Series Compatibility: Suitable for compatible MAX PRO sliding gate operators, excluding RHINO models.

• Standard MXG Series Compatibility: Designed for applicable standard MXG sliding gate operators.

• Heavy-Duty Drive Application: Transfers mechanical movement between the gate operator and sliding gate.

• Reliable Sprocket Engagement: Correct chain sizing supports consistent movement and dependable power transmission.

• Outdoor Durability: Nickel-plated finish provides additional protection against environmental exposure.

• Replacement & Installation Use: Ideal for worn chain replacement and compatible new gate installations.

• Customizable Chain Length: Can be shortened to the required installation length using appropriate chain tools.

• Commercial & Residential Applications: Suitable for compatible sliding gate systems at gated communities, commercial facilities, and private properties.

Technical Specifications

Specification	Details
Manufacturer	Maximum Controls
Manufacturer Part Number	MX-CBK
Product Type	Sliding Gate Operator Drive Chain
Chain Size	ANSI #40
Chain Pitch	1/2 in
Material	Steel
Finish	Nickel-Plated
Supplied Length	30 ft
Chain Style	Roller Chain
Primary Application	Automatic Sliding Gate Operators
Compatible Series	MAX PRO Slide Gate Operators
Additional Compatibility	Standard MXG Series Slide Gate Operators
Excluded Series	MAX RHINO
Excluded Configuration	MXG-ST Stainless Steel Operators
Installation	Chain-Driven Sliding Gate Systems
Quantity	One 30 ft Chain Length

Nickel-Plated Steel Construction

The Maximum Controls MX-CBK features nickel-plated steel construction designed to provide dependable performance in outdoor gate automation applications.

Sliding gate drive chains are routinely exposed to rain, humidity, dust, temperature fluctuations, and other environmental conditions.

Over time, moisture and contaminants can contribute to corrosion, chain stiffness, and premature wear.

The nickel-plated finish provides a protective surface layer that helps reduce surface corrosion compared with unfinished carbon steel.

Benefits include:

• Improved resistance to rust and corrosion

• Durable steel roller chain construction

• Smooth operation with proper installation and maintenance

• Reduced exposure of the underlying steel to environmental moisture

• Reliable performance in compatible commercial gate systems

Important: Nickel plating provides corrosion resistance but does not make the chain completely corrosion-proof. For applications requiring stainless steel chain, use the appropriate Maximum Controls stainless steel chain configuration.

ANSI #40 Roller Chain Drive System

The MX-CBK utilizes ANSI #40 roller chain, which has a nominal 1/2-inch pitch.

In a chain-driven sliding gate system, the gate operator's motor and gearbox rotate a drive sprocket that engages the chain.

The chain transfers movement between the operator and the sliding gate, allowing controlled opening and closing.

Correct chain size is essential for:

• Proper drive sprocket engagement

• Consistent gate travel

• Efficient mechanical power transmission

• Correct chain alignment

• Reduced risk of chain skipping

• Reduced wear on sprockets and idler assemblies

The MX-CBK is intended for equipment designed to use #40 chain.

It must not be substituted for #50 chain used on Maximum Controls RHINO Series operators.

Maximum Controls Operator Compatibility

The MX-CBK is intended for compatible Maximum Controls sliding gate operators that utilize #40 nickel-plated drive chain.

Compatible MAX PRO Series Operators

• MAX 1200 FS PRO – Fail-safe commercial slide gate operator

• MAX 1700 FS PRO – Heavy-duty fail-safe commercial slide gate operator

• MAX 1500 PRO – Commercial brushless DC slide gate operator

• MAX 2200 PRO – Heavy-duty commercial slide gate operator

• MAX F18 PRO – High-speed commercial slide gate operator

Compatible Standard MXG Series Operators

• MXG 1800 FS – Standard fail-safe commercial slide gate operator

• MXG 2300 – Standard commercial slide gate operator

Excluded Operators & Configurations

The MX-CBK is not intended for:

• MAX RHINO 4000 FS

• MAX RHINO 5500

• Other RHINO Series operators requiring #50 chain

• MXG 1800 FS-ST stainless steel configuration

• MXG 2300-ST stainless steel configuration

• Operators requiring a different chain size or stainless steel chain

Compatibility Note: Always verify the exact operator model, chain size, and required material before ordering. This product is intended for compatible standard MAX PRO and MXG configurations.

30-Foot Replacement Chain Length

The MX-CBK is supplied in a 30-foot length, providing additional chain material compared with the 25-foot configuration.

The longer length is useful for installations where the gate opening, travel distance, or chain routing requires more than 25 feet of chain.

Depending on the installation, the chain may need to be shortened to the required length.

The amount of chain required depends on:

• Gate travel distance

• Operator placement

• Chain bracket locations

• Drive sprocket and idler arrangement

• Installation-specific chain routing

• Manufacturer mounting requirements

Important: The 30-foot length does not automatically establish compatibility with longer gates. The operator's rated gate length and weight limitations must still be followed.

Replacement & Maintenance Applications

Replacing worn or damaged gate operator chain is an important part of maintaining a reliable automatic sliding gate system.

Signs that replacement may be necessary include:

• Excessive rust or corrosion

• Stiff or seized chain links

• Damaged rollers or side plates

• Chain elongation

• Poor sprocket engagement

• Irregular gate movement

• Difficulty maintaining proper tension

• Visible chain damage

When replacing the chain, installers should also inspect the drive sprocket, idler wheels, chain brackets, gate rollers, and track alignment.

A new chain cannot correct mechanical problems caused by damaged sprockets, improper alignment, or excessive gate resistance.

Proper Chain Alignment & Tension

Correct chain installation is essential for dependable sliding gate operation.

Maximum Controls installation instructions emphasize maintaining proper chain alignment with the operator's sprocket and idler wheels.

For applicable MAX PRO installations, the manufacturer specifies maintaining no more than approximately 1 inch of chain sag per 10 feet of travel, while avoiding excessive tension.

Overtightening can place unnecessary stress on the drive sprocket, gearbox, idler wheels, and mounting components.

Proper installation should include:

1. Disconnecting and securing electrical power.

2. Confirming the operator requires #40 chain.

3. Inspecting the existing sprockets and idler assemblies.

4. Measuring the required replacement chain length.

5. Cutting the chain to the appropriate length when necessary.

6. Installing compatible connecting hardware.

7. Aligning the chain parallel to the gate.

8. Adjusting tension according to the operator manual.

9. Testing the gate throughout its full travel.

10. Verifying all safety devices and operating functions.

Always follow the installation instructions for the specific Maximum Controls operator.

Nickel-Plated vs. Stainless Steel Chain

Maximum Controls offers different drive chain configurations for its sliding gate operator product families.

MX-CBK – #40 Nickel-Plated Chain

• Available here in a 30-foot length

• Nickel-plated steel construction

• Compatible standard MAX PRO slide operators

• Compatible standard MXG slide operators

• Excludes RHINO and MXG-ST configurations

MXG013S – #40 Stainless Steel Chain

• 30-foot stainless steel chain configuration

• Enhanced corrosion resistance

• Intended for compatible MXG-ST stainless steel slide operators

• Additional MAX PRO compatibility where specified

• Excludes RHINO operators

Always match the chain size, material, and length to the operator's manufacturer requirements.

Ideal Applications

The Maximum Controls MX-CBK 30 ft chain is suitable for:

• MAX PRO slide gate operator chain replacement

• Standard MXG Series slide gate operator maintenance

• Commercial sliding gate repairs

• Longer chain routing applications

• Residential gated entrances

• Gated communities and HOA properties

• Apartment and condominium entrances

• Self-storage facilities

• Commercial parking facilities

• Industrial vehicle access systems

• Replacement of worn or corroded #40 chain

Product Information & Ordering Notes

Manufacturer: Maximum Controls
Part Number: MX-CBK
Product: #40 Nickel-Plated Roller Chain
Length: 30 Feet
Finish: Nickel-Plated Steel
Application: Compatible MAX PRO and Standard MXG Slide Gate Operators
Exclusions: MAX RHINO Series and MXG-ST Stainless Steel Configurations

Important Ordering Note: This listing is for the 30-foot nickel-plated chain. Gate operators, sprockets, idler wheels, mounting brackets, and connecting hardware are not included unless specifically identified in the supplied package.

Installation: Professional installation is recommended. Confirm the correct chain size, required length, operator compatibility, and installation requirements before ordering.
