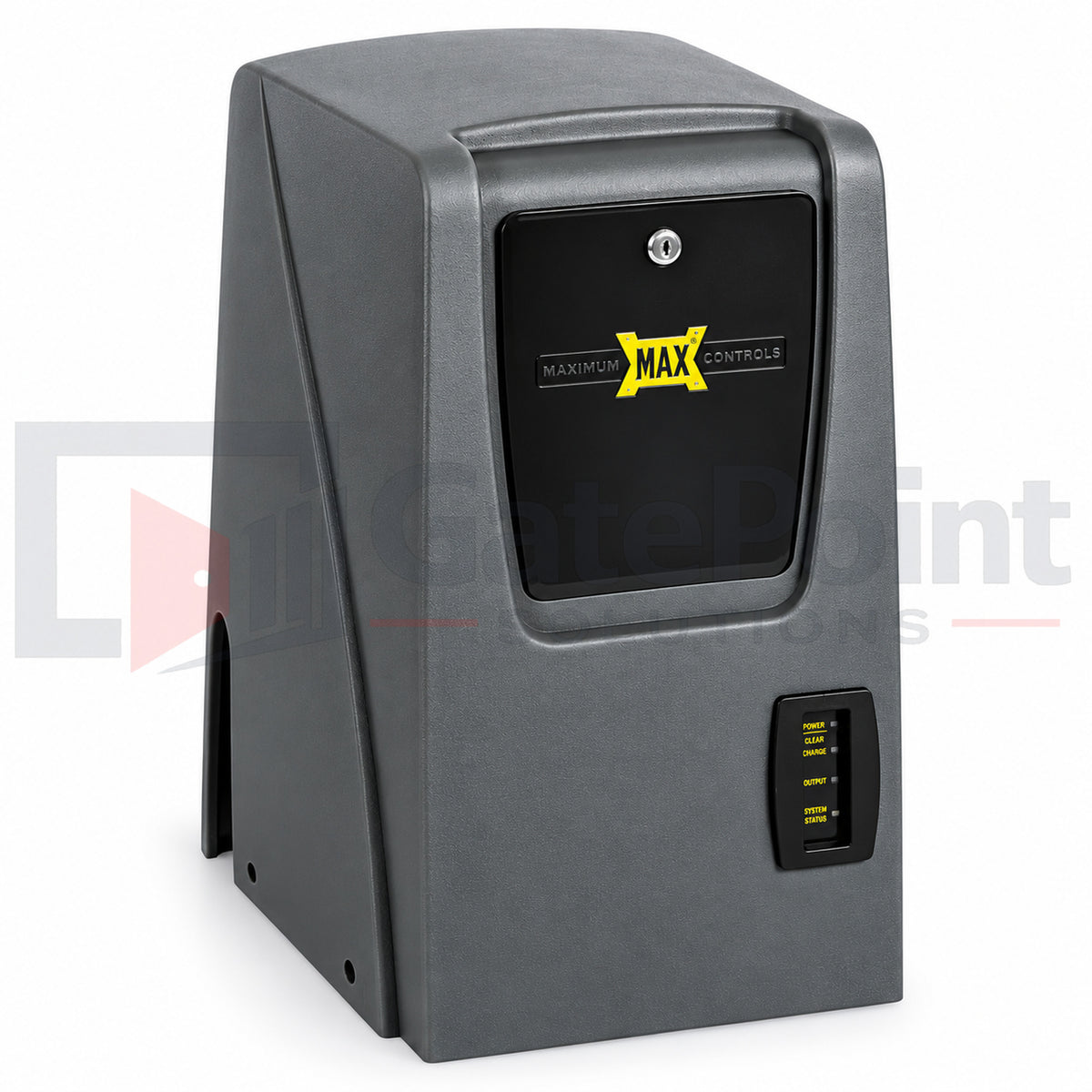

Maximum Controls MAX 2200 PRO High-Traffic Commercial Slide Gate Operator

The Maximum Controls MAX 2200 PRO is a heavy-duty, high-traffic commercial sliding gate operator engineered for demanding access control environments requiring exceptional power, security, and continuous-duty performance. Featuring a powerful 24V brushless DC motor, advanced Matrix III controller, and industrial-grade direct-drive gearbox, the MAX 2200 PRO is designed to automate sliding gates weighing up to 2,200 lbs.

Built for commercial and industrial applications, the MAX 2200 PRO delivers smooth, precise gate movement at speeds up to 12 inches per second, making it an excellent solution for gated communities, distribution centers, commercial facilities, industrial properties, and high-traffic secured entrances.

Unlike traditional gate operators that rely on internal belts, pulleys, or chain-driven transmissions, the MAX 2200 PRO utilizes a heavy-duty Size 60 cast iron gearbox with a 30:1 gear ratio. This direct-drive configuration delivers exceptional torque while reducing internal mechanical wear and maintenance requirements.

The operator's intelligent Digital Signal Processing (DSP) motor control technology continuously monitors gate movement, providing controlled acceleration, deceleration, precise stopping, and adaptive obstruction detection. Combined with programmable operating parameters, integrated battery backup, and advanced security features, the MAX 2200 PRO delivers reliable gate automation for demanding commercial environments.

Designed for long-term outdoor performance, the MAX 2200 PRO incorporates a fully welded 1/4-inch steel frame protected by gold zinc plating and electrostatic powder coating. Its modular construction, lockable access cover, and onboard diagnostics simplify installation, servicing, and maintenance.

Key Features & Benefits

• 2,200 lb Gate Capacity: Heavy-duty operator designed for large commercial and industrial sliding gates.

• 24V Brushless DC Motor: High-efficiency motor with performance equivalent to a 1-1/4 HP AC motor, delivering exceptional torque and precise motion control.

• Continuous-Duty Operation: Designed for frequent gate cycles in high-traffic commercial applications.

• Matrix III Intelligent Controller: Advanced microprocessor-based control system with programmable operating functions and integrated diagnostics.

• Heavy-Duty Direct Drive: Size 60 cast iron gearbox with a 30:1 gear ratio eliminates internal drive belts and pulleys.

• 12 Inches per Second Gate Speed: Programmable operating speed with 16 selectable settings and independent opening and closing adjustments.

• Integrated Battery Backup: Built-in backup system designed to maintain gate operation during AC power interruptions.

• Programmable Virtual Limits: Electronic open and close limit programming eliminates the need for standard mechanical limit switches.

• Advanced DSP Motion Control: Intelligent acceleration, deceleration, and adaptive motor regulation for smooth gate movement.

• Dynamic Magnetic Braking: Provides rapid stopping response during obstruction events.

• Adaptive Obstruction Detection: Includes 16 selectable sensitivity settings for site-specific adjustments.

• Advanced Security Functions: Anti-tailgating protection, gate-disable programming, tamper detection, and magnetic lock relay control.

• Onboard Event Logging: Stores up to 8,000 operating events and diagnostic records.

• Dual-Voltage Input: Selectable 115V or 230V AC single-phase electrical supply.

• Solar-Ready Power Management: Supports compatible solar power configurations and energy-saving operating modes.

• Corrosion-Resistant Construction: Heavy-duty welded steel chassis with protective zinc plating and powder coating.

• 5-Year Manufacturer Warranty: Limited manufacturer warranty, with separate battery warranty terms.

Technical Specifications

Specification	Details
Manufacturer	Maximum Controls
Model	MAX 2200 PRO
Operator Type	Commercial Sliding Gate Operator
Motor	24V Brushless DC
Motor Performance	Equivalent to 1-1/4 HP AC
Maximum Gate Weight	2,200 lbs
Maximum Gate Length	50 ft
Gate Speed	12 inches per second
Duty Cycle	Continuous
Controller	Matrix III
Gearbox	Size 60 Heavy-Duty Cast Iron
Gear Ratio	30:1
Drive System	Direct Gear Drive
Input Voltage	115V / 230V AC, Single Phase
Input Current	6A at 115V / 2A at 230V
Accessory Power Outputs	12V DC and 24V DC
Limit System	Programmable Virtual Limits
Battery Backup	Integrated
Operating Temperature	-4°F to 165°F (-20°C to 74°C)
Dimensions	14.5" W × 19" D × 25.5" H
Chain Height	7.5"
Shipping Weight	158 lbs
Drive Chain	#40 Nickel-Plated
UL 325 Usage Classes	I, II, III, IV
Manufacturer Warranty	5 Years; Battery 1 Year

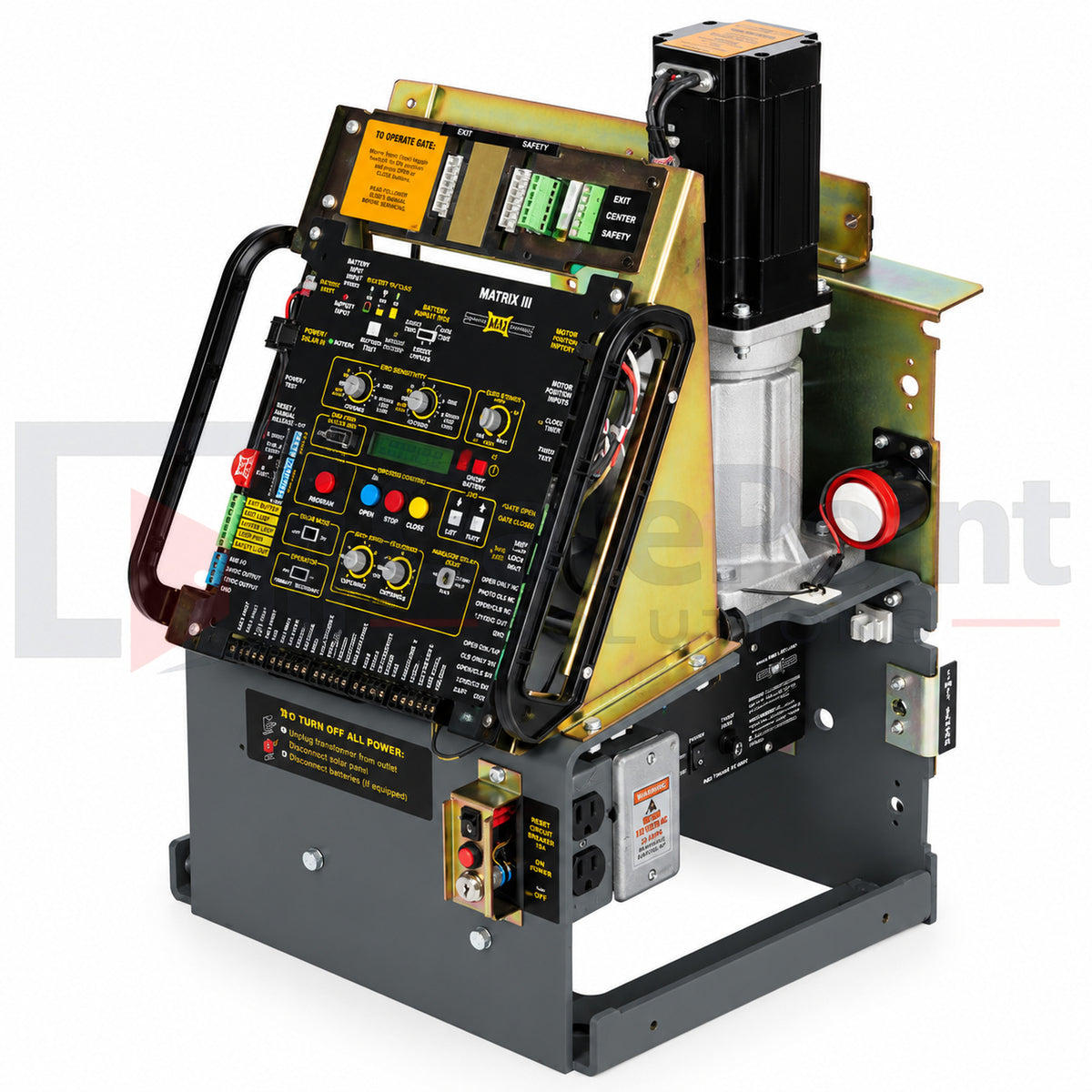

Advanced Matrix III Control System

The MAX 2200 PRO features Maximum Controls' intelligent Matrix III control system, engineered to provide precise motor control, advanced security management, and simplified system diagnostics.

Using adaptive DSP technology, the controller continuously evaluates gate movement and motor performance to maintain controlled acceleration, deceleration, and stopping accuracy.

The system provides installers with extensive programming capabilities, including:

• 16 selectable gate speed settings

• Independent opening and closing speed adjustments

• Programmable automatic close timer from 0 to 60 seconds

• Adjustable obstruction detection sensitivity

• Programmable partial-opening functions

• Anti-tailgating and gate-disable security modes

• Primary and secondary operator coordination

• Gate status monitoring and alarm outputs

• LCD diagnostic display with operating fault history

• Event logging for up to 8,000 operating events

These features allow the MAX 2200 PRO to accommodate complex commercial gate installations while providing technicians with valuable diagnostic information for troubleshooting and maintenance.

Heavy-Duty Brushless Motor & Direct-Drive Gearbox

At the heart of the MAX 2200 PRO is a powerful 24V brushless DC motor designed to deliver the torque equivalent of a 1-1/4 HP AC motor.

The brushless motor incorporates Hall Effect position sensing technology to monitor gate movement and provide accurate feedback to the Matrix III controller. This enables intelligent speed regulation, precise stopping, and smooth ramp-up and ramp-down operation.

Maximum Controls rates its brushless motor technology for approximately 35,000 operating hours or up to 6 million cycles under specified conditions.

The motor is paired with a Size 60 cast iron direct-drive gearbox, featuring a 30:1 gear reduction ratio, bronze gearing, sealed shafts, and a synthetic oil bath.

By eliminating internal belts, pulleys, and secondary drive chains, this configuration reduces common mechanical maintenance points while delivering consistent power transfer for heavy sliding gates.

Integrated Battery Backup & Power Management

The MAX 2200 PRO includes a built-in battery backup system designed to maintain gate operation during interruptions to the primary AC power supply.

Maximum Controls specifies a minimum of 100 backup operating cycles under designated conditions, with actual performance depending on gate weight, travel distance, battery condition, and environmental factors.

Three selectable battery backup operating modes allow the installer to configure gate behavior according to the security and access requirements of the property.

Additional power management capabilities include:

• Switchable 115V / 230V AC input

• Built-in 12V DC and 24V DC accessory outputs

• Intelligent energy-saving functionality

• Solar-ready battery charging and regulation capabilities

• Motor overcurrent protection

• Advanced lightning and surge protection across 44 channels

These features make the MAX 2200 PRO suitable for installations requiring dependable electrical performance and backup operation.

Commercial Security & Access Control Features

Designed for high-security commercial and industrial entrances, the MAX 2200 PRO incorporates advanced gate management functions beyond standard open-and-close operation.

Anti-Tailgating Protection: Advanced vehicle loop management and programmable security functions help control unauthorized vehicle entry.

Gate Disable Function: Allows authorized personnel to temporarily disable normal access commands while maintaining configured emergency access functions.

Tamper Detection: Integrated alarm outputs can activate when unauthorized gate movement or tampering is detected.

Magnetic Lock Control: Programmable relay outputs support compatible magnetic locking devices with adjustable delay settings.

Partial Gate Opening: Programmable inputs allow restricted opening distances for authorized vehicles while maintaining full-opening capabilities for emergency access.

Gate Status Monitoring: Dedicated outputs support integration with compatible monitoring and security systems.

Emergency Operation: An electronic jog-switch release provides controlled gate movement for authorized servicing or emergency operation.

Safety & Entrapment Protection

The MAX 2200 PRO is designed for UL 325 Class I, II, III, and IV vehicular gate applications when properly installed with the required safety equipment.

Its integrated safety functions include adaptive obstruction detection, dynamic magnetic braking, motor overcurrent protection, and programmable alarm outputs.

External monitored photoelectric sensors and/or compatible sensing edges must be installed according to the manufacturer's instructions and applicable UL 325 requirements.

Important: The operator's built-in obstruction sensing does not eliminate the need for required external monitored entrapment protection devices.

Ideal Applications

The Maximum Controls MAX 2200 PRO is an excellent choice for:

• High-traffic gated communities and HOA entrances

• Industrial warehouses and distribution centers

• Commercial and manufacturing facilities

• Self-storage properties and secured parking areas

• Apartment complexes and multi-tenant developments

• Commercial vehicle entrances and controlled-access driveways

• Institutional and government facilities

• Large sliding gates requiring continuous-duty performance

Included Equipment

• Maximum Controls MAX 2200 PRO Sliding Gate Operator

• Standard lockable operator cover

• Integrated Matrix III controller

• Built-in battery backup module

• 25 ft of #40 nickel-plated drive chain

• Drive chain mounting brackets

Optional Accessories (Sold Separately):

• Heavy-duty 15-gauge steel operator cover

• Magnetic limit sensor and chain magnet kit

• Compatible monitored photoelectric safety sensors

• Monitored safety edge systems

• Vehicle loop detectors and access control equipment

• MAX Cell Hub for compatible MAX Cloud connectivity

• Optional chain-drop monitoring equipment

Installation Note: The MAX 2200 PRO is intended for vehicular sliding gates and must be installed by qualified personnel in accordance with Maximum Controls' instructions, UL 325 requirements, and applicable safety standards.

Warranty: Covered by Maximum Controls' 5-year limited manufacturer warranty, with a separate 1-year battery warranty. Refer to the manufacturer's warranty documentation for complete terms and conditions.
