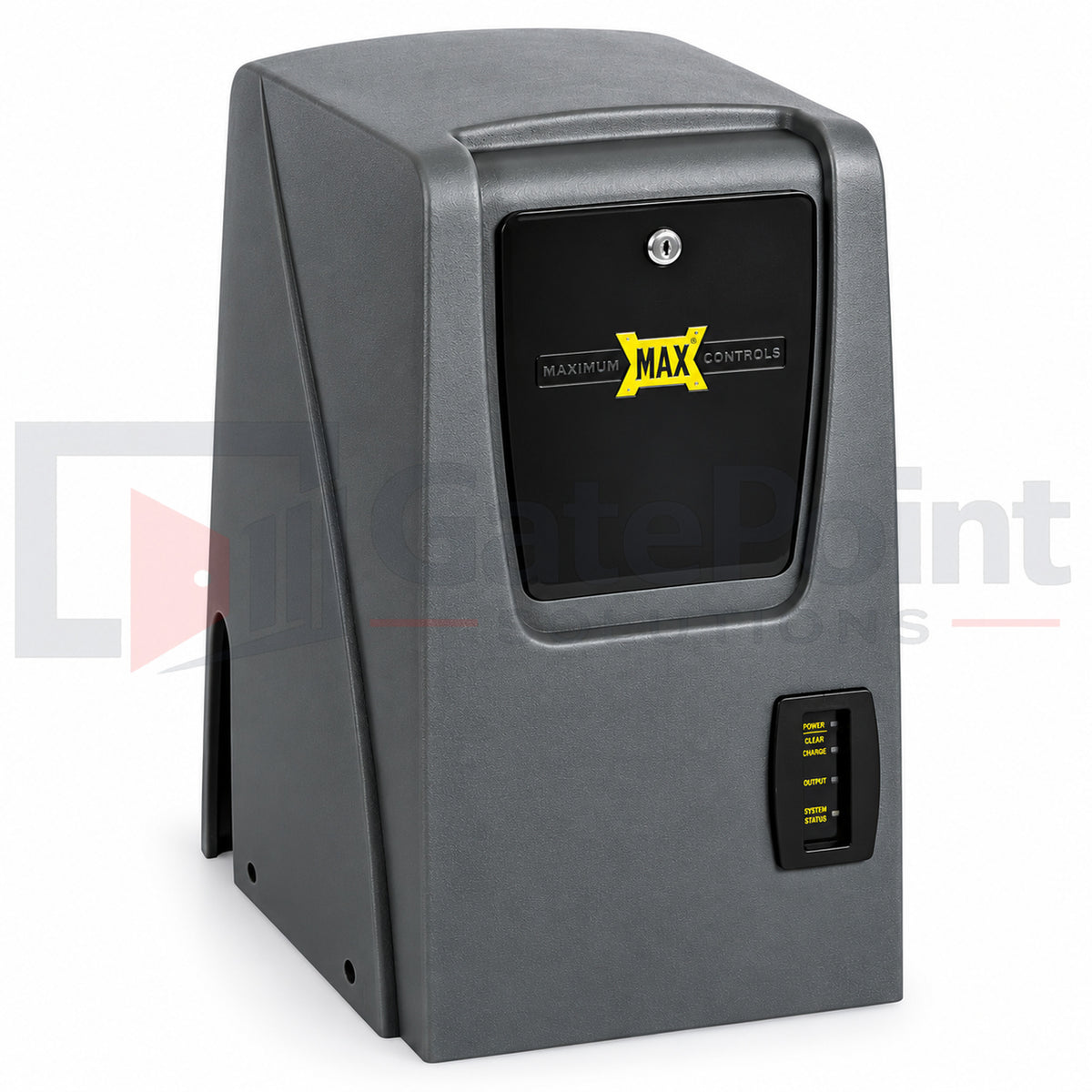

Maximum Controls MAX 1500 PRO High-Traffic Commercial Slide Gate Operator

The Maximum Controls MAX 1500 PRO is a high-performance, commercial-grade automatic sliding gate operator engineered for demanding, high-traffic access control applications. Featuring an advanced 24V brushless DC motor, Matrix III intelligent controller, and heavy-duty direct-drive gearbox, the MAX 1500 PRO delivers reliable, precise gate movement for gated communities, commercial properties, industrial facilities, and secured entrances.

Designed to operate sliding gates weighing up to 1,500 lbs, the MAX 1500 PRO combines continuous-duty operation with intelligent motion control, advanced security features, and integrated battery backup. Its brushless DC motor provides the performance equivalent of a 1/2 HP AC motor while reducing mechanical wear and maintenance requirements.

The operator utilizes Maximum Controls' adaptive Digital Signal Processing (DSP) technology to regulate acceleration, deceleration, and obstruction detection. With programmable gate speeds, virtual limit settings, and advanced diagnostics, the MAX 1500 PRO provides installers with exceptional control over gate performance and operation.

Built for long-term durability, the operator features a fully welded, heavy-duty steel frame with corrosion-resistant gold zinc plating and powder coating. Its compact footprint and modular design make it an excellent choice for both new installations and replacement of existing commercial slide gate operators.

Key Features & Benefits

• 1,500 lb Gate Capacity: Engineered for heavy commercial sliding gates and high-traffic entrances.

• 24V Brushless DC Motor: High-efficiency motor with an integrated Hall Effect encoder and manufacturer-rated life expectancy of up to 6 million cycles.

• Continuous-Duty Performance: Designed for frequent gate operation without conventional motor overheating limitations.

• Matrix III Intelligent Controller: Advanced microprocessor-based control system with programmable operating parameters and LCD diagnostics.

• Heavy-Duty Direct Drive: Size 50 cast iron gearbox with a 30:1 gear ratio eliminates internal drive belts and chains.

• 12 Inches per Second Gate Speed: Efficient gate travel with 16 selectable speed settings and independent opening and closing speed adjustments.

• Built-In Battery Backup: Integrated backup system designed to provide a minimum of 100 operating cycles during an AC power outage under specified conditions.

• Programmable Virtual Limits: Electronic open and close limit programming, with optional magnetic limit sensors available.

• Advanced Obstruction Detection: Adaptive obstruction sensing with 16 adjustable sensitivity settings and dynamic magnetic braking.

• Intelligent Ramp-Up & Ramp-Down: Smooth acceleration and deceleration reduce mechanical shock and gate wear.

• Integrated Security Functions: Anti-tailgating controls, tamper alerts, gate status monitoring, and programmable partial opening.

• Onboard Diagnostics: LCD fault reporting and event logging for up to 8,000 operating events.

• Dual-Voltage Input: Selectable 115V or 230V AC single-phase power.

• Solar-Ready Design: Advanced power management and solar regulation capabilities for appropriately configured installations.

• Corrosion-Resistant Construction: Fully welded steel frame with gold zinc plating and protective powder coating.

Technical Specifications

Specification	Details
Manufacturer	Maximum Controls
Model	MAX 1500 PRO
Operator Type	Commercial Sliding Gate Operator
Motor	24V Brushless DC
Motor Equivalent	1/2 HP AC
Controller	Matrix III
Maximum Gate Weight	1,500 lbs
Gate Speed	12 inches per second
Duty Cycle	Continuous
Drive System	Direct Gear Drive
Gearbox	Size 50 Cast Iron, 30:1 Ratio
Input Voltage	115V / 230V AC, Single Phase
Input Current	6A at 115V / 2A at 230V
DC Accessory Outputs	12V DC and 24V DC
Limit System	Programmable Virtual Limits
Battery Backup	Built-In, Minimum 100 Cycles
Operating Temperature	-4°F to 165°F (-20°C to 74°C)
Dimensions	14.5" W × 19" D × 25.5" H
Chain Height	7.5"
Shipping Weight	152 lbs
Chain	#40 Nickel-Plated
UL 325 Usage Classes	I, II, III, IV
Manufacturer Warranty	5 Years; Battery 1 Year

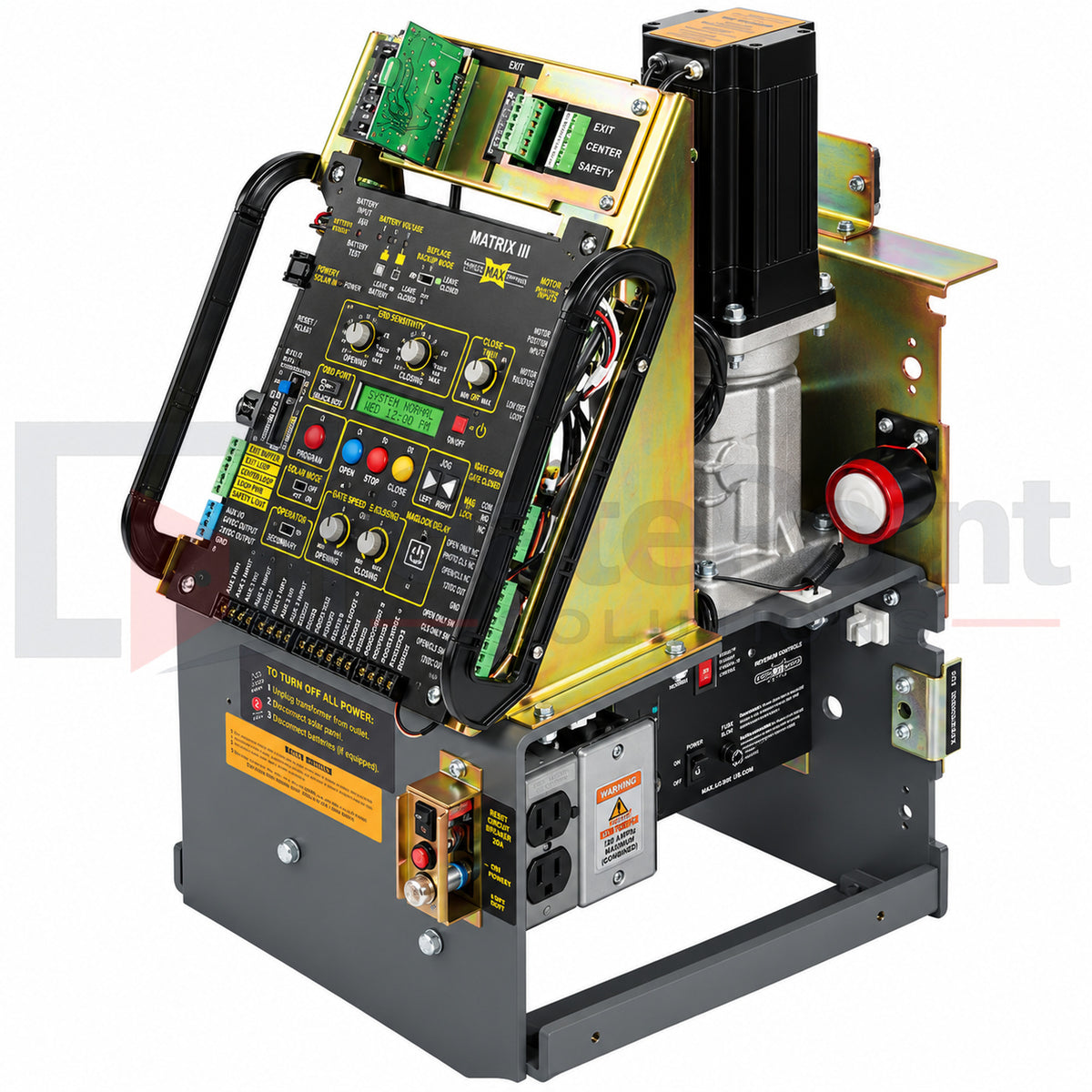

Advanced Matrix III Control Technology

The MAX 1500 PRO incorporates the Maximum Controls Matrix III control system, providing sophisticated gate operation management and real-time diagnostic capabilities.

Its adaptive DSP motor controller continuously regulates gate movement, allowing precise acceleration, deceleration, and stopping performance. Programmable settings enable installers to configure gate travel speeds, obstruction sensitivity, automatic closing timers, and partial-opening functions.

An integrated LCD diagnostic interface displays operating conditions and fault information, while onboard event logging records up to 8,000 events to assist with troubleshooting and maintenance.

Integrated Battery Backup & Power Management

The MAX 1500 PRO includes an integrated battery backup system to maintain gate operation during electrical power interruptions. The manufacturer specifies a minimum of 100 operating cycles under designated conditions, with actual performance depending on gate weight, installation conditions, and battery health.

Selectable backup operating modes allow installers to configure the gate's response to AC power loss according to site security and access requirements.

The system also supports energy-saving functionality and solar-ready power management for compatible configurations.

Commercial Security & Safety Features

Designed for secured entrances, the MAX 1500 PRO incorporates multiple programmable security and safety functions, including:

• Adaptive obstruction detection and dynamic braking

• Anti-tailgating functionality for controlled vehicle access

• Programmable partial opening for authorized vehicles

• Tamper detection and alarm relay outputs

• Magnetic lock control with adjustable delay

• Gate position and status monitoring

• Integrated entrapment protection inputs

• Automatic closing timer adjustments

• Emergency access programming

The operator is designed for UL 325 Class I, II, III, and IV applications when installed with the required monitored entrapment protection devices and in accordance with applicable installation requirements.

Ideal Applications

The Maximum Controls MAX 1500 PRO is well suited for:

• Gated residential communities and HOA entrances

• Commercial and industrial properties

• Self-storage facilities and secured parking areas

• Apartment complexes and multi-tenant properties

• Warehouses and distribution facilities

• Commercial driveways with frequent vehicle traffic

• Access-controlled facilities requiring dependable continuous-duty operation

Included Equipment

• Maximum Controls MAX 1500 PRO Slide Gate Operator

• Standard lockable operator cover

• Integrated Matrix III controller

• Built-in battery backup system

• 25 ft of #40 nickel-plated drive chain and mounting brackets

Installation Note: Required external monitored safety sensors and site-specific access control accessories must be selected according to the installation. Optional magnetic limit sensors, steel cover, and remote connectivity accessories are available separately.

Warranty: Manufacturer's limited warranty applies. Refer to Maximum Controls' current warranty documentation for complete terms and exclusions.
