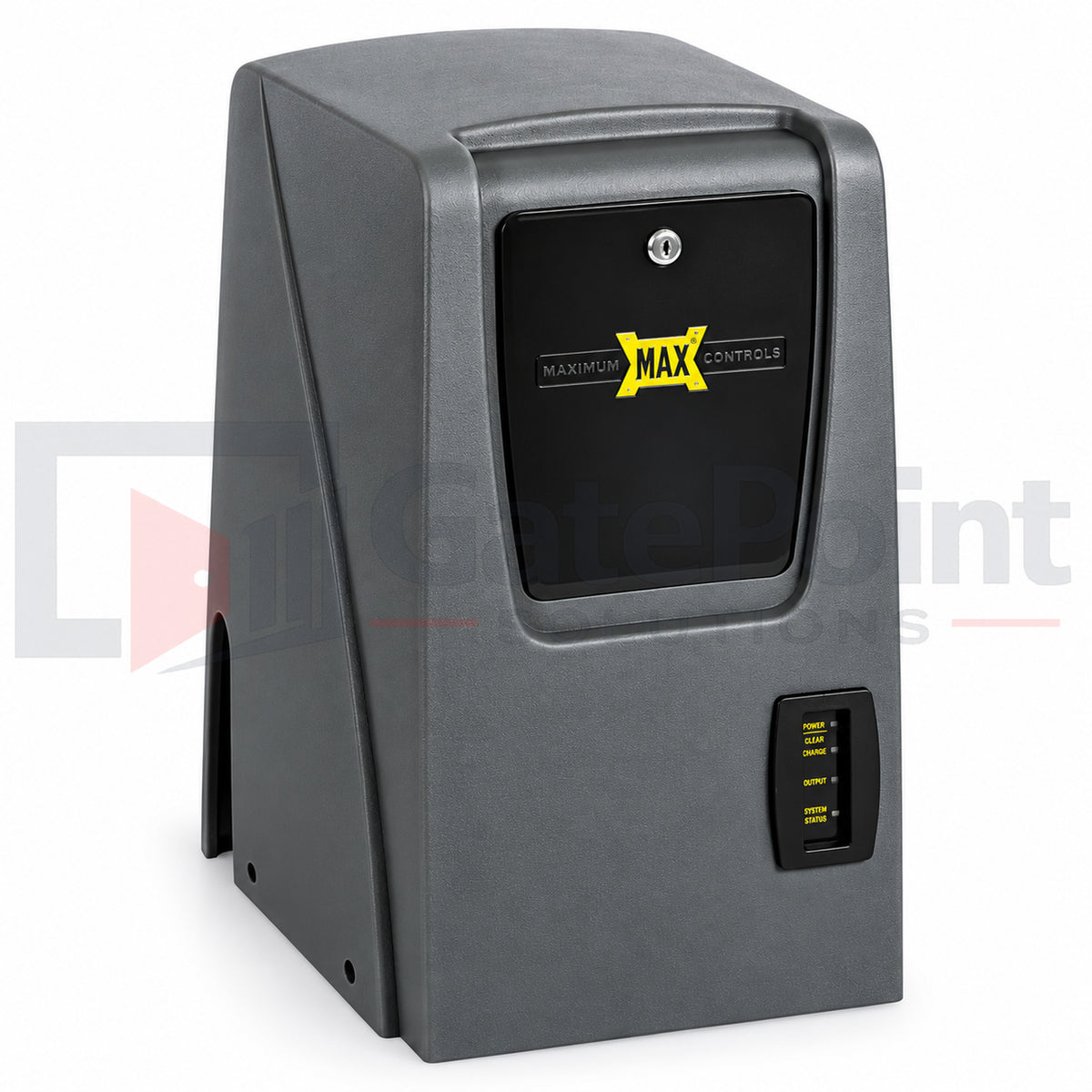

Maximum Controls MAX 1200 FS PRO High-Traffic Commercial Slide Gate Operator

The Maximum Controls MAX 1200 FS PRO is a high-performance, fail-safe commercial sliding gate operator engineered for reliable access control, continuous-duty operation, and emergency gate accessibility. Powered by an advanced 24V brushless DC motor and Matrix III intelligent control system, this heavy-duty automatic slide gate opener is designed to operate gates weighing up to 1,200 lbs and measuring up to 25 feet in length, with travel speeds reaching 12 inches per second.

Unlike conventional commercial slide gate operators, the MAX 1200 FS PRO incorporates a specialized fail-safe, back-drivable drive system that allows the gate to be manually pushed open when its braking system is released. This distinctive feature provides important emergency access capabilities during electrical failures, battery depletion, or authorized manual release.

Designed for high-traffic gated communities, commercial properties, industrial facilities, public storage facilities, and secured vehicle entrances, the MAX 1200 FS PRO combines intelligent motion control with advanced security features and rugged mechanical construction.

Its heavy-duty Size 50 cast iron direct-drive gearbox with a 20:1 reduction ratio eliminates internal drive belts and pulleys, helping reduce maintenance requirements while delivering smooth, consistent power transmission. The operator also features programmable gate speeds, integrated battery backup, intelligent obstruction detection, and extensive onboard diagnostics.

Built on a fully welded, 1/4-inch steel chassis with gold zinc plating and electrostatic powder coating, the MAX 1200 FS PRO is engineered for dependable outdoor operation in demanding commercial environments.

Key Features & Benefits

• 1,200 lb Gate Capacity: Designed to automate commercial sliding gates weighing up to 1,200 lbs and measuring up to 25 ft in length.

• Fail-Safe, Back-Drivable Operation: Allows the gate to be manually pushed when the braking system is released, supporting emergency access and power-loss procedures.

• 24V Brushless DC Motor: High-efficiency motor with Hall Effect position sensing and intelligent motion control.

• Continuous-Duty Performance: Engineered for frequent opening and closing cycles at high-traffic entrances.

• 12 Inches per Second Gate Speed: Programmable operating speed with 16 selectable settings and independent opening and closing adjustments.

• Matrix III Intelligent Controller: Advanced microprocessor-based system with adaptive Digital Signal Processing (DSP), programmable settings, and LCD diagnostics.

• Heavy-Duty Direct-Drive Gearbox: Size 50 cast iron gearbox with a 20:1 gear ratio and no internal belts or pulleys.

• Local & Remote Manual Release: Supports authorized gate release through a local switch, keypad, or compatible dry-contact command.

• Dynamic Magnetic Braking: Helps resist unauthorized gate movement while the operator is secured.

• Integrated Battery Backup: Built-in backup system rated for a minimum of 100 operating cycles under manufacturer-specified conditions.

• Programmable Virtual Limits: Standard electronic open and close limit programming, with optional magnetic limit sensors.

• Adaptive Obstruction Detection: 16 selectable sensitivity settings and intelligent electronic reversing detection.

• Anti-Tailgating Security: Integrated vehicle loop management and programmable security functions.

• Onboard Diagnostics: LCD error reporting and event logging for up to 8,000 operating events.

• Dual-Voltage AC Input: Selectable 115V or 230V AC single-phase operation.

• Solar-Ready Power Management: Compatible with appropriately configured Maximum Controls solar power systems.

• Corrosion-Resistant Construction: Welded steel frame with gold zinc plating and protective powder coating.

Technical Specifications

Specification	Details
Manufacturer	Maximum Controls
Model	MAX 1200 FS PRO
Operator Type	Fail-Safe Commercial Slide Gate Operator
Motor	24V Brushless DC
Maximum Gate Weight	1,200 lbs
Maximum Gate Length	25 ft
Maximum Gate Speed	12 inches per second
Duty Cycle	Continuous
Control System	Matrix III
Gearbox	Size 50 Cast Iron
Gear Ratio	20:1
Drive System	Direct Gear Drive
Emergency Release	Local Switch, Keypad, or Dry-Contact Relay
Manual Operation	Back-Drivable with Brake Released
Input Voltage	115V / 230V AC, Single Phase
Input Current	6A at 115V / 2A at 230V
Required Breaker	20A
Accessory Power Outputs	12V DC and 24V DC
Limit System	Programmable Virtual Limits
Battery Backup	Built-In, Minimum 100 Cycles
Operating Temperature	-4°F to 165°F (-20°C to 74°C)
Dimensions	14.5" W × 19" D × 25.5" H
Chain Height	7.5"
Shipping Weight	152 lbs
Drive Chain	#40 Nickel-Plated
UL 325 Usage Classes	I, II, III, IV
Manufacturer Warranty	5-Year Limited Warranty

Fail-Safe Operation & Emergency Gate Access

The defining advantage of the MAX 1200 FS PRO is its fail-safe, back-drivable design, which distinguishes it from conventional commercial slide gate operators.

During normal operation, the operator's dynamic magnetic braking system helps hold the gate securely in position and resist unauthorized movement. When the braking system is released through an authorized command, the gate can be manually pushed to provide access.

The operator supports several release methods:

• Local Manual Release: A keyed local release switch allows authorized personnel to disengage the braking system.

• Remote Manual Release: A compatible keypad, external key switch, or dry-contact relay can activate the release function.

• Power-Loss Accessibility: Configurable backup and release functions support emergency access when AC power or battery power is unavailable.

• Emergency Access Integration: Compatible control inputs allow integration with appropriately configured emergency access systems.

The electronic release function can temporarily disengage the braking system for approximately 15 minutes before returning to normal operation, according to the manufacturer's operating configuration.

This fail-safe design makes the MAX 1200 FS PRO particularly valuable for gated communities, commercial properties, and facilities where authorized manual gate access is an important operational requirement.

Important: Fail-safe operation does not mean the gate automatically opens under every power-loss condition. Actual gate behavior depends on programmed battery backup settings, release configuration, and installation conditions.

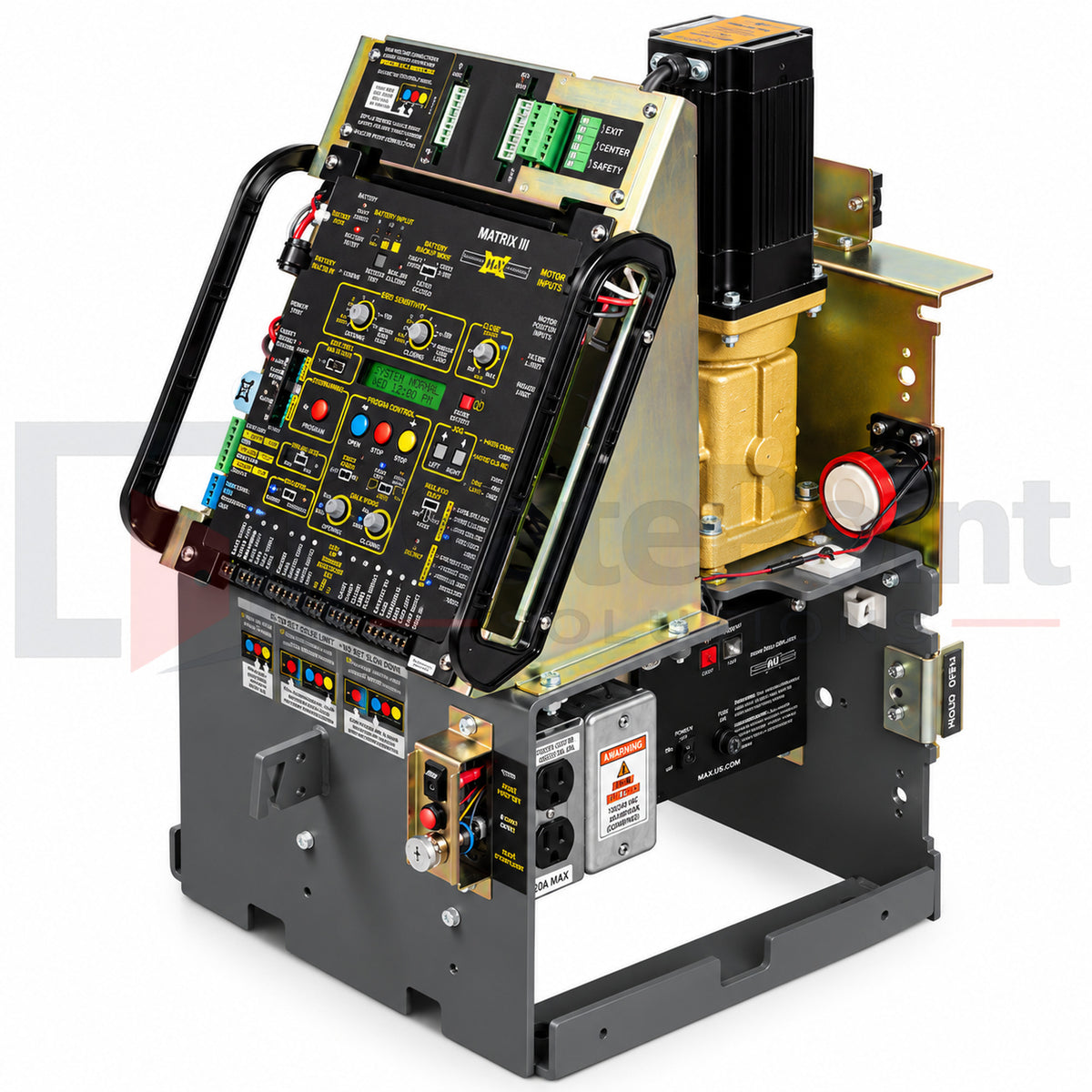

High-Efficiency Brushless DC Motor & Direct-Drive Gearbox

The MAX 1200 FS PRO utilizes an advanced 24V brushless DC motor designed for efficient, continuous-duty commercial gate operation.

Integrated Hall Effect sensing provides precise motor position feedback, allowing the Matrix III controller to monitor gate travel and regulate acceleration, deceleration, and stopping performance.

Maximum Controls' brushless motor technology is designed for extended service life, with manufacturer-published ratings reaching approximately 35,000 operating hours or 6 million cycles under specified conditions.

The motor is paired with a Size 50 cast iron gearbox featuring a 20:1 reduction ratio, specifically configured for the MAX 1200 FS PRO's back-drivable fail-safe operation.

The heavy-duty gearbox incorporates bronze gearing, sealed shafts, high-speed bearings, and synthetic oil lubrication to provide reliable performance across demanding operating conditions.

Unlike operators that rely on internal belts and pulleys, the direct-drive configuration minimizes mechanical maintenance points while maintaining precise motor control.

Matrix III Intelligent Gate Control System

The MAX 1200 FS PRO incorporates Maximum Controls' advanced Matrix III controller, providing extensive programming, diagnostics, and security management capabilities.

Its adaptive DSP motor control technology continuously monitors gate movement to provide smooth acceleration, controlled deceleration, accurate positioning, and intelligent obstruction detection.

Programmable functions include:

• 16 selectable operating speed settings

• Independent opening and closing speed adjustments

• Adjustable ramp-up and ramp-down profiles

• Automatic closing timer adjustable from 0 to 60 seconds

• Programmable partial gate opening

• Electronic reversing detection with adjustable sensitivity

• Primary and secondary operator coordination

• Anti-tailgating and vehicle loop management

• Gate disable and tamper monitoring

• Magnetic lock relay control

• Gate status and alarm outputs

• LCD fault reporting and diagnostic information

• Event history logging for up to 8,000 events

These advanced controls provide flexibility for commercial installers while simplifying ongoing troubleshooting and maintenance.

Integrated Battery Backup & Solar-Ready Power Management

The MAX 1200 FS PRO includes a built-in battery backup system designed to maintain gate operation during interruptions to the primary electrical supply.

The manufacturer specifies a minimum of 100 backup operating cycles under designated conditions, with actual performance varying according to gate weight, travel distance, battery condition, and environmental factors.

Three selectable backup modes allow installers to configure how the operator responds to AC power loss, including options that support emergency access requirements.

Additional power management features include:

• Switchable 115V / 230V AC input

• Built-in 12V DC and 24V DC accessory outputs

• Intelligent energy-saving functionality

• Solar-ready battery regulation

• Remote low-voltage power supply capabilities

• Motor overcurrent protection

• Lightning and surge protection across 44 channels

For locations where standard electrical service is difficult or costly to install, compatible remote power and solar configurations provide additional installation flexibility.

Advanced Security & Access Control Features

Despite its fail-safe manual release capabilities, the MAX 1200 FS PRO incorporates extensive security functions designed to help protect controlled-access entrances.

Dynamic Magnetic Braking: Helps resist unauthorized gate movement when the operator is secured.

Tamper Detection: Integrated alarm functions can respond to unauthorized gate movement or attempted forced entry.

Anti-Tailgating Protection: Programmable vehicle loop management helps control unauthorized vehicle access.

Partial Gate Opening: Allows programmed partial opening for routine vehicle traffic while preserving full-opening capabilities for emergency access.

Magnetic Lock Control: Programmable relay outputs support compatible external locking devices.

Gate Status Monitoring: Dedicated outputs allow integration with compatible building security and monitoring systems.

Optional Chain-Drop Detection: Compatible monitoring equipment can provide additional security against unauthorized chain disengagement.

Safety & UL 325 Compliance

The MAX 1200 FS PRO is designed for UL 325 Class I, II, III, and IV vehicular gate applications when installed according to the manufacturer's instructions.

Its safety-related functions include adaptive obstruction sensing, electronic reversing detection, dynamic magnetic braking, motor overcurrent protection, and programmable alarm outputs.

The operator supports monitored entrapment protection devices, including compatible photoelectric sensors and sensing edges.

Important: Required external monitored entrapment protection devices must be installed and configured according to the manufacturer's instructions and applicable UL 325 requirements. Built-in obstruction sensing does not replace required external safety devices.

Ideal Applications

The Maximum Controls MAX 1200 FS PRO is well suited for:

• High-traffic gated communities and HOA entrances

• Commercial parking facilities

• Apartment complexes and multi-tenant properties

• Self-storage facilities and secured storage yards

• Industrial warehouses and distribution centers

• Commercial vehicle entrances

• Municipal and institutional properties

• Facilities requiring authorized manual gate release

• Access-controlled locations with emergency vehicle entry requirements

Included Equipment & Available Accessories

Manufacturer-Listed Standard Equipment:

• Maximum Controls MAX 1200 FS PRO Slide Gate Operator

• Integrated Matrix III control system

• Standard lockable operator cover

• Built-in battery backup system

• 25 ft of #40 nickel-plated drive chain

• Drive chain mounting brackets

• Programmable virtual limit system

Optional Accessories (Sold Separately):

• Heavy-duty steel operator cover

• Magnetic limit sensors and chain magnets

• Compatible monitored photoelectric safety sensors

• Monitored safety edge systems

• Vehicle loop detectors

• Keypads, card readers, and access control equipment

• MAX Cell Hub for compatible MAX Cloud connectivity

• Optional chain-drop monitoring equipment

• Compatible solar power accessories

Installation Note: The MAX 1200 FS PRO is intended for vehicular sliding gates. Proper gate construction, free movement, physical stops, entrapment protection, and electrical installation are essential for safe operation. Installation should be performed by qualified gate automation personnel.

Warranty: Maximum Controls' 5-year limited manufacturer warranty applies. Battery coverage and exclusions are governed by the manufacturer's current warranty terms.
