Description

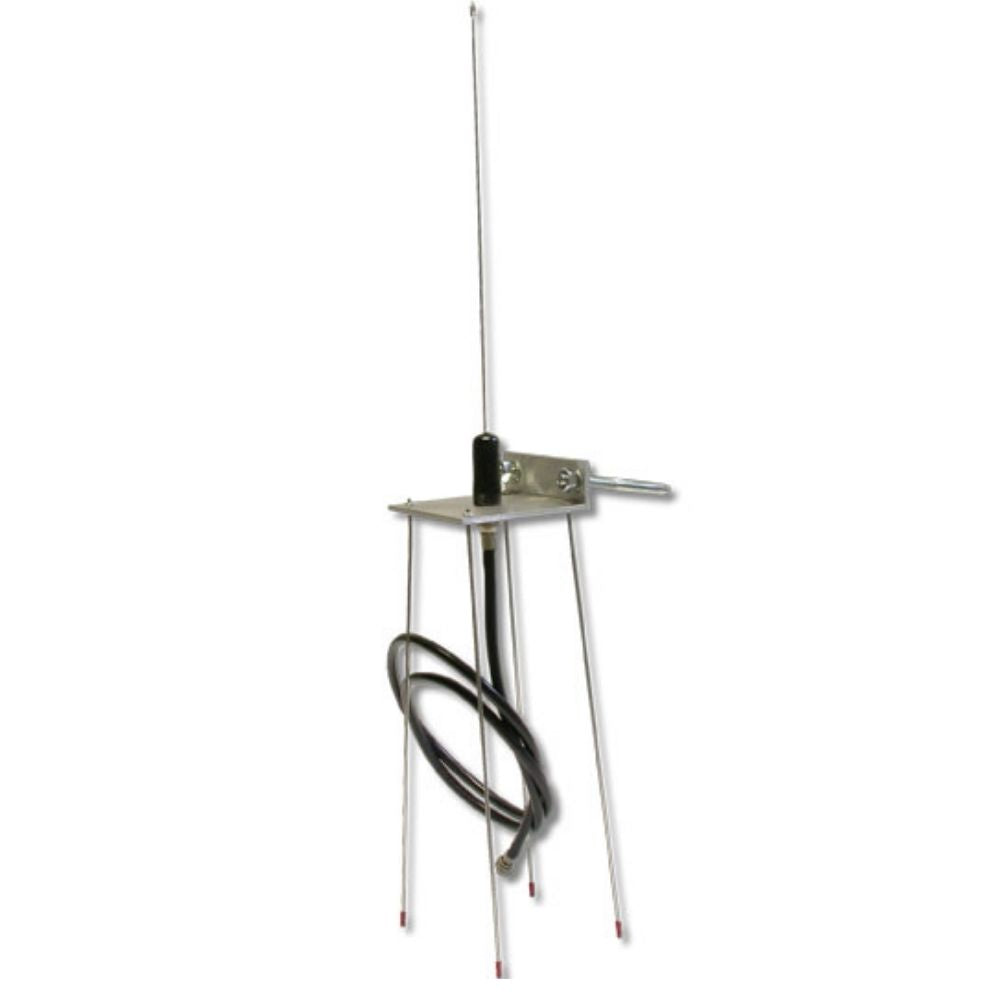

The Linear EXA-1000 Omni-Directional Remote Antenna is designed to improve wireless signal reception and increase operating range for compatible Linear access control receivers. Ideal for installations where receivers are located in areas with poor signal reception, the EXA-1000 helps maximize transmitter performance and system reliability.
Engineered for versatile installation, the EXA-1000 connects directly to the F-connector found on many Linear receivers and can provide a typical range improvement of 20% to 30% depending on installation conditions. The omni-directional design allows the antenna to receive signals from all directions, making it an excellent solution for gate operators, parking access systems, commercial facilities, and residential communities.
Installation is simple and flexible. A supplied 2-inch U-bolt allows mounting to posts or pipes, while the integrated base plate can be attached directly to walls, beams, or other vertical surfaces. For optimal performance, the antenna should be mounted as high as practical above ground level.
Key Features
- Enhances radio reception and transmitter range
- Designed for use with compatible Linear receivers
- Typical range improvement of 20%–30%
- Omni-directional design receives signals from all directions
- Connects directly to receiver F-connector
- Multiple mounting options for flexible installation
- Includes mounting hardware
- Durable outdoor-ready construction
Benefits
- Improves wireless system reliability
- Helps overcome poor signal reception areas
- Reduces missed transmissions and access issues
- Supports longer operating distances
- Ideal for gate access, parking control, and remote entry systems
- Easy installation with versatile mounting options
Applications
- Automatic gate operators
- Access control systems
- Parking lot entry systems
- Commercial properties
- Industrial facilities
- Apartment communities
- Gated residential developments
- Remote receiver installations
Installation Options
- Post mounting using included U-bolt
- Pipe mounting
- Wall mounting
- Wood beam or brace mounting
- Elevated installations for maximum range performance
Specifications
- Model: EXA-1000
- Type: Omni-Directional Remote Antenna
- Compatibility: Many Linear receivers with F-connector input
- Mounting Hardware: Included
- Mounting Style: Post, pipe, wall, or beam
- Part Number: AAE00198
Package Includes
- Linear EXA-1000 Omni-Directional Remote Antenna
- Mounting Base Assembly
- 2-Inch U-Bolt Mounting Hardware
- Installation Components
Note: Actual range improvements vary based on receiver type, antenna placement, terrain, environmental conditions, and surrounding structures. For best performance, mount the antenna as high as possible and away from large metal obstructions.
