Description

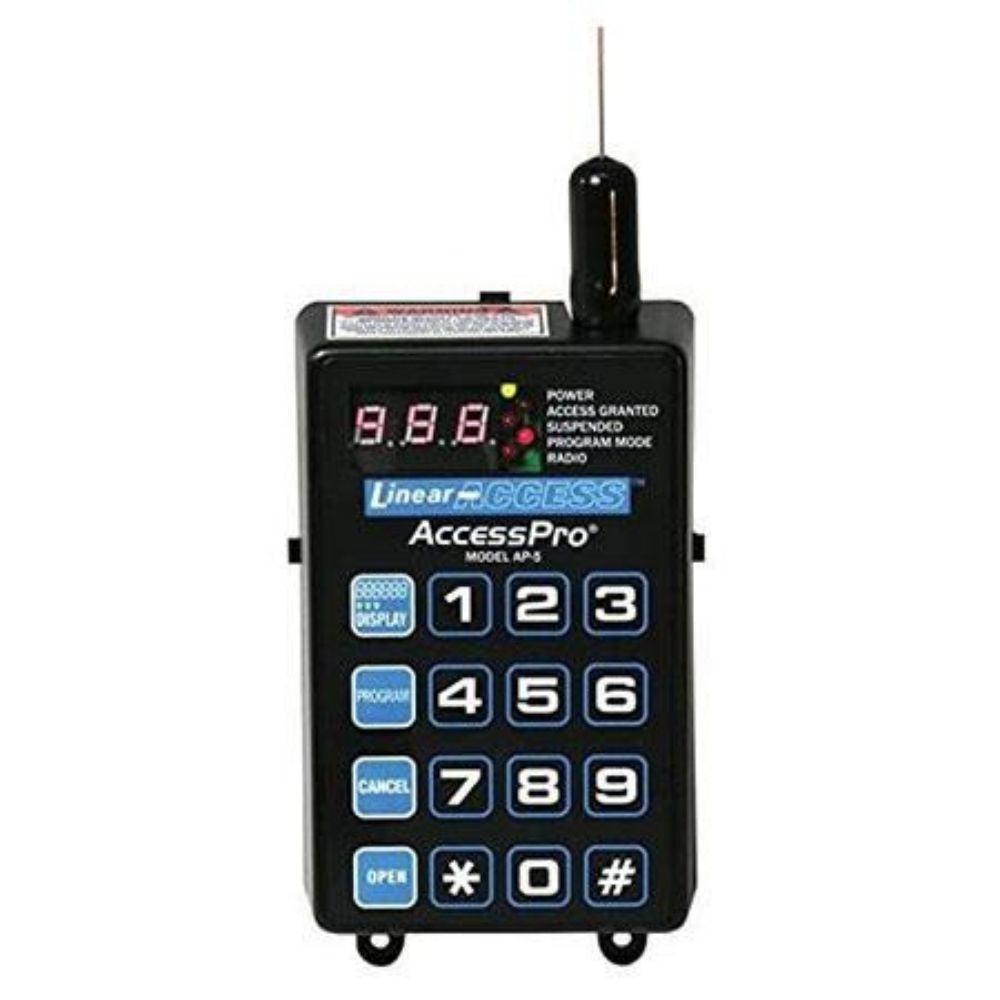

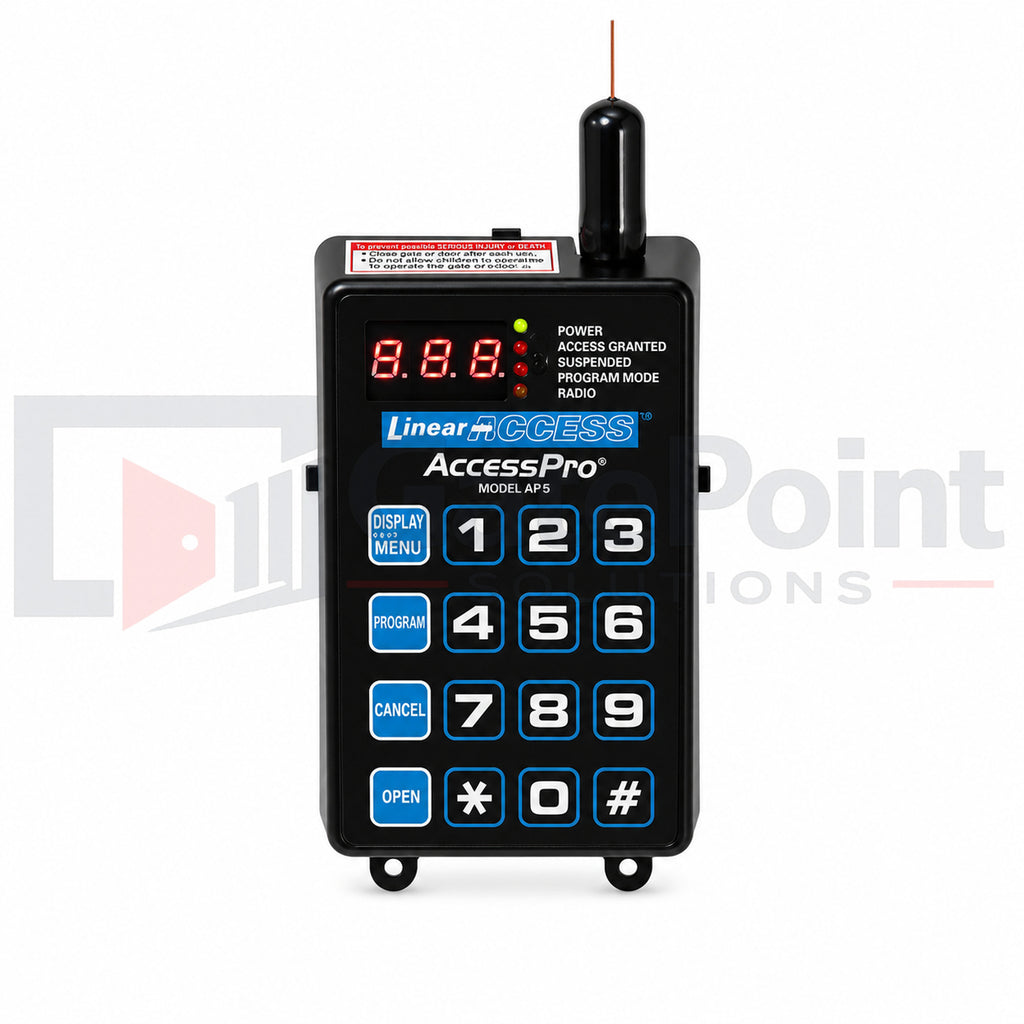

The Linear AP-5 Wireless Access Controller is a versatile access control solution designed to manage up to two gates, doors, mag-locks, barrier gates, or automatic gate operators. Its compact wireless design makes installation simple while providing dependable performance for residential, commercial, industrial, and perimeter security applications.
Featuring a built-in high-gain superheterodyne receiver, the AP-5 can receive transmitter signals from distances up to 500 feet under typical conditions. For installations requiring extended range, the controller is compatible with the optional Linear EXA-2000 directional antenna.
The AP-5 supports up to 480 Linear MegaCode® transmitters and up to 238 programmable entry codes, making it ideal for communities, apartment complexes, commercial facilities, parking areas, and gated properties. Flexible relay operation allows timed, latch-on, latch-off, or toggle activation to accommodate a wide variety of access control requirements.
The controller also supports MGT safety edge transmitters for entrapment protection, continuously monitoring transmitter status, tamper signals, and low-battery conditions to enhance system reliability and safety.
Key Features
- Controls up to two gates, doors, locks, or operators
- Built-in high-gain superheterodyne receiver
- Supports up to 480 Linear MegaCode® transmitters
- Stores up to 238 programmable entry codes
- Wireless access control operation
- Compatible with MGT safety edge transmitters
- Timed, latch, latch-off, and toggle relay modes
- Open request inputs for push buttons and key switches
- Monitors transmitter status, tamper alerts, and low-battery signals
- Optional EXA-2000 antenna support for extended range
Benefits
- Simplifies access control installation
- Reduces wiring requirements
- Supports large user populations
- Flexible programming for various applications
- Improves safety with monitored safety edge transmitters
- Reliable operation for residential and commercial properties
Applications
- Automatic gate systems
- Barrier gate control
- Commercial access control
- Apartment communities
- Industrial facilities
- Parking lot access
- Mag-lock and electric lock control
- Perimeter security systems
Technical Specifications
- Model: AP-5
- Capacity: Up to 2 Doors or Gates
- Wireless Range: Up to 500 feet (typical)
- Power Input: 12–24 VAC or DC
- Relay Outputs: Two Form C relays
- Relay Rating: Up to 1 Amp per output
- Supported Transmitters: Up to 480 MegaCode® transmitters
- Programmable Entry Codes: Up to 238
- Compatibility: Linear MegaCode® transmitters and MGT safety edge transmitters
Package Includes
- Linear AP-5 Wireless Access Controller
- Installation Documentation
Note: Designed for use with compatible Linear MegaCode® transmitters, safety edge transmitters, and access control devices. Verify compatibility prior to installation.
