Description

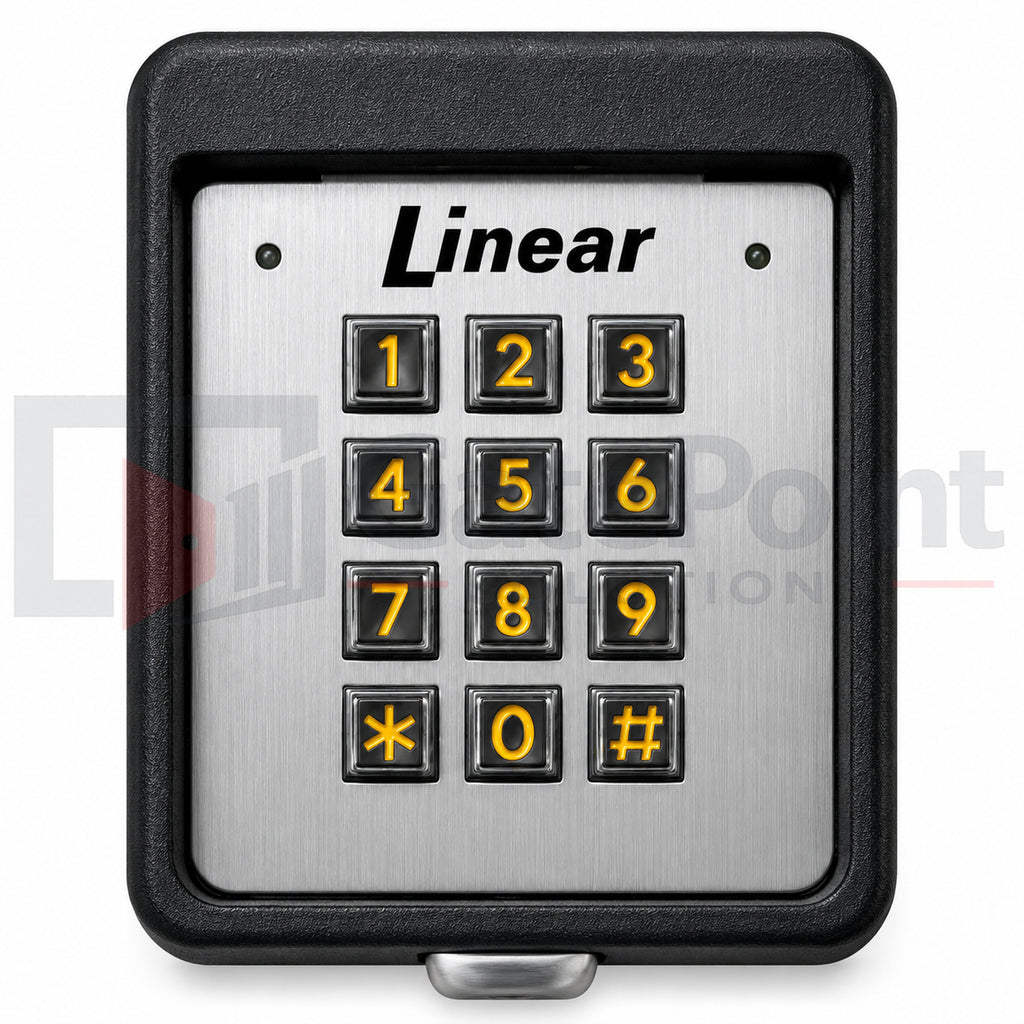

The Linear AK-11 Exterior Digital Keypad is a rugged, self-contained access control solution designed for demanding commercial, industrial, and high-traffic environments. Built with a durable cast aluminum enclosure, the AK-11 provides reliable keyless entry control for gates, doors, parking facilities, warehouses, office buildings, hospitals, airports, and other secure access applications.
Supporting up to 480 programmable user codes ranging from one to six digits, the AK-11 offers flexible access management while allowing unique programming options for individual users. The system features two Form-C relay outputs and two solid-state open collector outputs, making it suitable for controlling multiple access points and auxiliary devices.
Advanced security and monitoring features include timed anti-passback, keypad lockout protection, request-to-exit input, door sense input, inhibit input, and alarm shunt output. Dual LED indicators provide clear system status feedback, while programmable courtesy lighting illuminates the keypad for enhanced visibility during nighttime operation.
Designed for both indoor and outdoor installations, the AK-11 mounts easily to walls, pedestals, gates, or access control posts, making it an ideal solution for professional access control systems.
Key Features
- Self-contained standalone access control keypad
- Supports up to 480 programmable entry codes
- User codes from 1 to 6 digits
- Two Form-C relay outputs
- Two solid-state open collector outputs
- Four independent programmable outputs and timers
- Unique programming options for individual entry codes
- Dual LED system status indicators
- Request-to-exit input
- Door sense input
- Inhibit input
- Alarm shunt output
- Timed anti-passback protection
- Keypad lockout feature
- Programmable keypad courtesy lighting
- Tactile and audible user feedback

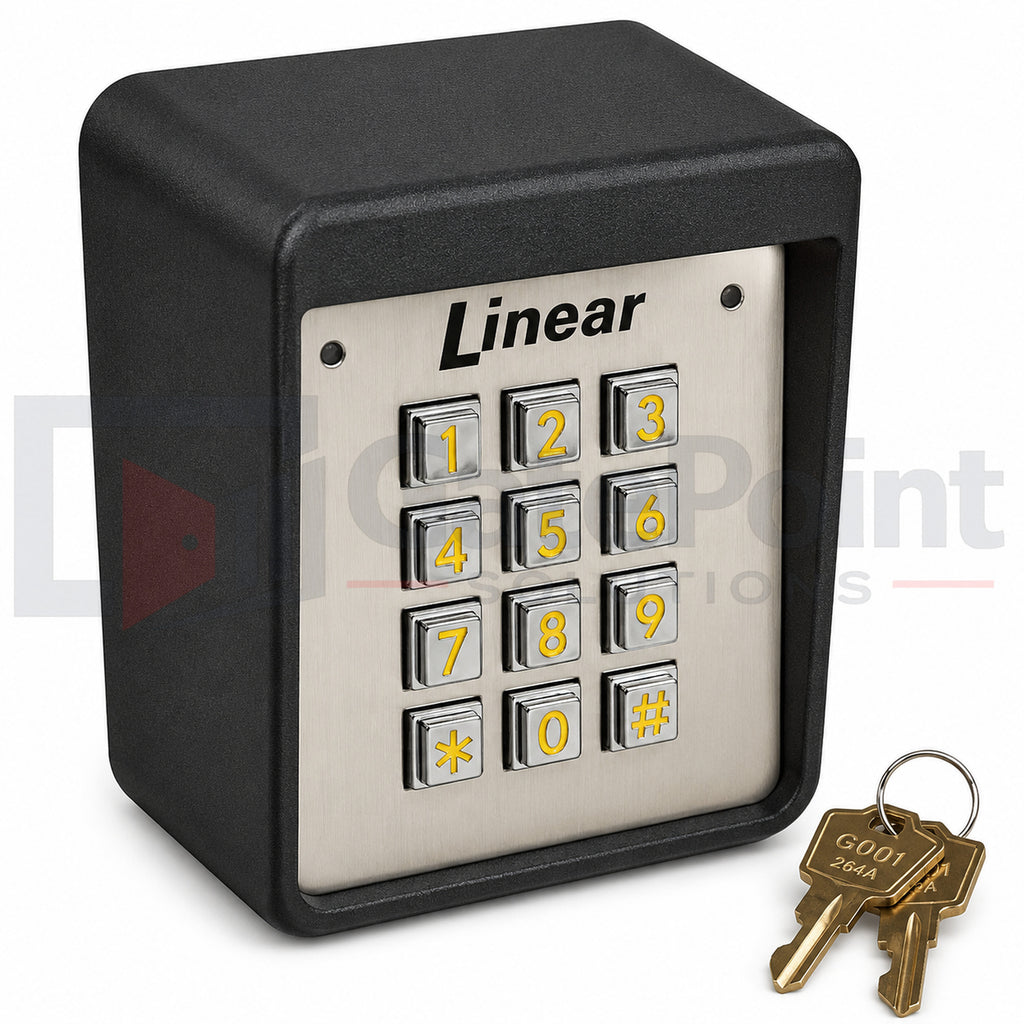

- Keylock-secured enclosure
Benefits
- Eliminates the need for physical keys or credentials
- Ideal for high-traffic access control applications
- Flexible multi-output control for gates, doors, and auxiliary equipment
- Advanced security features help prevent unauthorized access
- Durable weather-resistant construction for outdoor installations
- Supports large user databases for commercial facilities
- Easy management of multiple access levels and entry points
Applications
- Automatic gate systems
- Commercial buildings
- Office complexes
- Warehouses
- Hospitals
- Airports
- Parking facilities
- Industrial properties
- Apartment communities
- Secured perimeter entrances
Technical Specifications
- Model: AK-11
- Type: Exterior Digital Access Control Keypad
- User Capacity: Up to 480 Codes
- Code Length: 1–6 Digits
- Outputs: 2 Form-C Relays, 2 Open Collector Outputs
- Indicators: Dual LED Status Indicators
- Construction: Cast Aluminum Housing
- Mounting: Wall or Pedestal
- Dimensions: 4" W x 5.5" H x 3" D
- Part Number: ACP00748
Package Includes
- Linear AK-11 Exterior Digital Keypad
- Mounting Hardware
- Installation Instructions
Note: Compatible with a wide variety of access control, gate operator, and door control systems. Professional installation is recommended for optimal performance and security configuration.
