Description

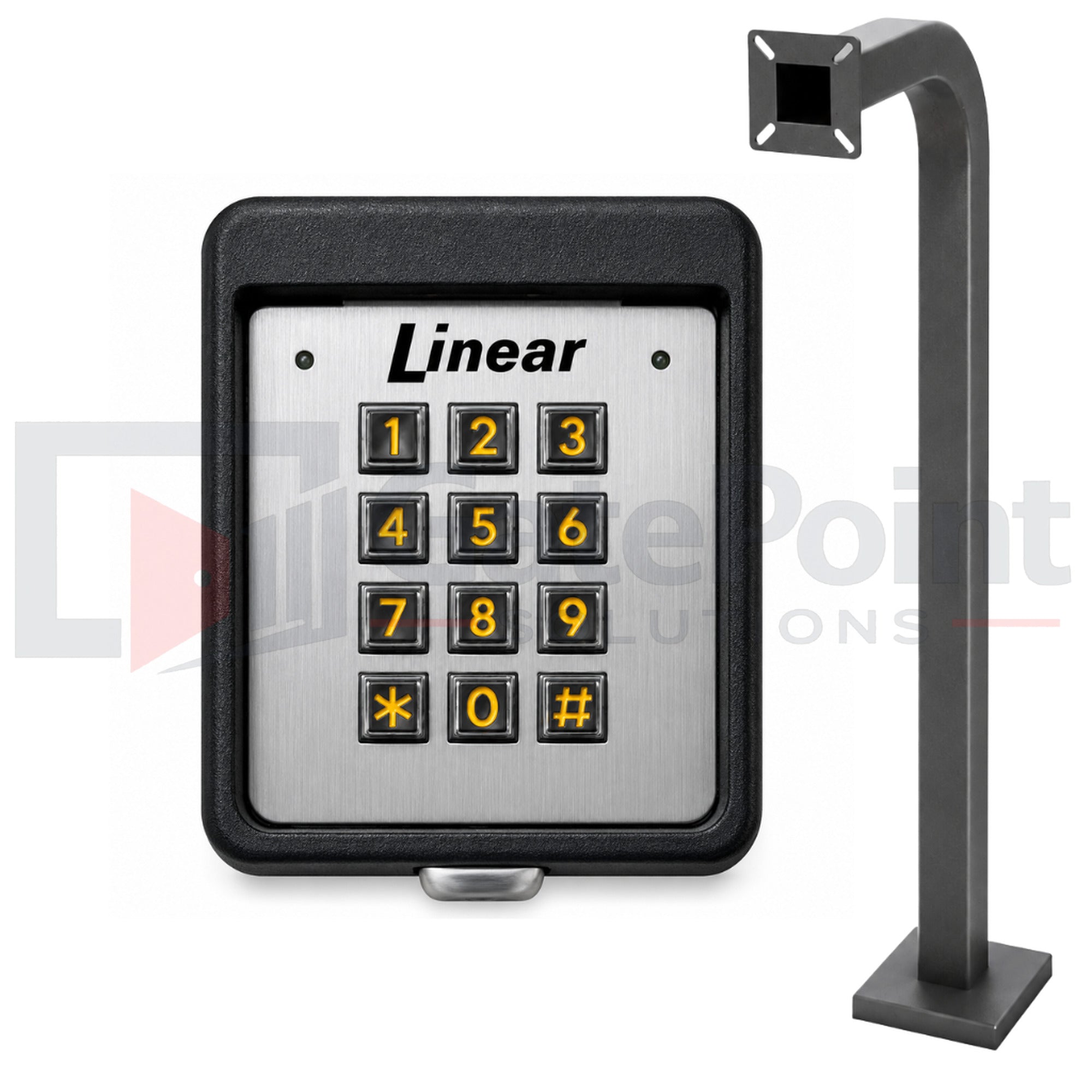

The Linear AK-11 Exterior Digital Keypad Access Control Kit with GatePoint Solutions 42" Pad-Mount Gooseneck Pedestal is a complete, ready-to-install access control solution designed for automatic gates, pedestrian entrances, commercial facilities, apartment communities, and other secured properties. This convenient kit combines the reliable Linear AK-11 weather-resistant digital keypad with a durable GatePoint Solutions 42-inch pad-mount gooseneck pedestal, providing a professional installation without the need to source components separately.
The Linear AK-11 is a standalone exterior digital keypad engineered for dependable performance in demanding environments. Supporting up to 480 programmable entry codes with 1- to 6-digit PINs, it offers flexible access control for residential, commercial, industrial, and multi-tenant applications. Four programmable outputs—including two Form-C relay outputs and two solid-state outputs—allow the keypad to operate automatic gate operators, electric strikes, magnetic locks, doors, lighting, and other access control devices.
Built with a rugged weather-resistant housing, the AK-11 is designed for long-term outdoor use. Advanced features including door sense input, request-to-exit input, inhibit input, timed anti-passback, programmable output timing, keypad lockout, and courtesy lighting provide the flexibility required for professional installations.
The included GatePoint Solutions 42-inch Pad-Mount Gooseneck Pedestal is manufactured from heavy-duty steel with a durable powder-coated finish for corrosion resistance and years of reliable outdoor service. The pedestal is designed to mount securely to an existing concrete pad, making it an excellent choice for retrofit installations or locations where pouring a new in-ground foundation is unnecessary. Its ergonomic height allows convenient vehicle access while maintaining safe clearance from moving gate systems.
Kit Includes
- (1) Linear AK-11 Exterior Digital Keypad
- (1) GatePoint Solutions 42" Pad-Mount Gooseneck Pedestal
- Mounting hardware for keypad (provided with the keypad)
Linear AK-11 Features
- Supports up to 480 programmable user codes
- Programmable 1- to 6-digit PIN codes
- Four programmable outputs
- Two Form-C relay outputs
- Two solid-state outputs
- Weather-resistant outdoor construction
- Rugged cast aluminum housing
- Door sense input
- Request-to-exit (REX) input
- Inhibit input
- Timed anti-passback capability
- Programmable output timing
- Courtesy lighting control
- Audible keypress feedback
- Tactile metal keypad
- Operates on 12–24 VAC/VDC
- Compatible with most gate operators and access control systems
Ideal Applications
- Automatic slide gates
- Swing gate operators
- Commercial buildings
- Apartment and condominium communities
- Homeowner associations (HOAs)
- Industrial facilities
- Parking lots
- Distribution centers
- Warehouses
- Schools
- Storage facilities
- Secured pedestrian entrances
Whether you're installing a new access control system or upgrading an existing gate entrance, this professionally assembled GatePoint Solutions kit delivers a durable, reliable, and installer-friendly solution. Combining the trusted performance of the Linear AK-11 with a premium pad-mounted pedestal helps reduce installation time while providing a clean, professional appearance for virtually any access control project.
