Description

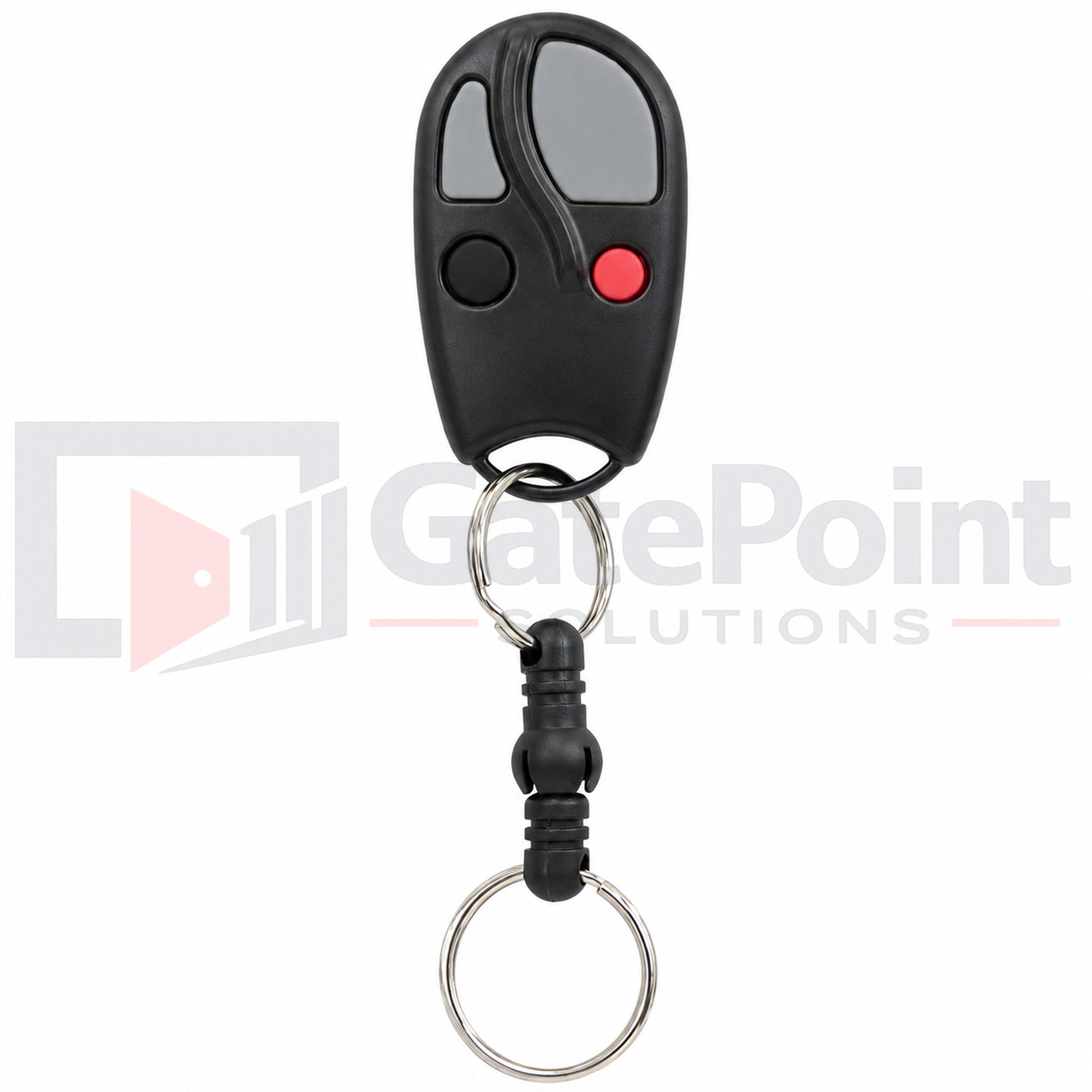

The Linear ACT-34B is a 4-channel MegaCode® block-coded key chain transmitter designed for secure wireless access control. This package includes 10 transmitters, making it ideal for gated communities, commercial properties, apartment complexes, industrial facilities, parking systems, and large-scale access control deployments.
Each ACT-34B transmitter features four independent channels, allowing users to control multiple gates, doors, garage doors, or access points from a single remote. Utilizing Linear's proven MegaCode® technology, every transmitter is factory-programmed with one of over 1,000,000 possible code combinations to help prevent unauthorized duplication and enhance system security.
The included block-coded transmitter set is programmed in sequential transmitter ID ranges, simplifying enrollment and management within compatible Linear access control systems. A convenient quick-disconnect key ring and long-life lithium batteries are included with each transmitter.
Key Features
- Includes 10 Linear ACT-34B transmitters
- 4-channel operation for controlling multiple devices
- MegaCode® security technology
- Factory block-coded sequential transmitter IDs
- Compatible with Linear access control receivers and controllers
- Quick-disconnect key ring included
- Long-life lithium batteries pre-installed
- 10-second transmission timeout protection
- Compact and durable keychain design
- Easy deployment for multi-user facilities
Technical Specifications
- Model: ACT-34B
- Frequency: 318 MHz
- Channels: 4
- Technology: MegaCode®
- Power Source: Two CR2016 lithium batteries per transmitter
- Dimensions: 1.25" W x 2.25" H x 0.48" D
- Part Number: ACP00872
- Color: Black
Benefits
- Manage multiple gates and doors with one transmitter
- Simplified programming for large installations
- Enhanced security with over 1,000,000 code combinations
- Convenient block-coded transmitter enrollment
- Long battery life and dependable performance
- Ideal for property managers, HOAs, businesses, and access control professionals
Common Applications
- Automatic gate operators
- Commercial access control systems
- Apartment and condominium communities
- Industrial facilities
- Parking access systems
- Self-storage facilities
- Multi-building campuses
Compatibility
Compatible with Linear MegaCode® receivers, controllers, gate operators, and other supported Linear access control systems operating on 318 MHz technology.
Package Includes

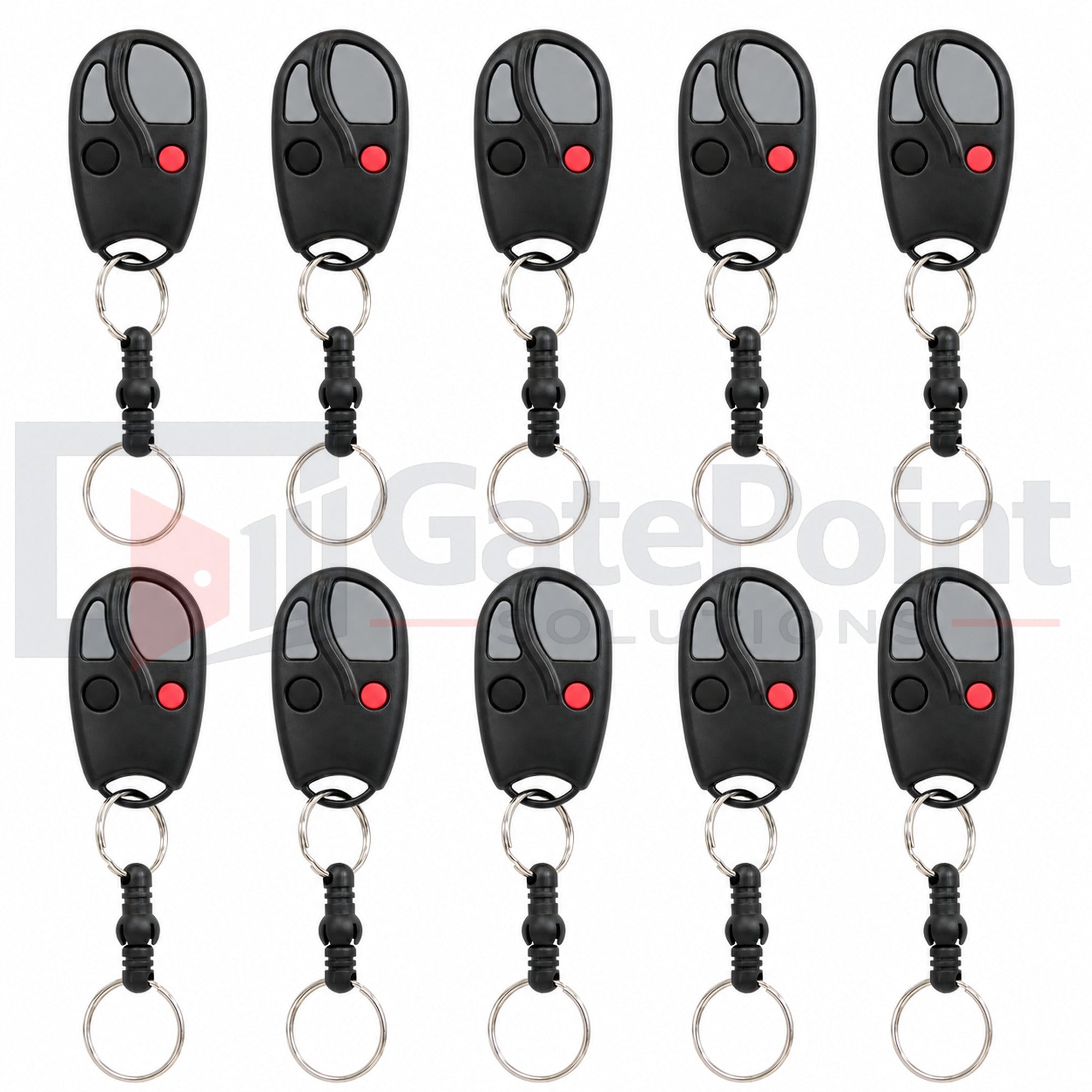

- 10 × Linear ACT-34B 4-Channel Block-Coded Key Chain Remote Transmitters
- 10 × Quick-disconnect key rings
- Pre-installed lithium batteries
Note: This listing is for a box of 10 Linear ACT-34B block-coded transmitters. Transmitters are factory-programmed with sequential transmitter ID codes for simplified enrollment into compatible Linear access control systems.
