Description

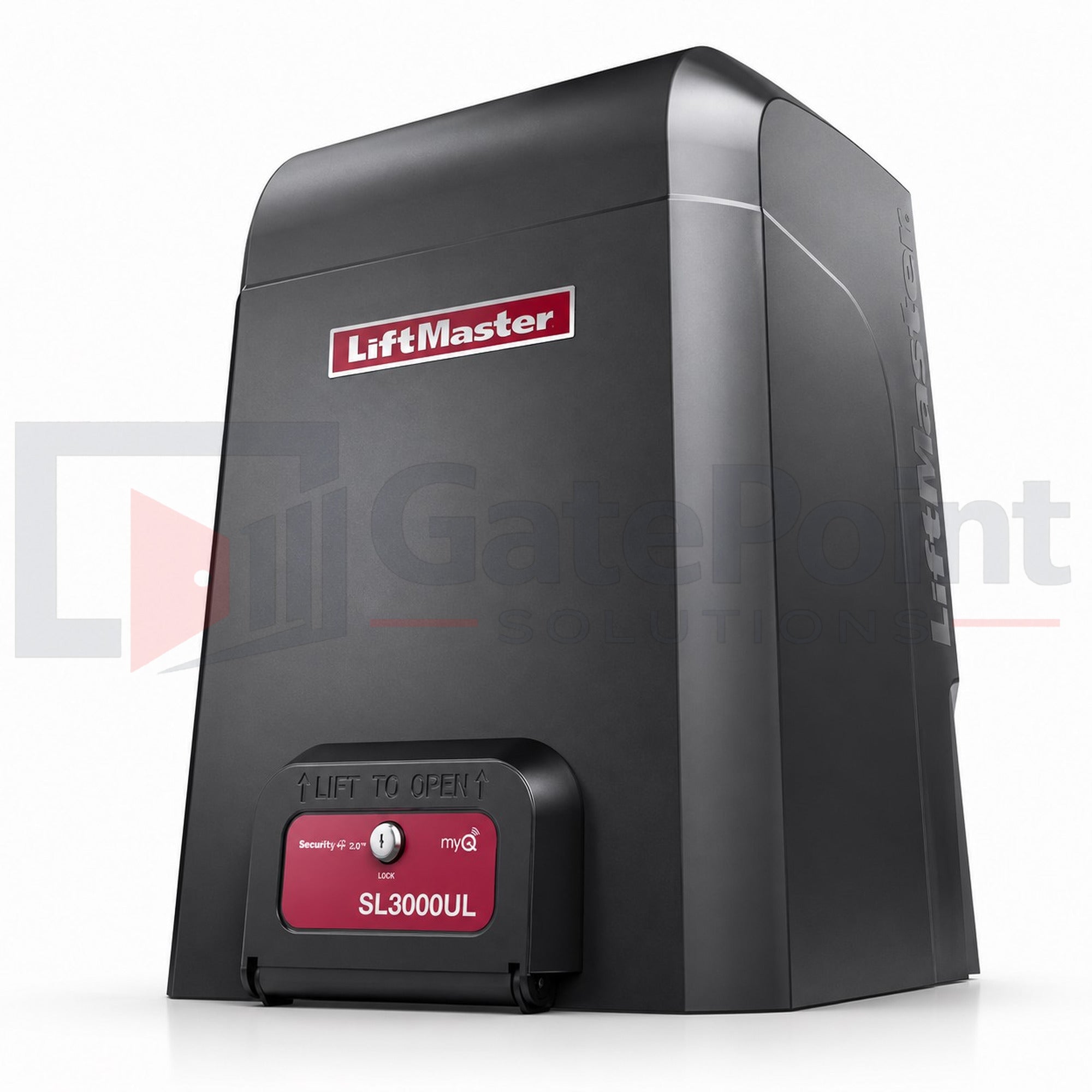

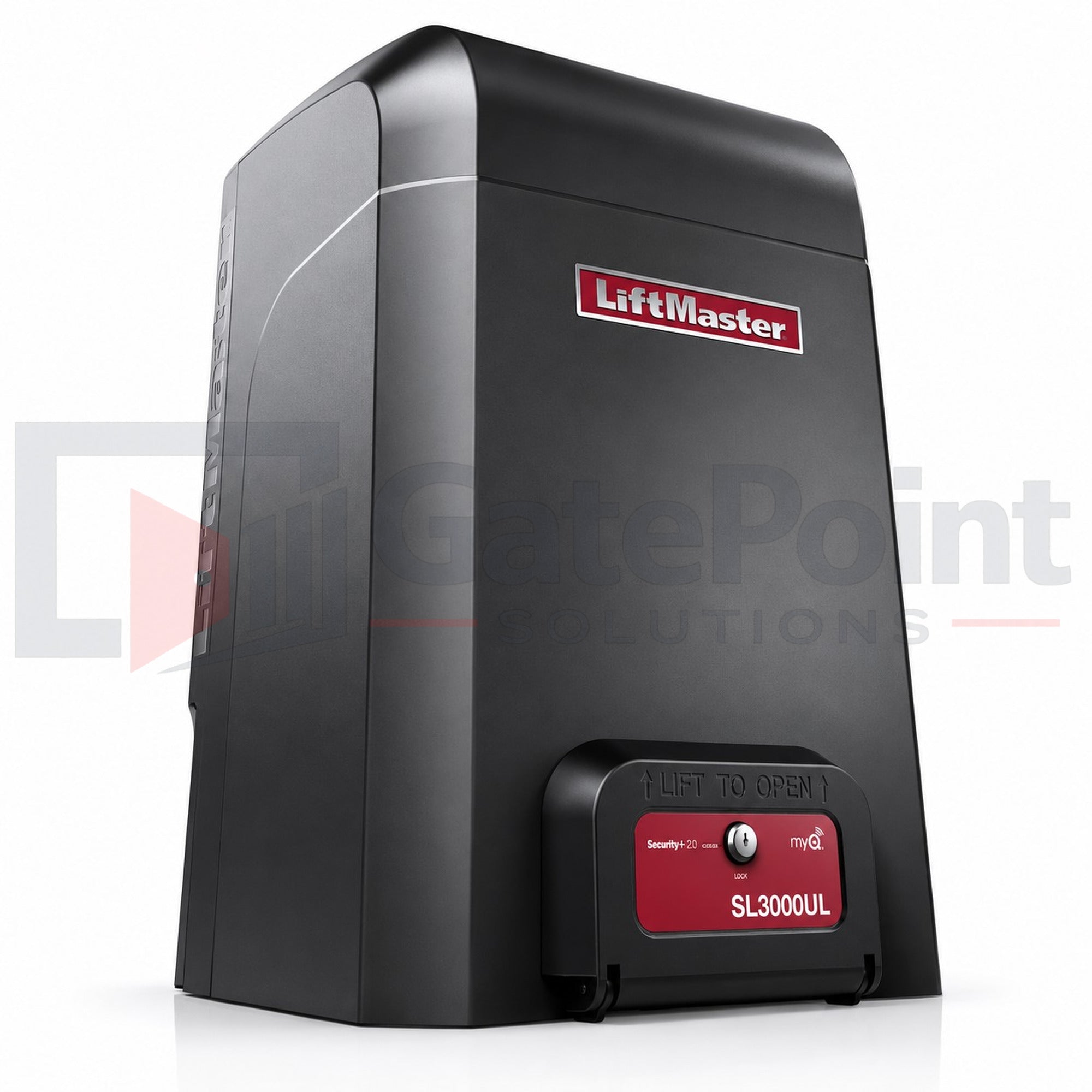

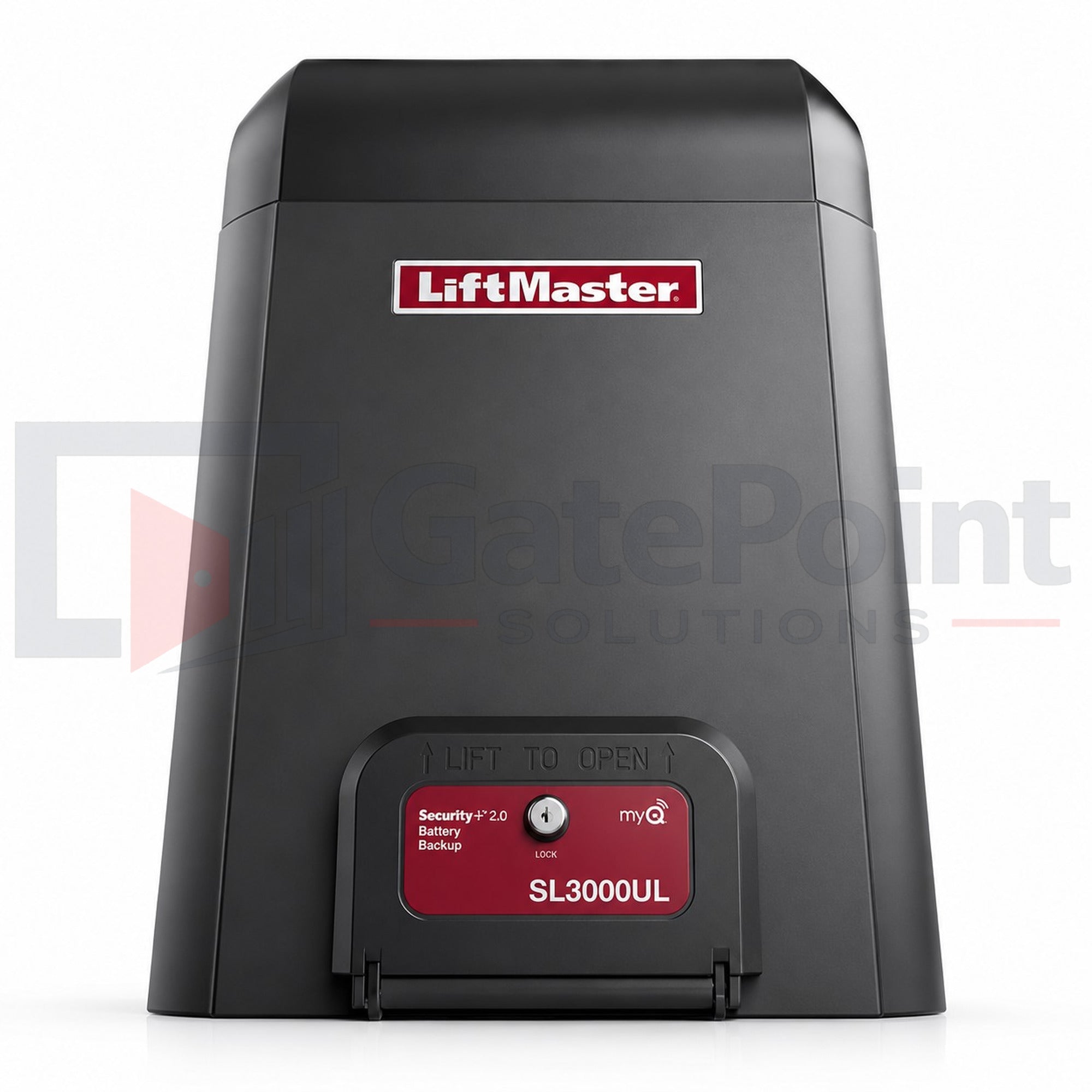

The LiftMaster SL3000501UL is a high-traffic commercial AC slide gate operator engineered for demanding continuous-duty applications requiring long-term reliability, precision gate control, and advanced access management functionality. Designed for commercial facilities, industrial properties, gated communities, warehouses, and high-cycle perimeter security applications, the SL3000501UL combines heavy-duty mechanical construction, monitored safety systems, and smart connectivity for dependable commercial gate operation.
Powered by a 1/2 HP continuous-duty motor with Class H insulation, the SL3000501UL is built for high-cycle, high-temperature operation in demanding environments. The legacy Elite heavy-duty commercial gear-driven transmission and oil-bath 30:1 wormgear reduction system deliver smooth and reliable gate performance while helping reduce component wear over time. Precision mechanical limit switches maintain accurate gate positioning throughout travel, even after manual disconnect operation, while surge suppression technology provides industrial-grade lightning and surge protection against strikes up to 50 feet away.
Integrated myQ® Technology enables secure remote monitoring and control from virtually anywhere, while wireless dual-gate communication synchronizes gate operation without the need for costly trenching between operators. Quick Close and Anti-Tailgate functionality help minimize unauthorized access opportunities in high-traffic environments.
The SL3000501UL includes monitored entrapment protection devices and is UL® Listed for Class I, II, III, and IV applications. Security+ 2.0® encrypted radio communication helps safeguard property access while providing extended remote range performance. The operator also features an inherent reversing sensor system capable of detecting obstructions and reversing or stopping gate movement when necessary. A built-in pre-motion warning alarm activates three seconds prior to gate movement for additional site safety.
Included Accessories:
LMRRUL Monitored Retro-Reflective Photo Eye: Heated monitored retro-reflective photo eye with widened beam engineered to maintain alignment; sensing range up to 50 ft.
S505AL Monitored Resistive Edge: Pressure-sensitive monitored edge designed to detect obstructions and stop or reverse gate movement.
Specifications:
- Model: SL3000501UL
- Product Type: High Traffic Commercial Slide Gate Operator
- Motor Power: 1/2 HP Continuous-Duty Motor
- Motor Insulation: Class H
- Duty Rating: Continuous Duty
- Gate Speed: 12 in. per second
- Transmission: Commercial Oil-Bath Gear-Driven Transmission
- Gear Reduction: 30:1 Wormgear Reduction
- Chain Type: #41 Black Oxide Chain (25 ft. Supplied)
- Input Voltage: 115VAC Single-Phase
- Optional 3-Phase Conversion: 208/240/480/575VAC with 3PHCONV Kit
- Accessory Power: 24VDC 500mA Output
- Auxiliary Power Outlets: 2
- Wireless Communication: Dual-Gate Wireless Synchronization
- Security Technology: Security+ 2.0® Encrypted Radio
- Remote Capacity: Up to 50 Remotes On-Board
- Monitored Safety Inputs: 3 Main Board / 3 Expansion Boards
- UL® Usage Classification: Class I, II, III, IV
- Operating Temperature: -4°F to 140°F (-20°C to 60°C)
- Operating Temperature with Heater: -40°F to 140°F (-40°C to 60°C)
- Chassis Construction: 1/4 in. Gold Zinc-Plated Steel
- Cover Material: High-Density UV-Resistant One-Piece Polyethylene
- Operator Weight: 140 lbs.
- Dimensions: 26.51 in. H × 18.14 in. W × 20.39 in. D
- Manufacturer: LiftMaster
Key Features:
- Heavy-duty commercial gear-driven transmission for high-cycle reliability
- Continuous-duty 1/2 HP motor designed for high-temperature applications
- Industrial surge and lightning suppression protection
- Precision mechanical limit switch system maintains accurate gate positioning
- myQ® enabled remote monitoring and control
- Wireless dual-gate communication eliminates trenching requirements
- Quick Close and Anti-Tailgate functionality for enhanced security
- Inherent reversing sensor detects obstructions during operation
- Pre-motion warning alarm activates before gate movement
- Manual disconnect allows gate operation during service or power loss
- Monitored safety entrapment protection devices for UL 325 compliance
- LED diagnostic display simplifies installation and troubleshooting
- Programmable auxiliary relays support expanded accessory integration
- HomeLink® compatible with supported vehicle systems
